Rear Differential Lock: Notes

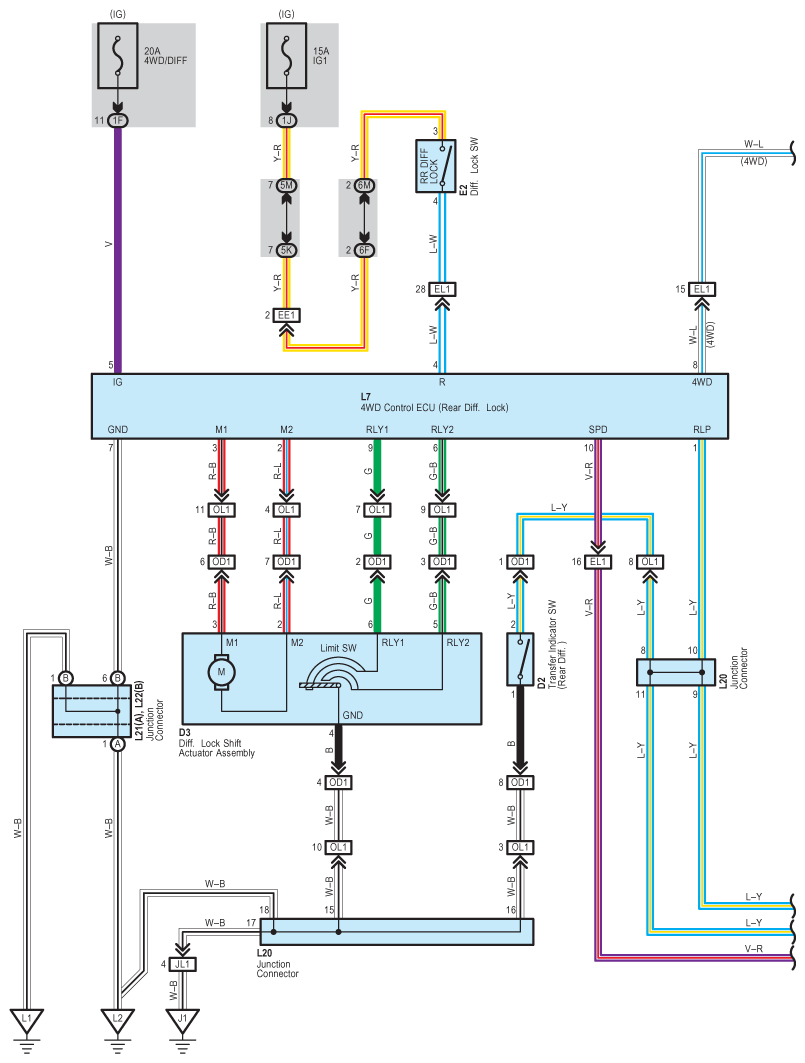

Fig 1: Rear Differential Lock System Wiring Diagram (1 Of 2)
G08843620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

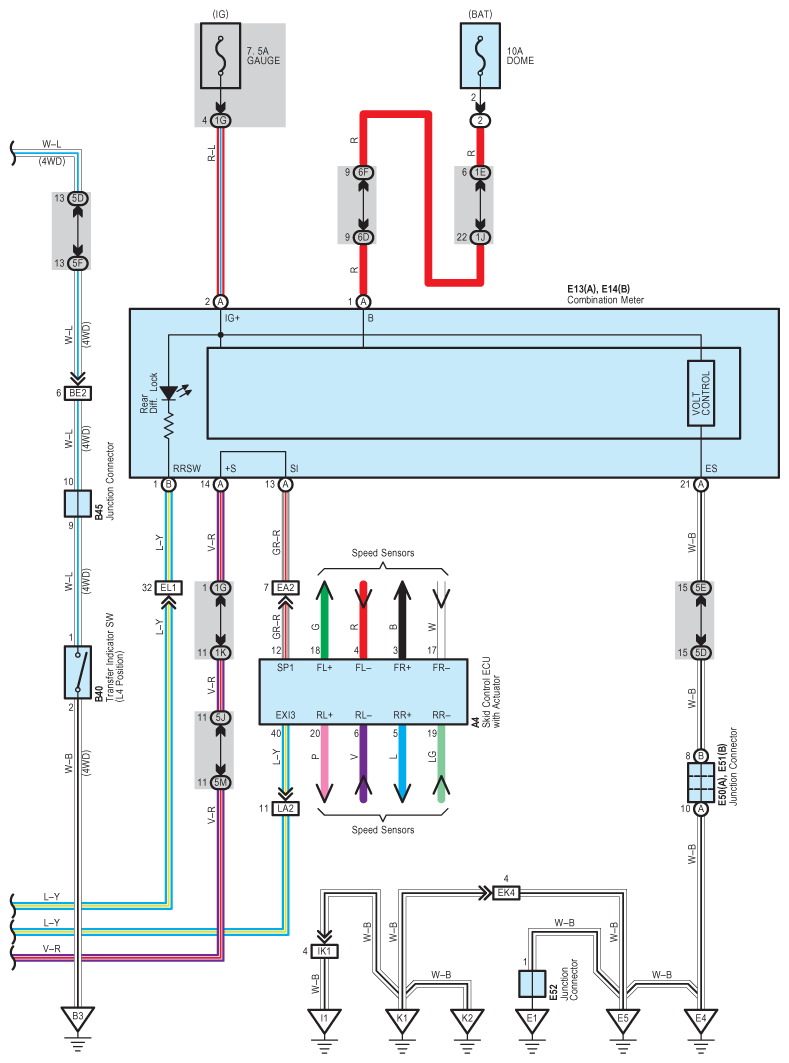

Fig 2: Rear Differential Lock System Wiring Diagram (2 Of 2)
G08843621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
