Stop Light: Notes

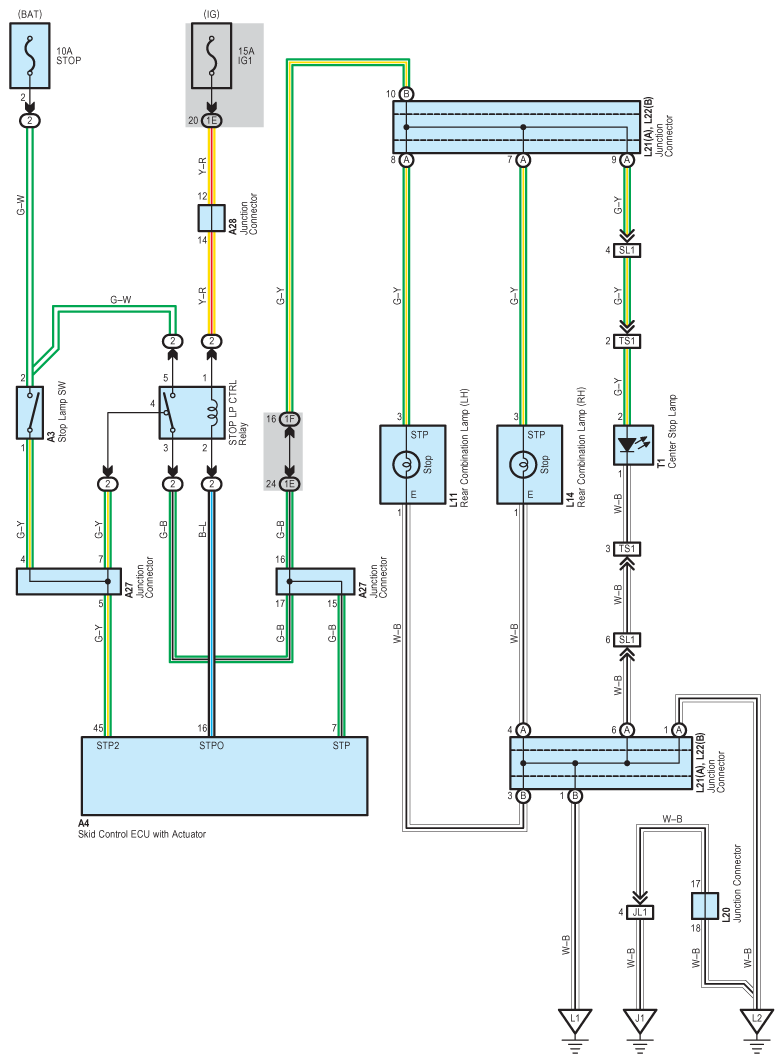

Fig 1: Stop Light System Wiring Diagram
G08843569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
