Brake Actuator: Components: Illustration

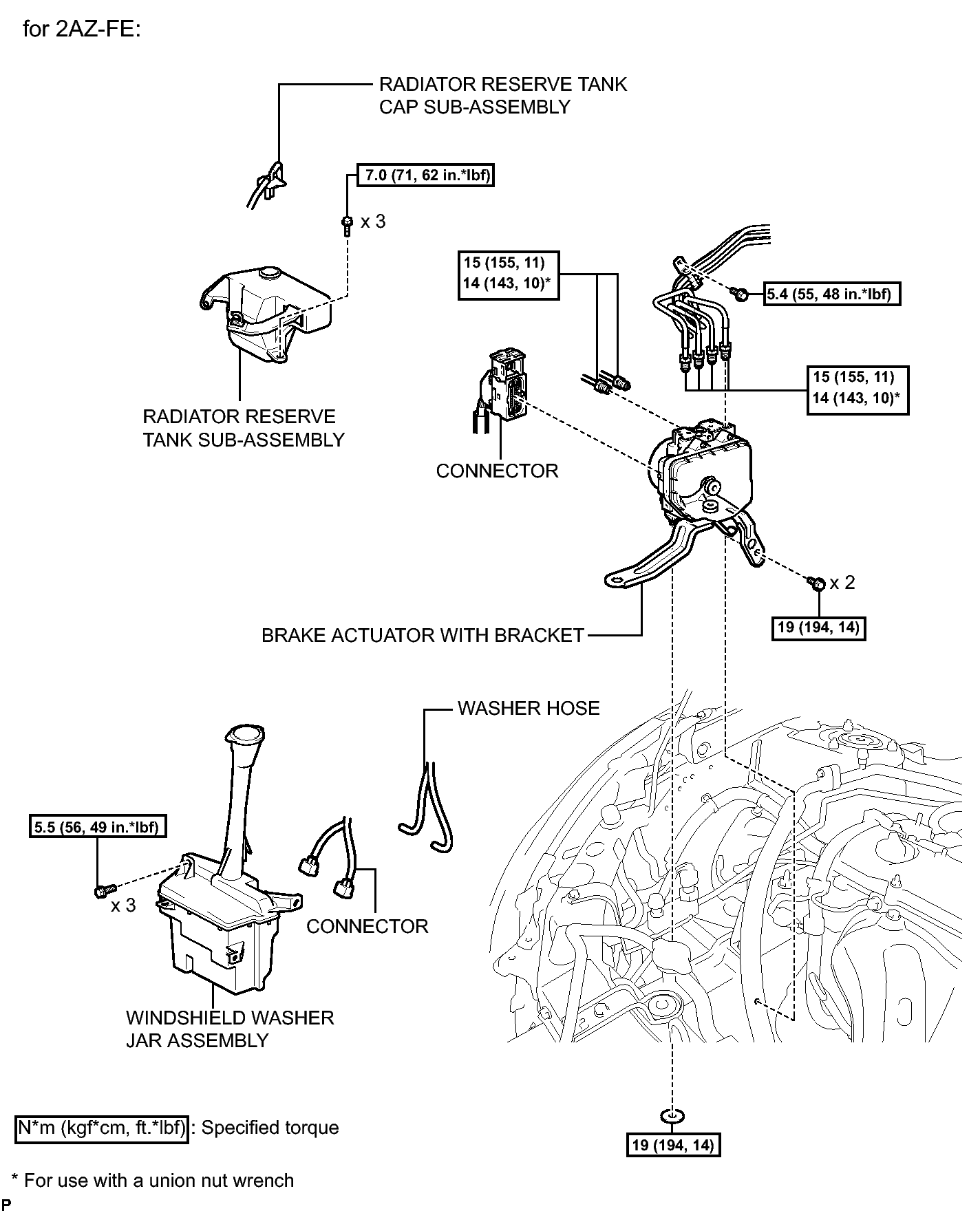

Fig 1: Identifying Brake Actuator (w/ VSC) Replacement Components With Torque Specifications (2AZ-FE) (1 Of 4)
GTY229173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

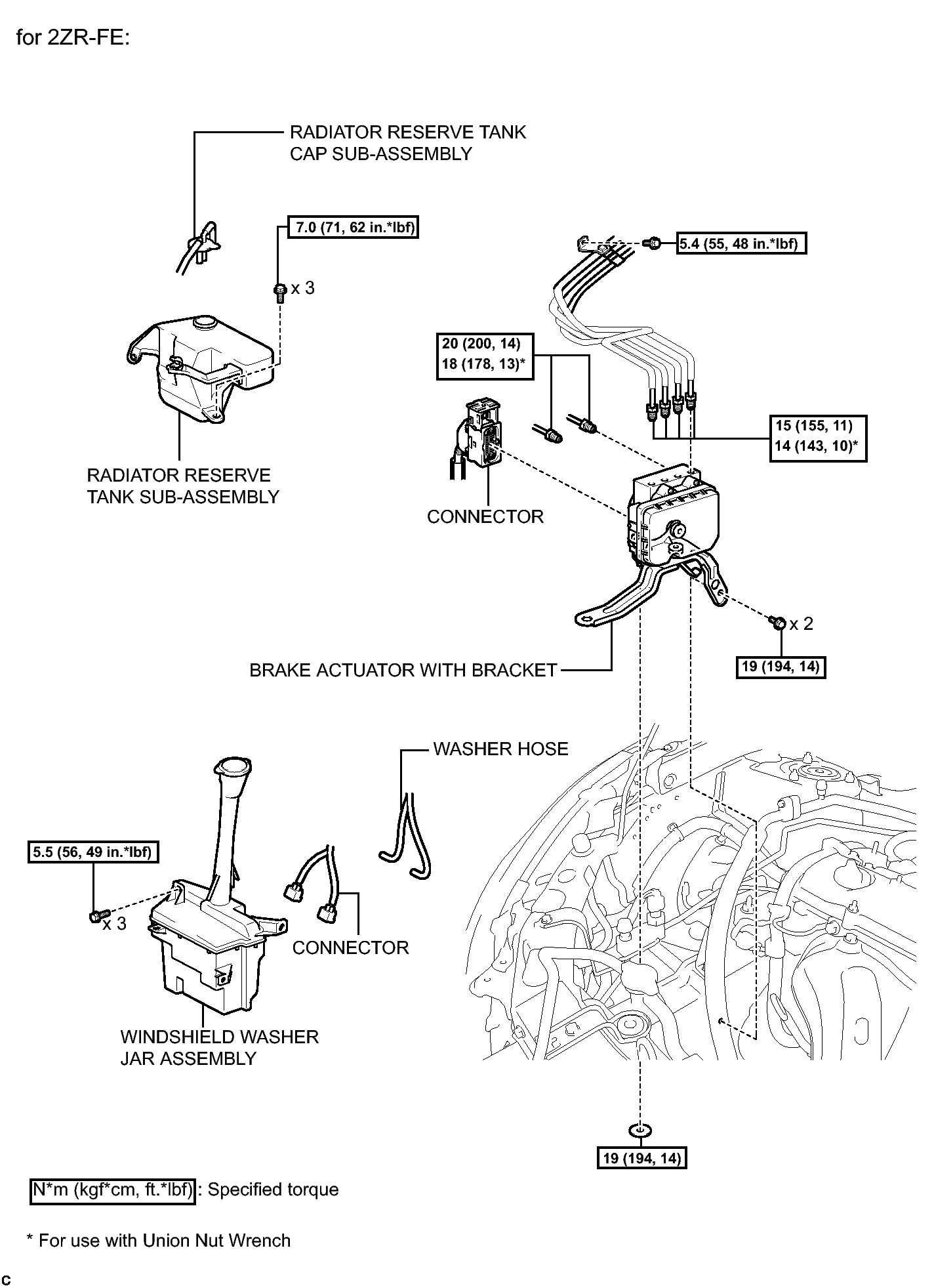

Fig 1: Identifying Brake Actuator (w/ VSC) Replacement Components With Torque Specifications (2ZR-FE) (2 Of 4)
GTY235428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

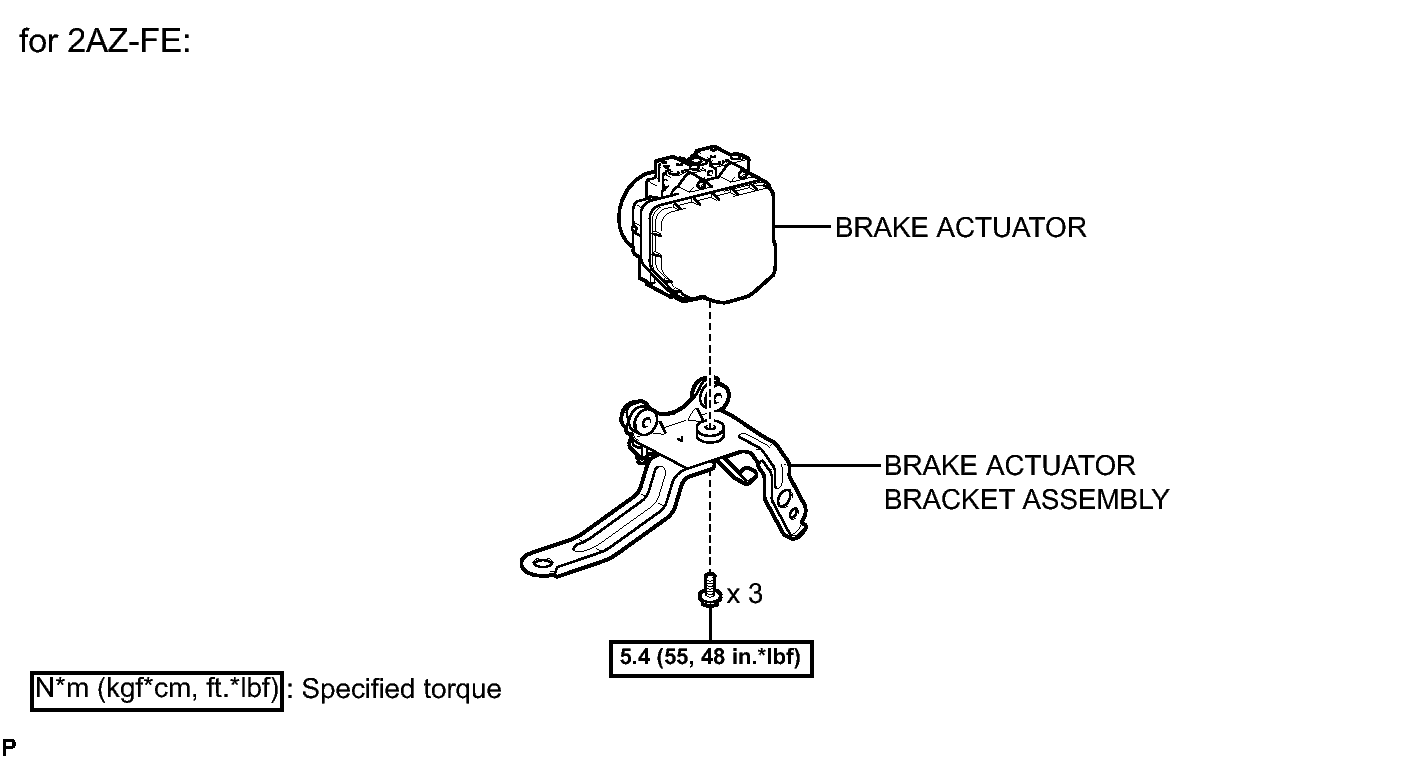

Fig 1: Identifying Brake Actuator (w/ VSC) Replacement Components With Torque Specifications (2AZ-FE) (3 Of 4)
GTY292972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

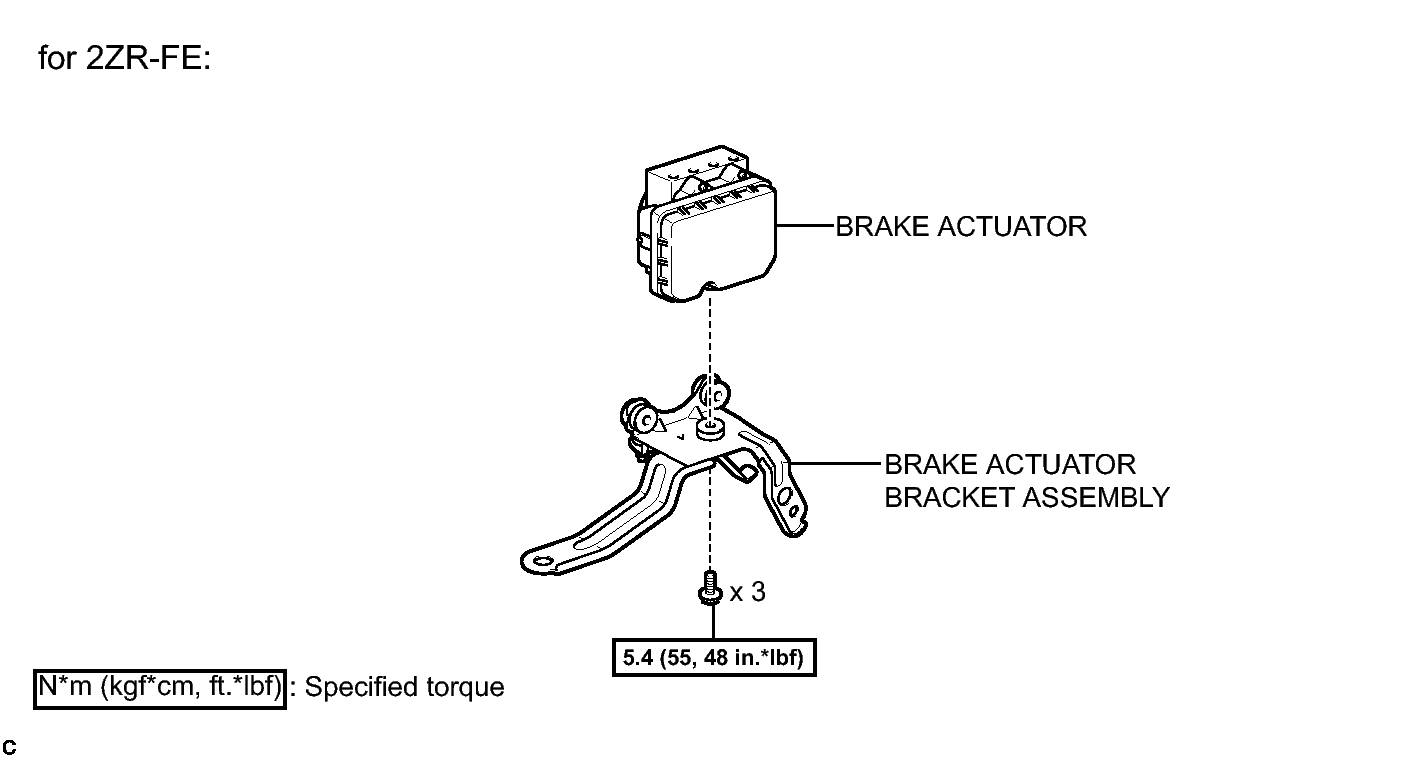

Fig 1: Identifying Brake Actuator (w/ VSC) Replacement Components With Torque Specifications (2ZR-FE) (4 Of 4)
GTY290086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
