Audio System: Notes

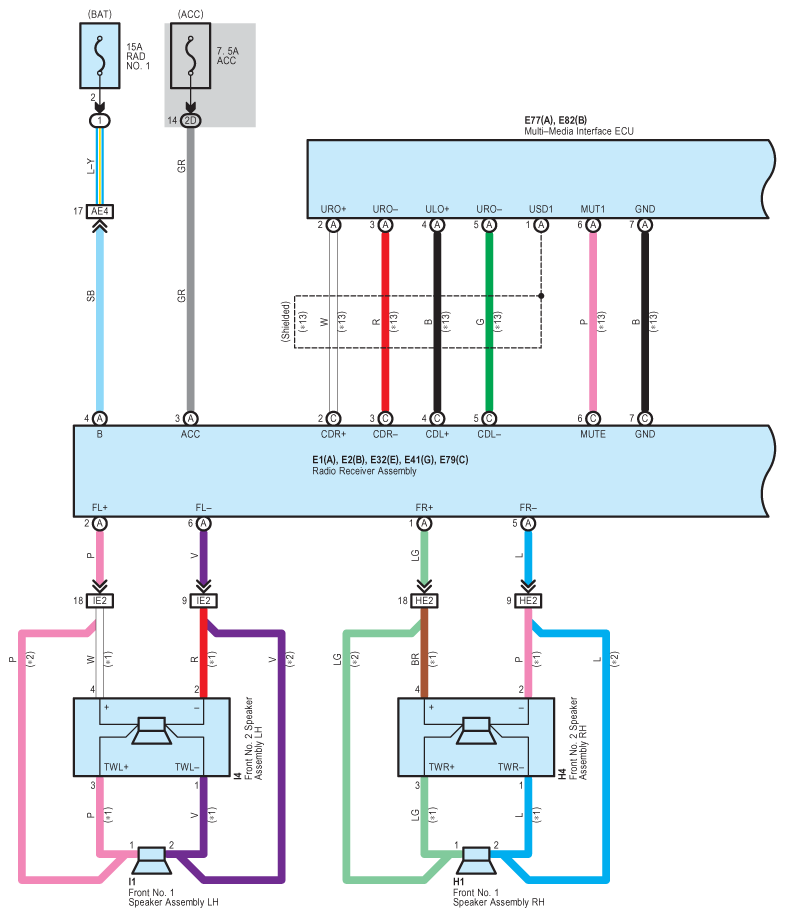

Fig 1: Audio System Wiring Diagram (1 Of 4)
G08798992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

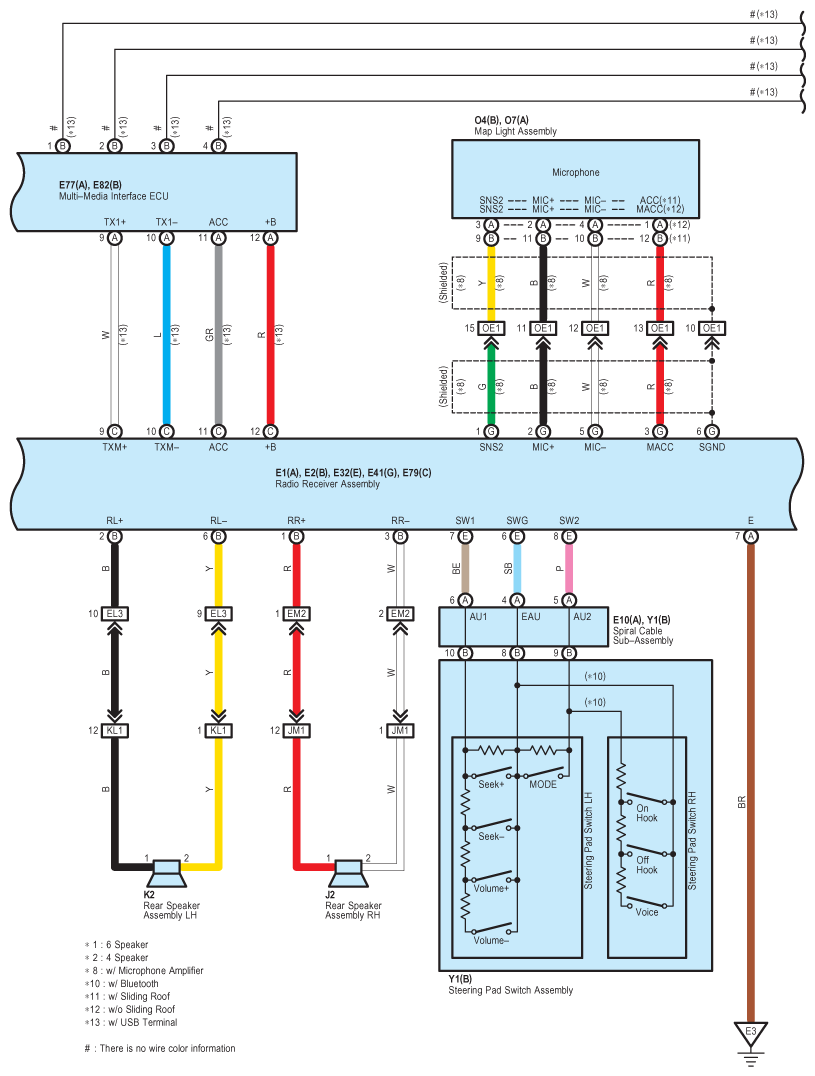

Fig 2: Audio System Wiring Diagram (2 Of 4)
G08798993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

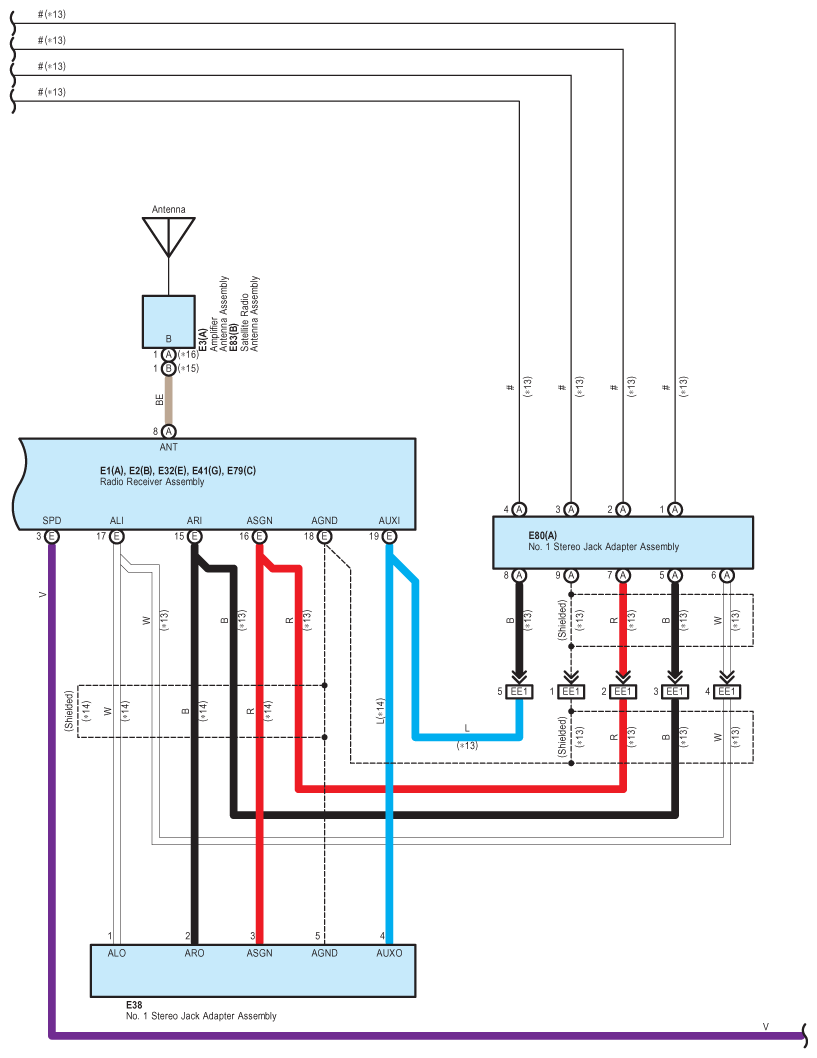

Fig 3: Audio System Wiring Diagram (3 Of 4)
G08798994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

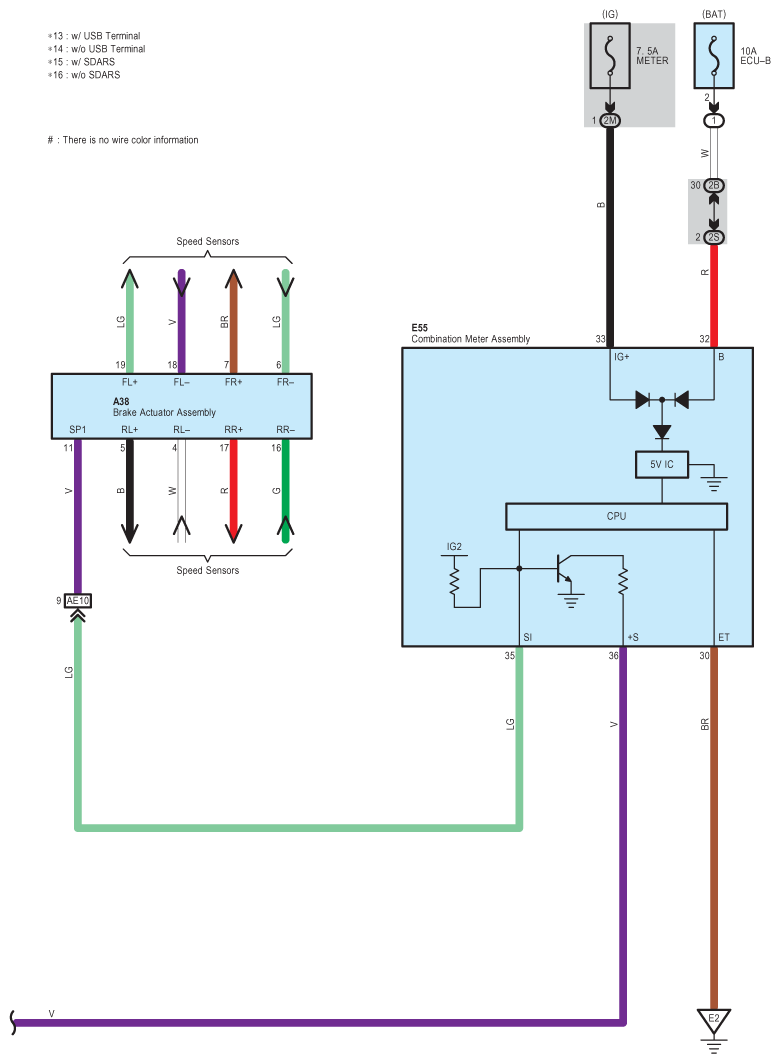

Fig 4: Audio System Wiring Diagram (4 Of 4)
G08798995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
