Home >> Toyota >> 2012 >> Matrix Base, Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back-Up Light >> Notes

Back-Up Light: Notes

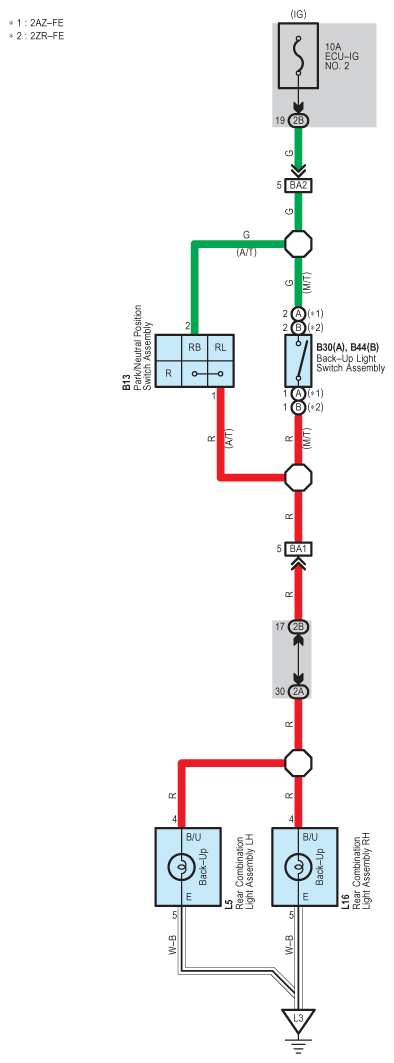

Fig 1: Back-Up Light Wiring Diagram
G08798908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
