Cruise Control (2ZR-FE)
>>
Notes
Cruise Control (2ZR-FE): Notes

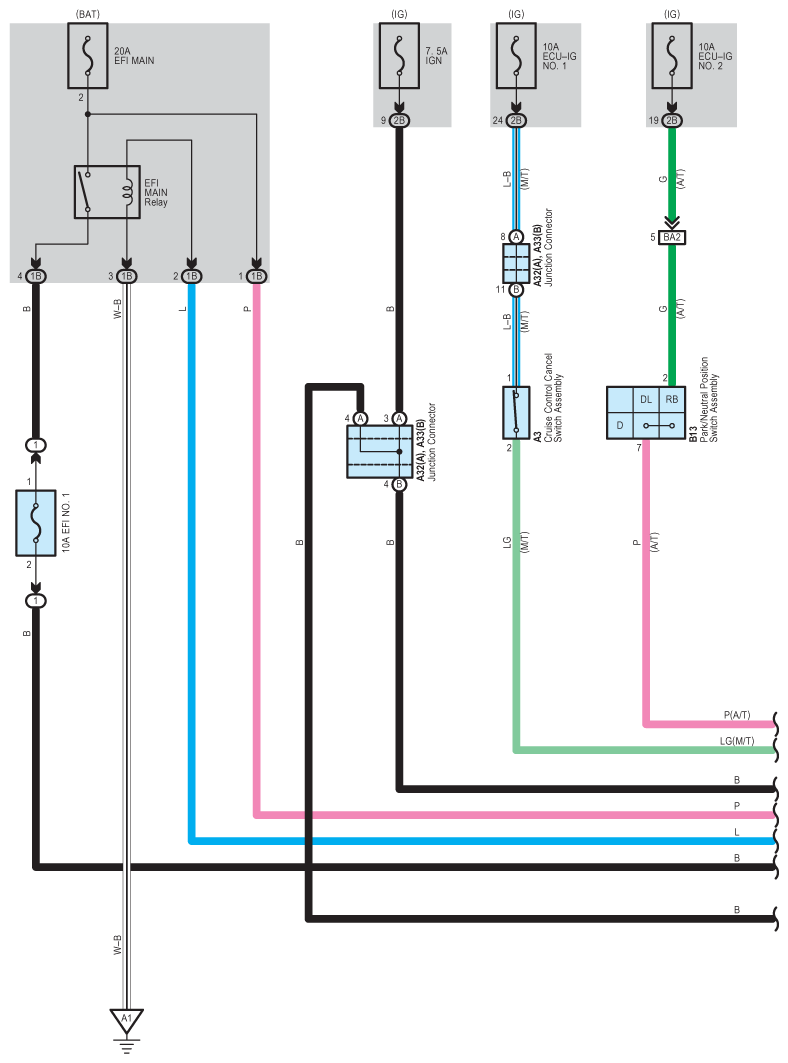

Fig 1: Cruise Control System Wiring Diagram (2ZR-FE; 1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

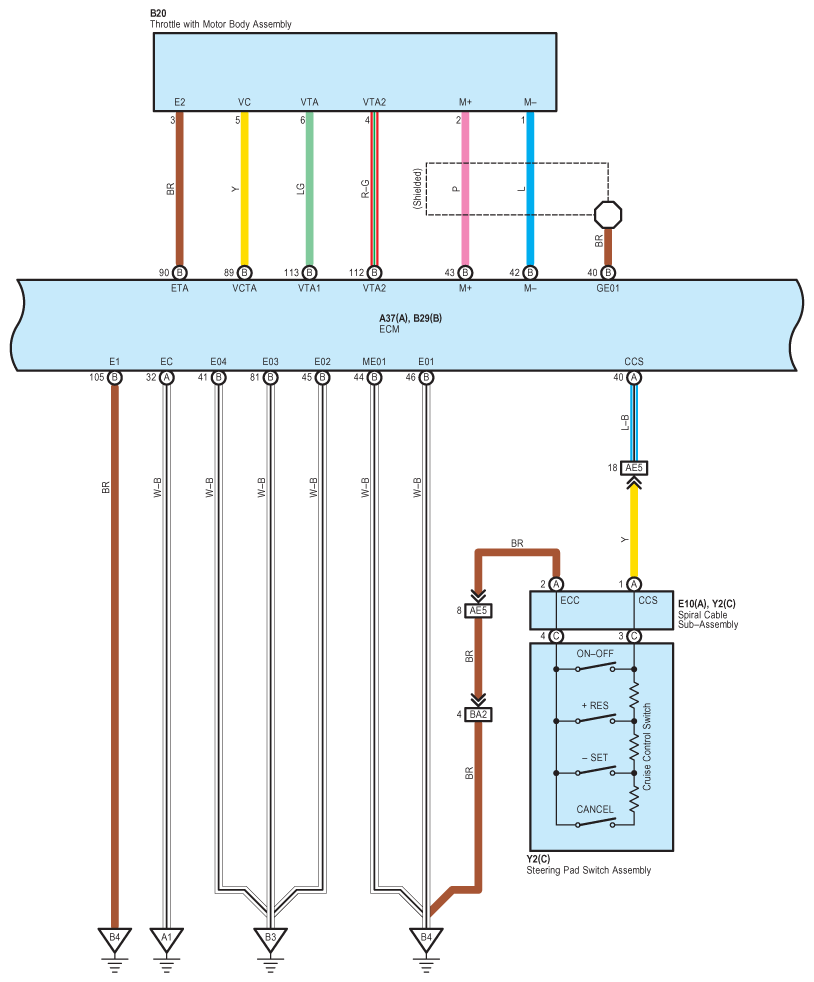

Fig 2: Cruise Control System Wiring Diagram (2ZR-FE; 2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

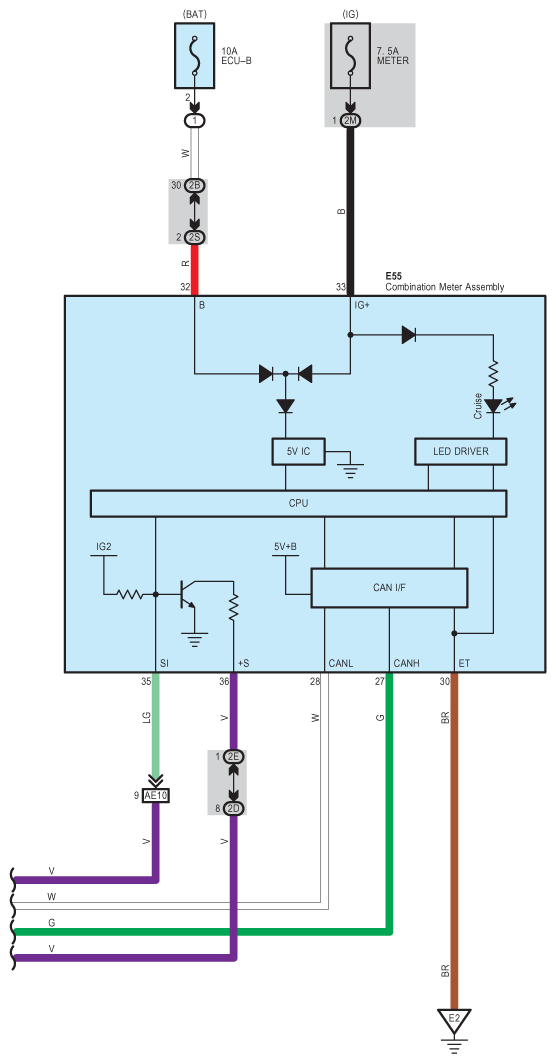

Fig 3: Cruise Control System Wiring Diagram (2ZR-FE; 3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

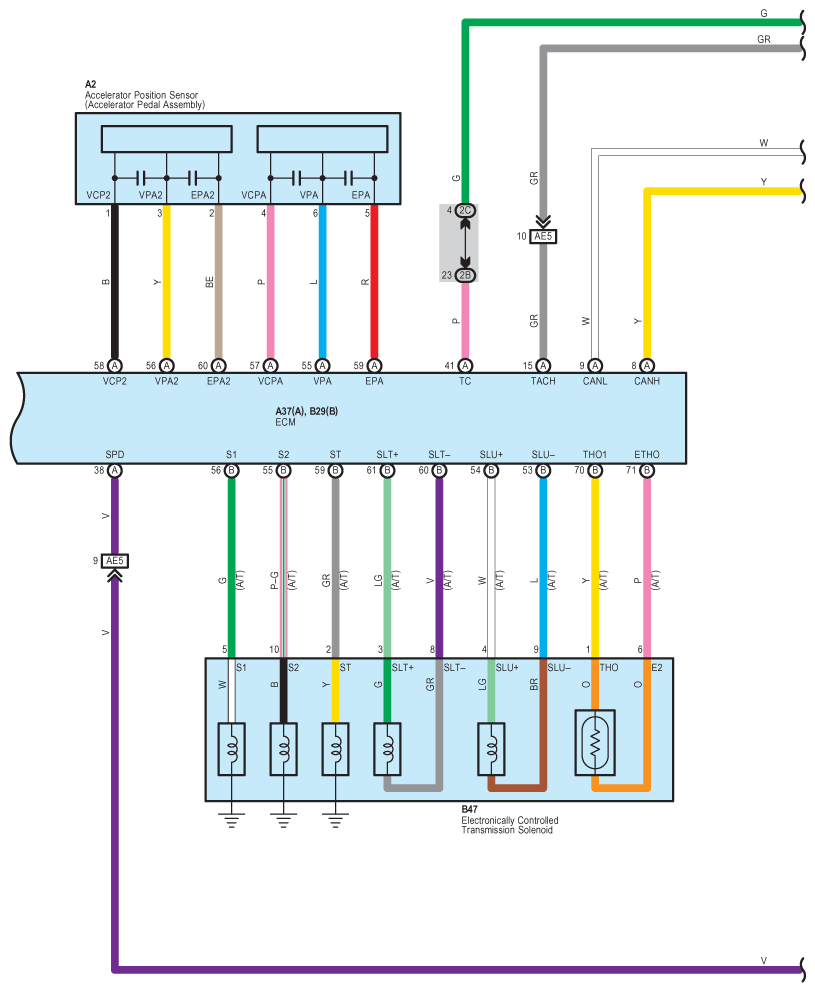

Fig 4: Cruise Control System Wiring Diagram (2ZR-FE; 4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

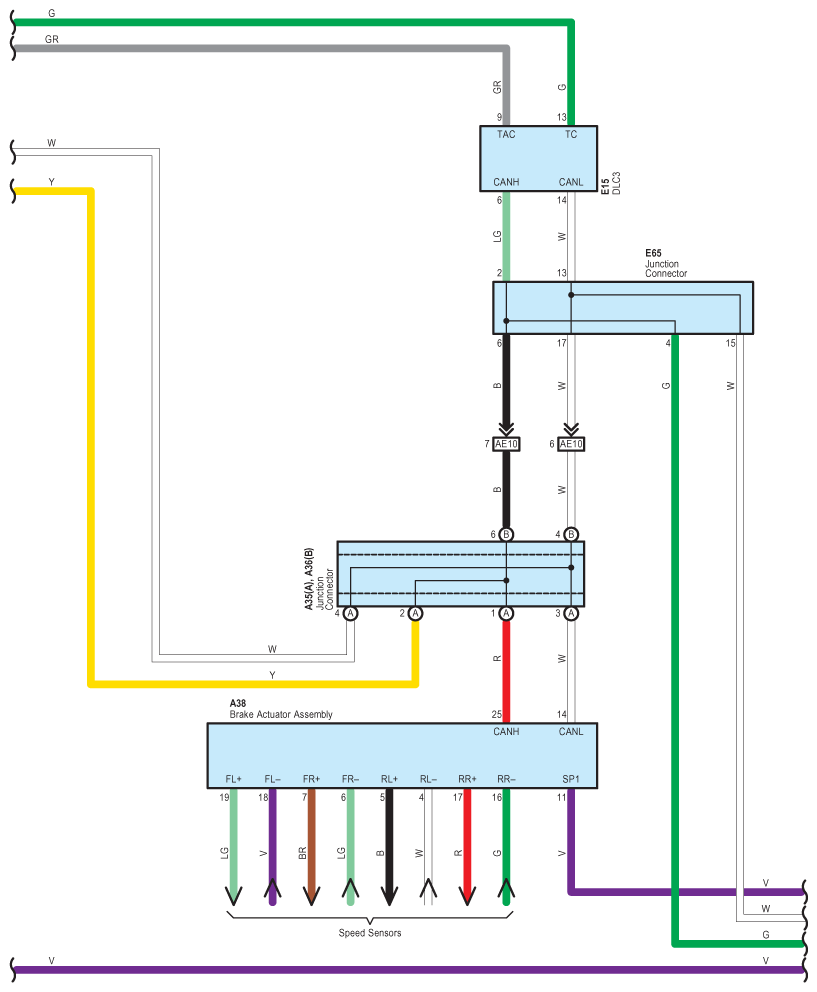

Fig 5: Cruise Control System Wiring Diagram (2ZR-FE; 5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

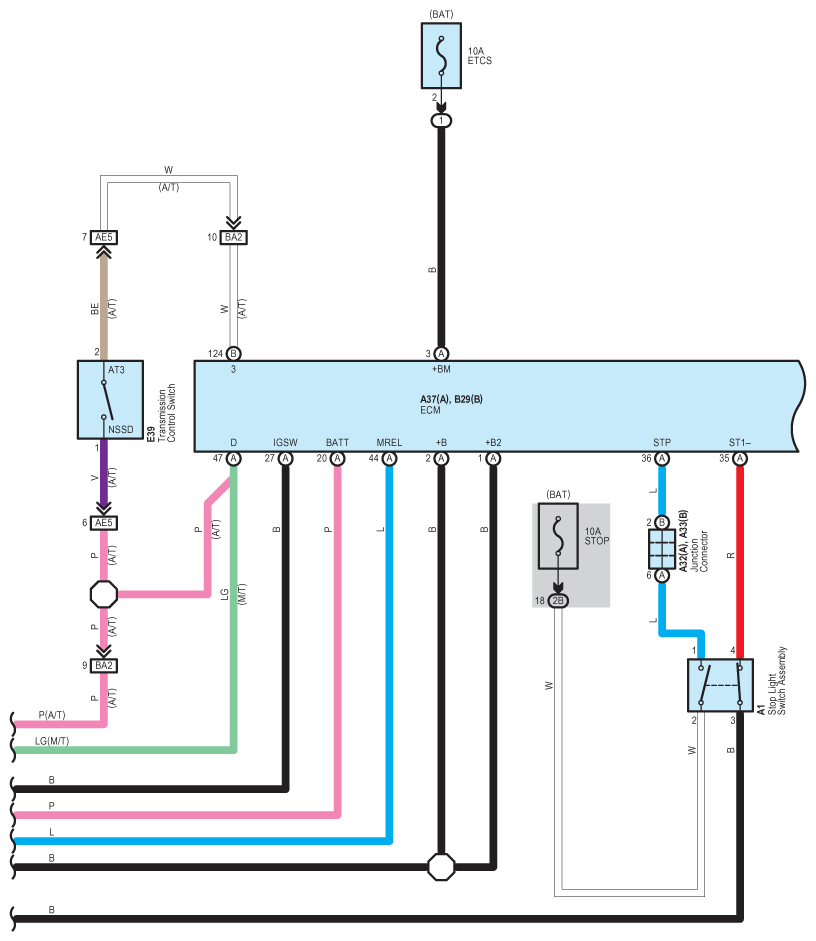

Fig 6: Cruise Control System Wiring Diagram (2ZR-FE; 6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
