Front Wiper and Washer: Notes

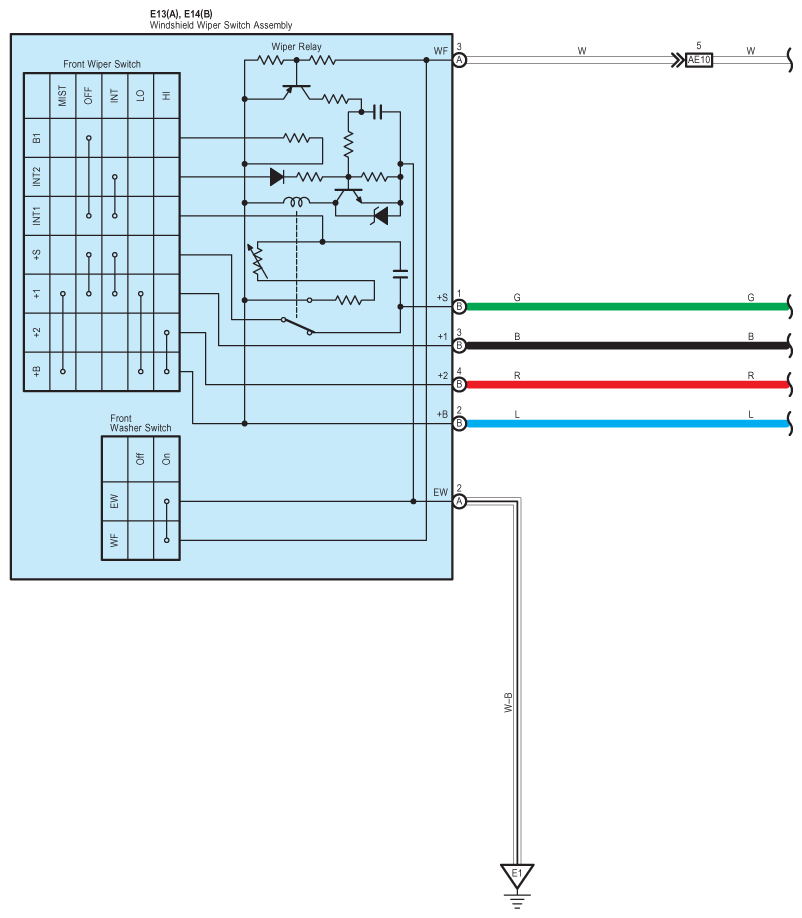

Fig 1: Front Wiper And Washer Wiring Diagram (1 Of 2)
G08798909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

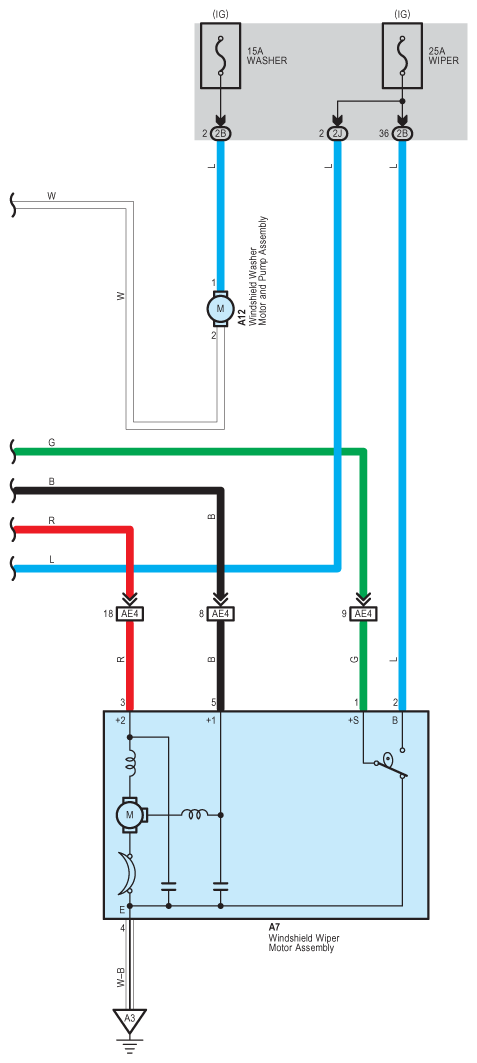

Fig 2: Front Wiper And Washer Wiring Diagram (2 Of 2)
G08798910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
