OEM System Circuits: Ignition: Notes

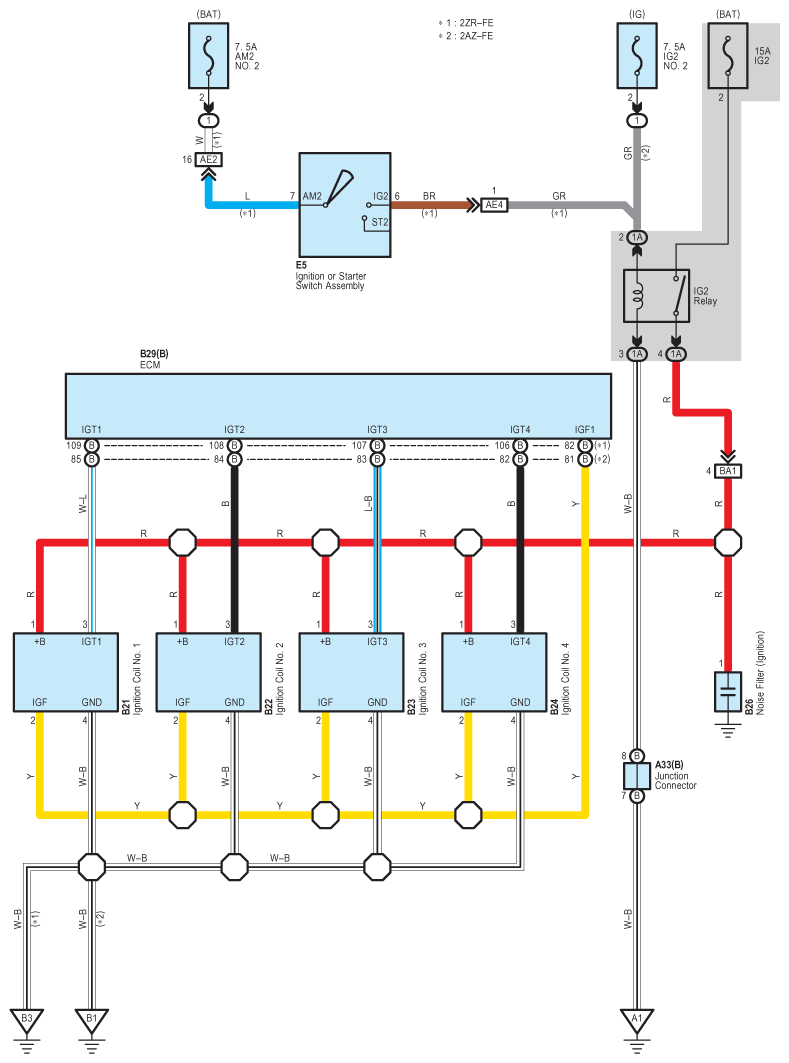

Fig 1: Ignition System Wiring Diagram

G08798865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
