Interior Light: Notes

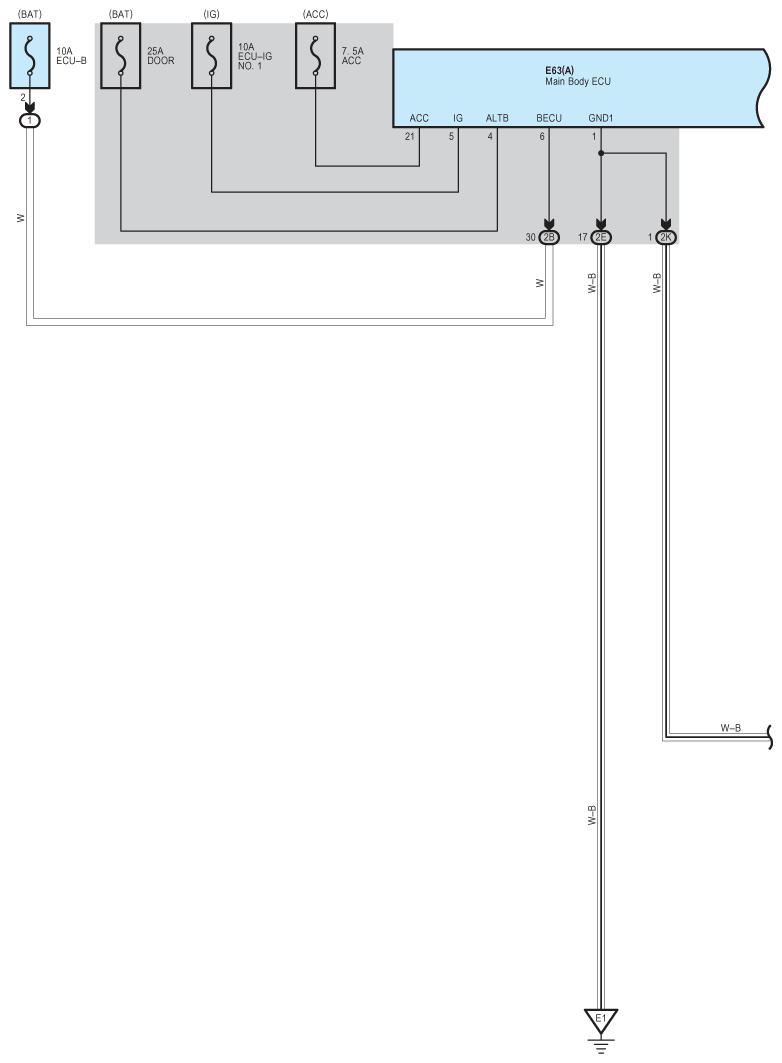

Fig 1: Interior Light Wiring Diagram (1 Of 4)
G08798895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

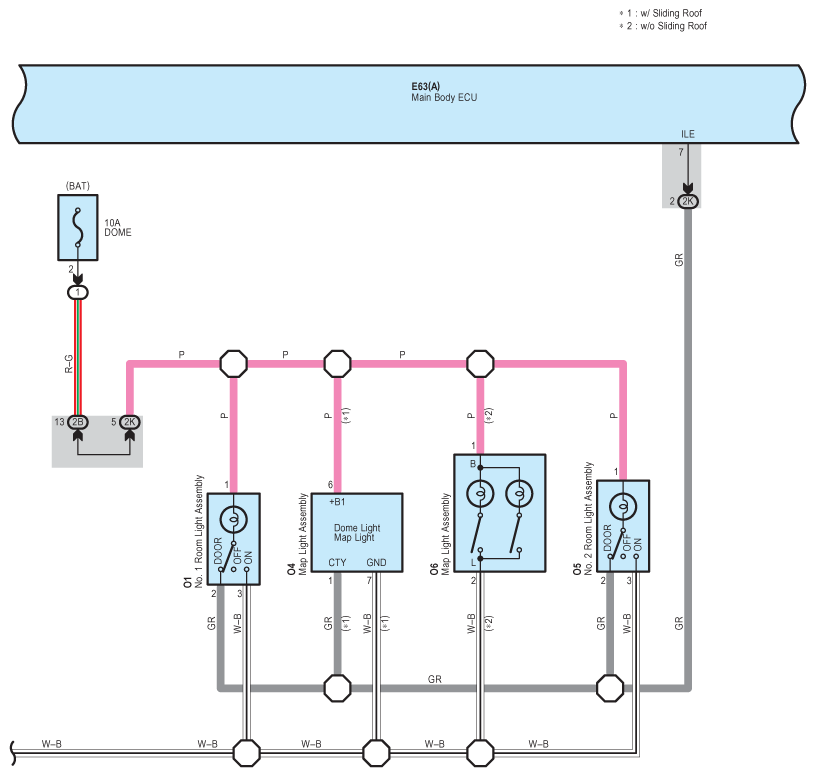

Fig 2: Interior Light Wiring Diagram (2 Of 4)
G08798896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

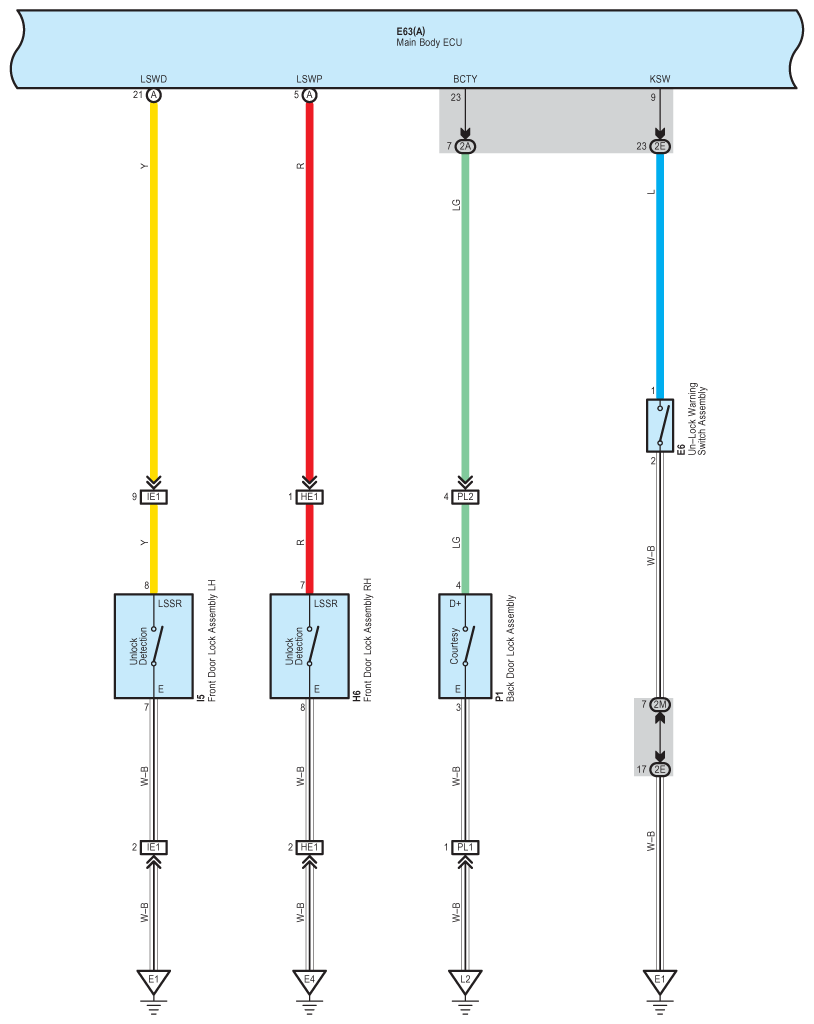

Fig 3: Interior Light Wiring Diagram (3 Of 4)
G08798897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

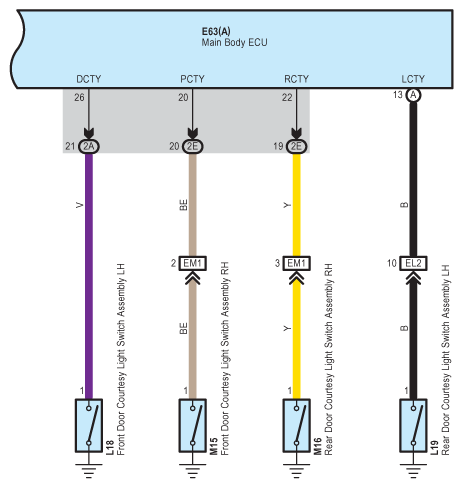

Fig 4: Interior Light Wiring Diagram (4 Of 4)
G08798898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
