Power Outlet (115V): Notes

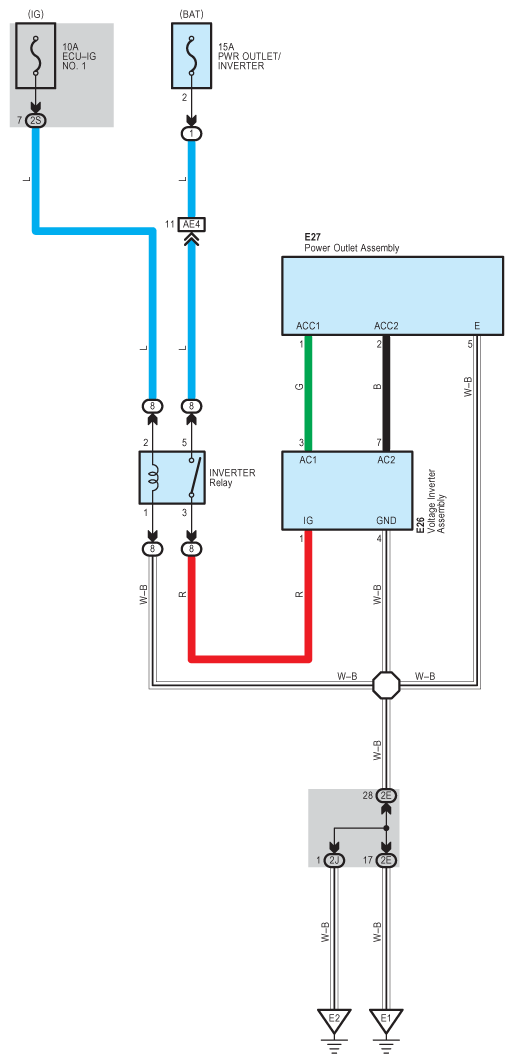

Fig 1: Power Outlet Wiring Diagram (115V)

G08798988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
