Seat Belt Warning: Notes

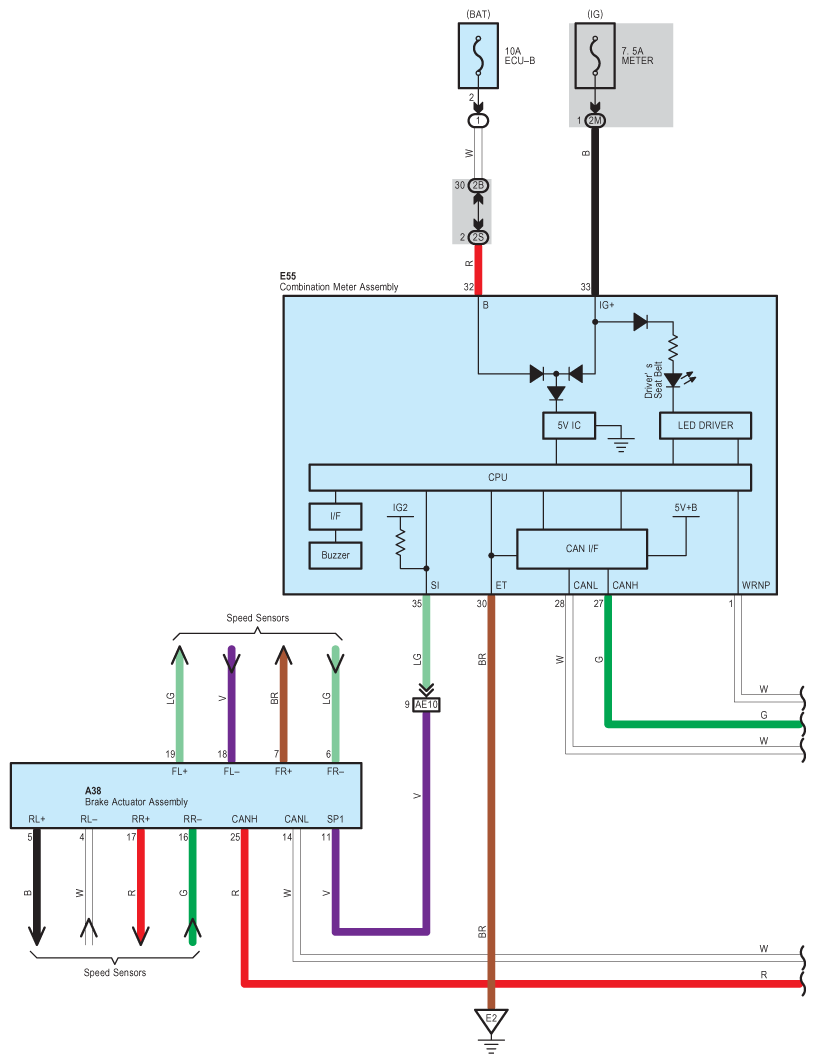

Fig 1: Seat Belt Warning System Wiring Diagram (1 Of 3)
G08798982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

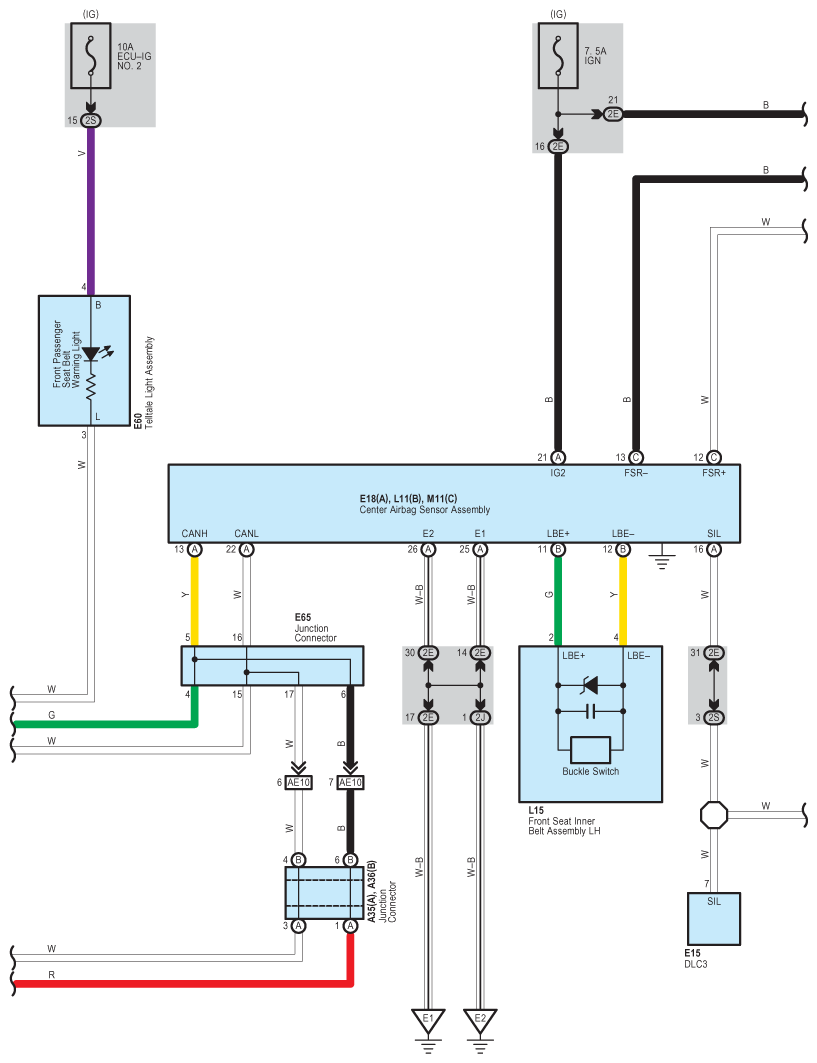

Fig 2: Seat Belt Warning System Wiring Diagram (2 Of 3)
G08798983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

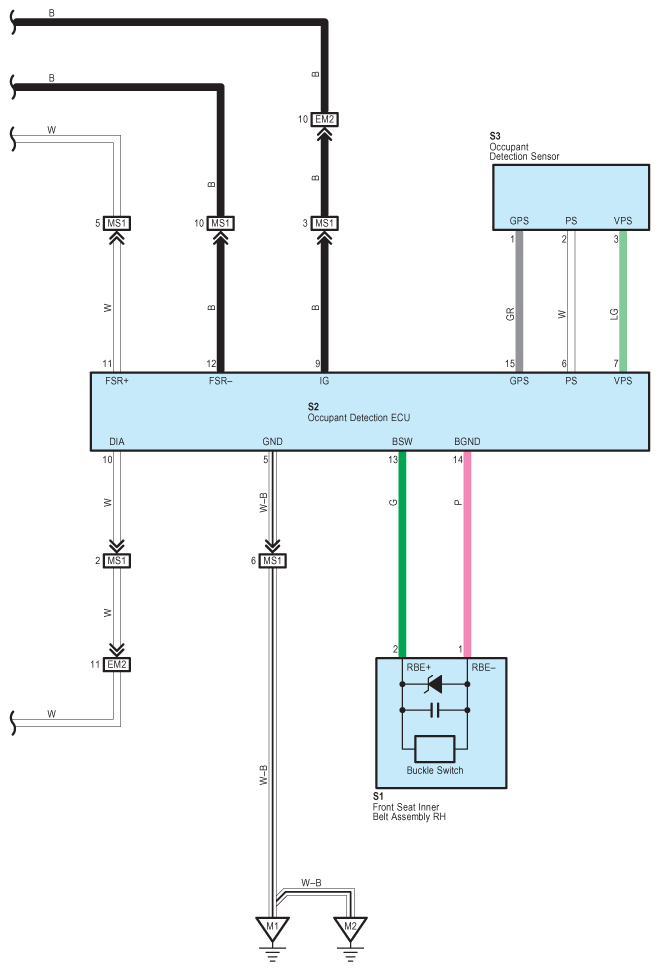

Fig 3: Seat Belt Warning System Wiring Diagram (3 Of 3)
G08798984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
