2GR-FE 3.5L

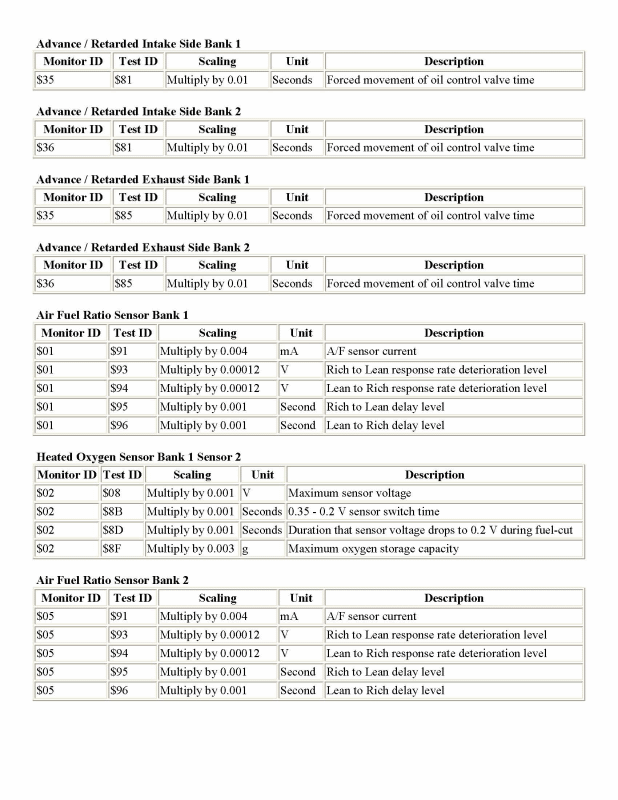

Fig 1: Mode 6 Data For Highlander V6 (1 Of 4)
G00526335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

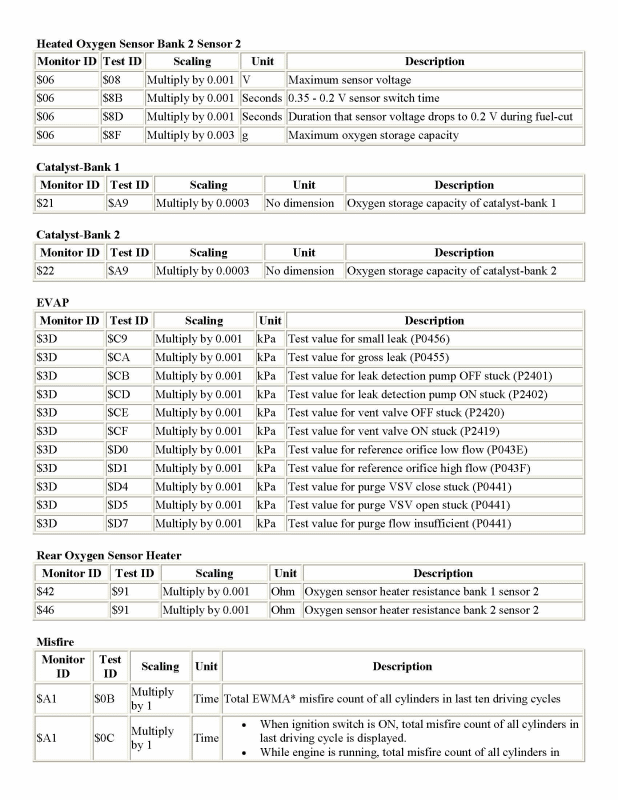

Fig 2: Mode 6 Data For Highlander V6 (2 Of 4)
G00526336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

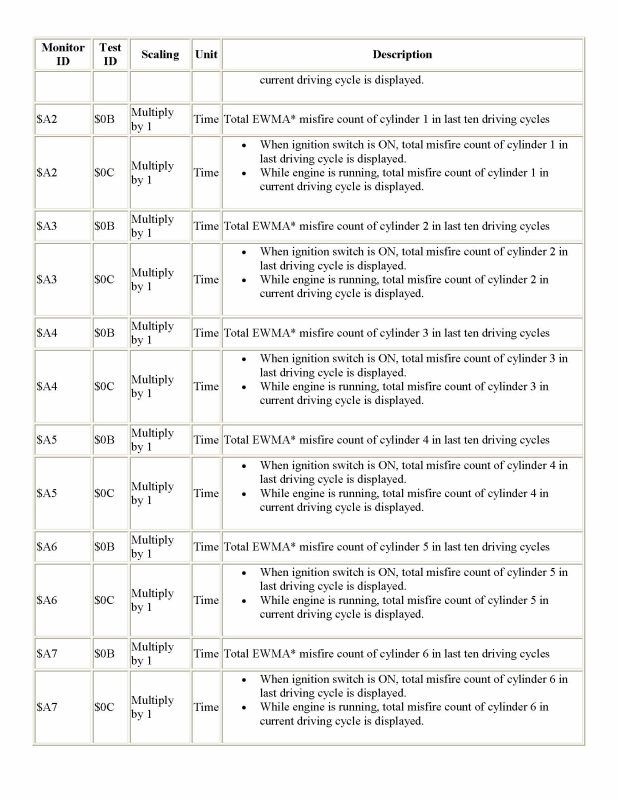

Fig 3: Mode 6 Data For Highlander V6 (3 Of 4)
G00526337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

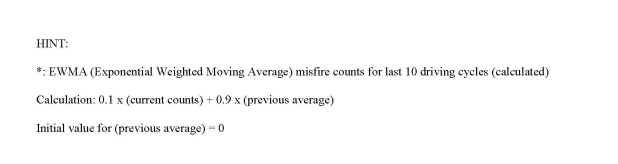

Fig 4: Mode 6 Data For Highlander V6 (4 Of 4)
G00526338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
