Rear Airbag Sensor: Components: Illustration

Fig 1: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY241380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

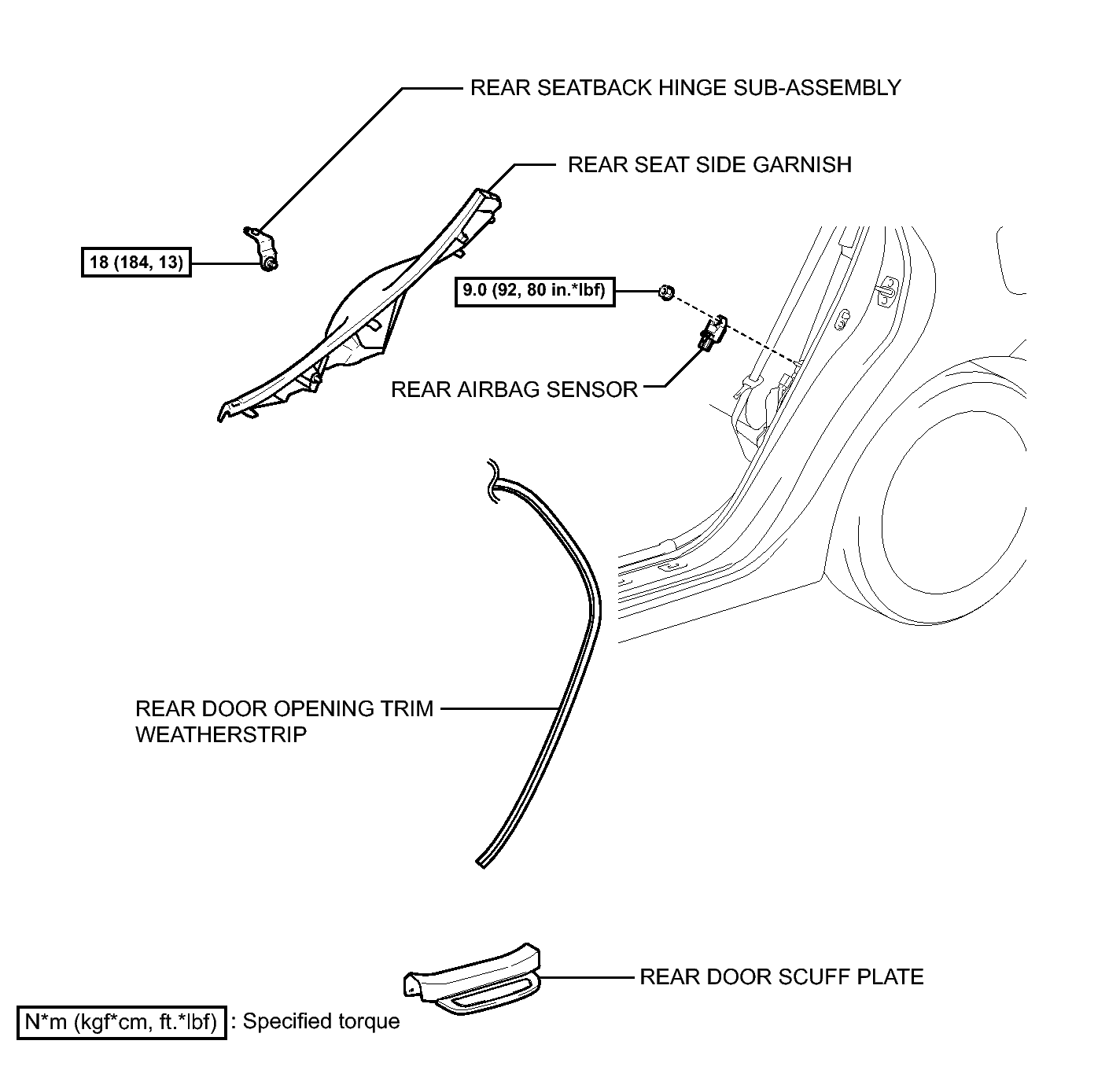

Fig 1: Identifying Rear Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY244879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
