OEM System Circuits: DLC3: Notes

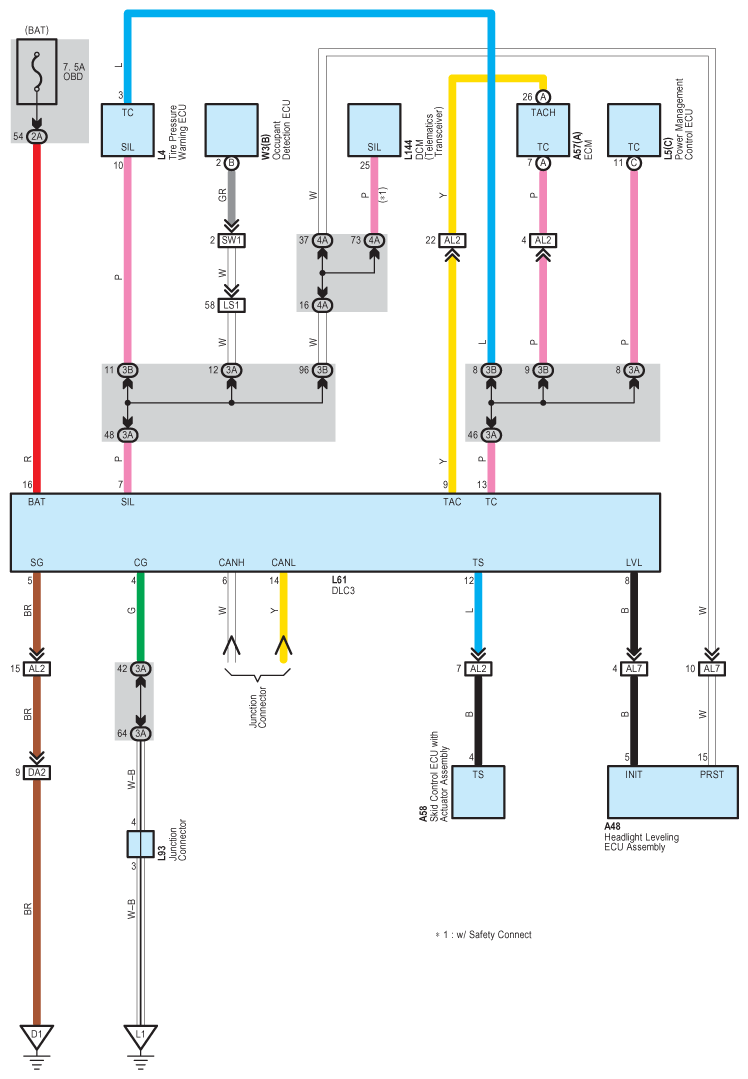

Fig 1: DLC3 System Wiring Diagram
G08850031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
