Safety Connect: Notes

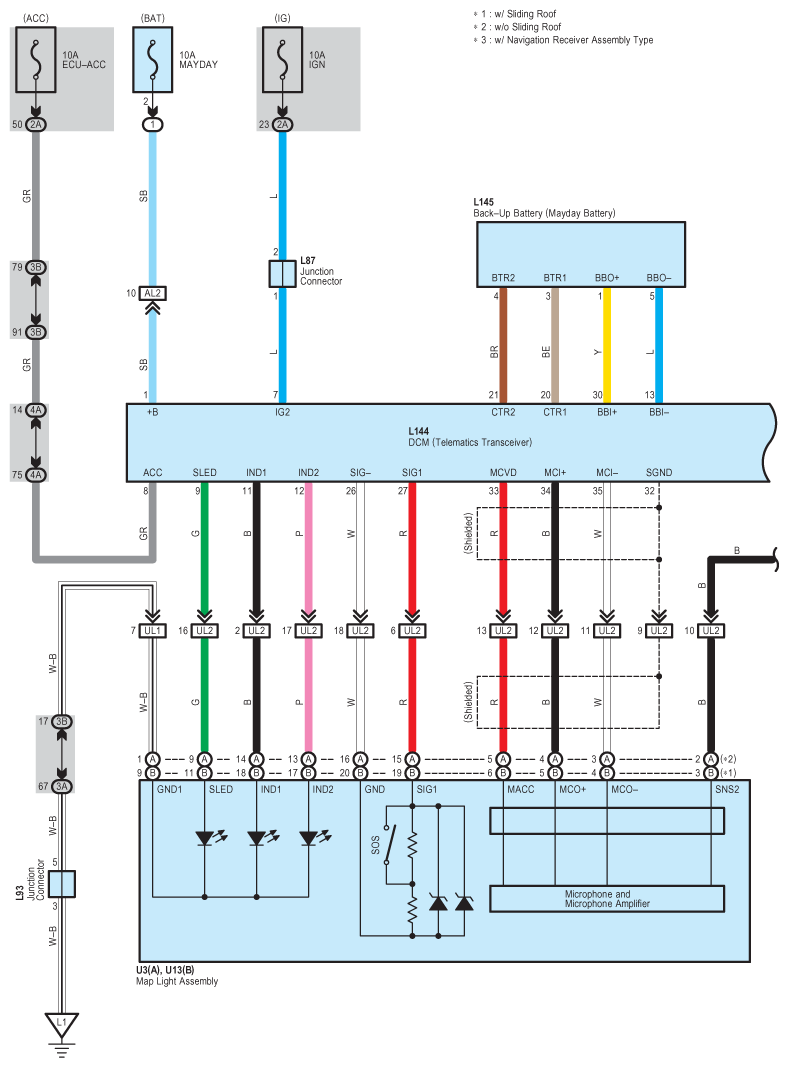

Fig 1: Safety Connect System Wiring Diagram (1 Of 3)
G08850184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

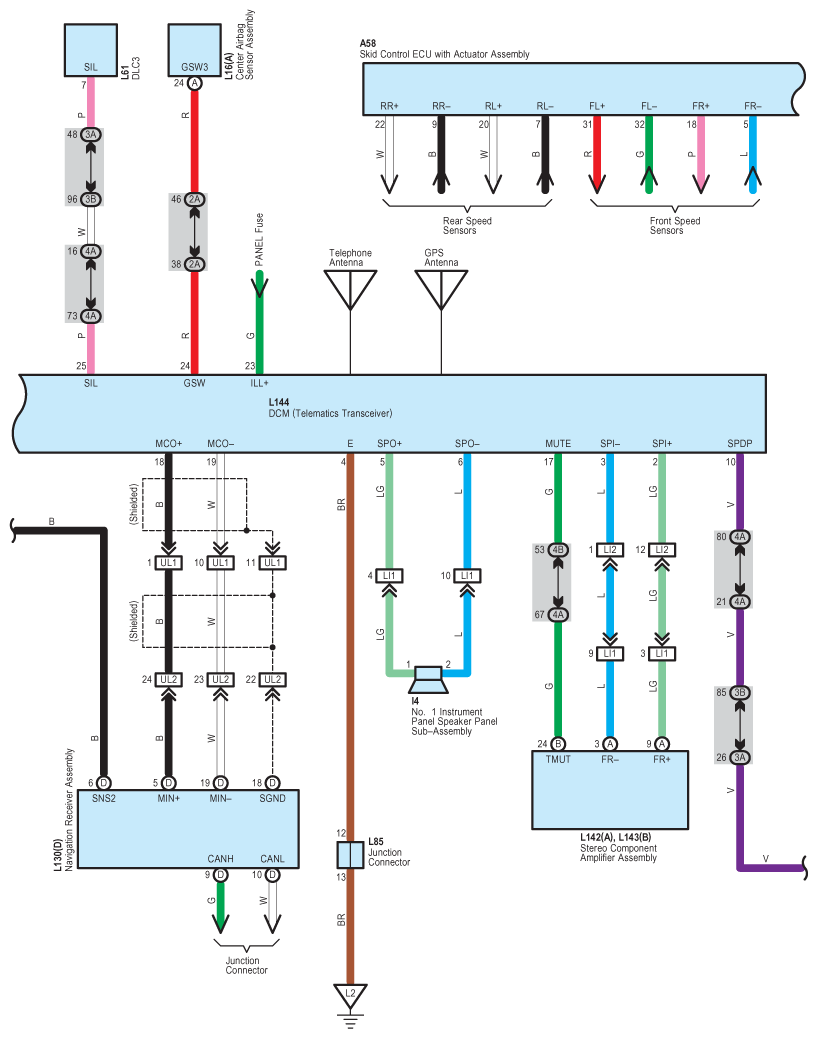

Fig 2: Safety Connect System Wiring Diagram (2 Of 3)
G08850185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

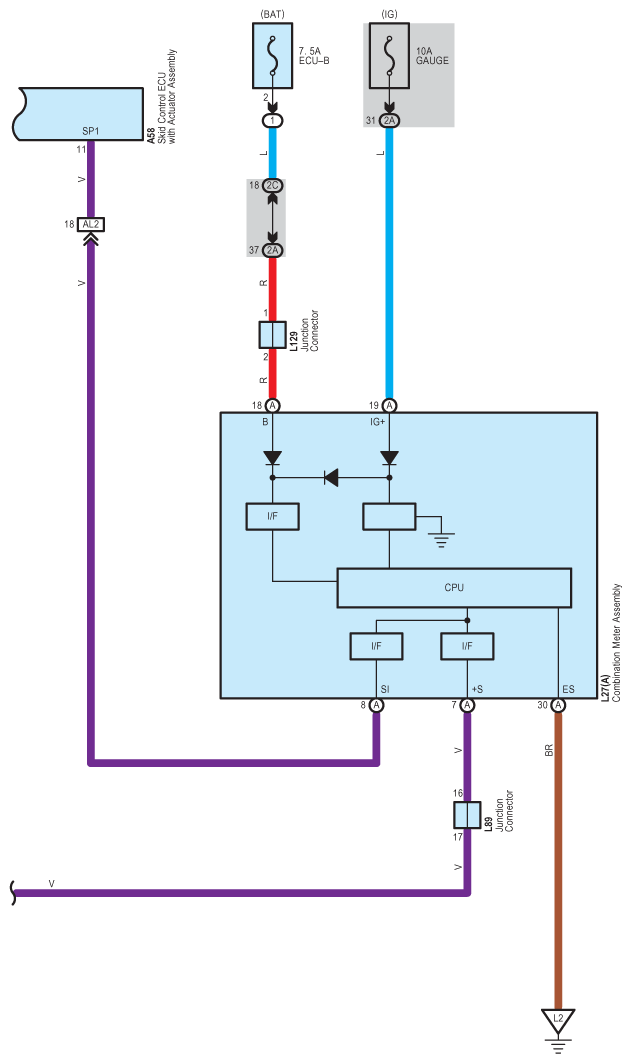

Fig 3: Safety Connect System Wiring Diagram (3 Of 3)
G08850186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
