Integration Relay: Components: Illustration

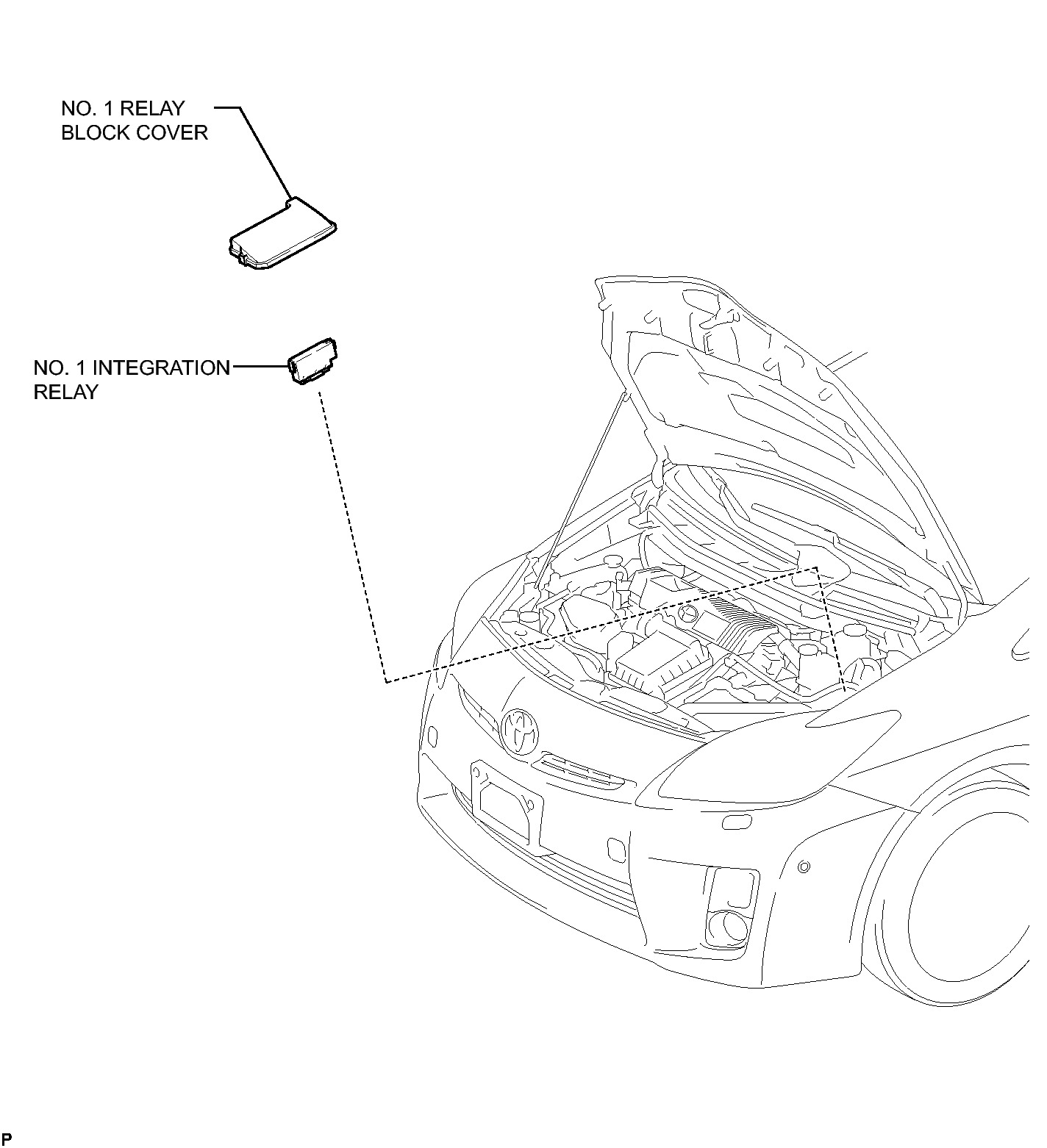

Fig 1: Identifying Integration Relay Replacement Components
GTY223871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
