Integration Relay: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE NO. 1 RELAY BLOCK COVER
1. Disengage the 3 claws and remove the No. 1 relay block cover.

  Fig 1: Identifying No. 1 Relay Block Cover & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 INTEGRATION RELAY
1. Disengage the 2 claws and pull up the No. 1 integration relay as shown in the illustration.

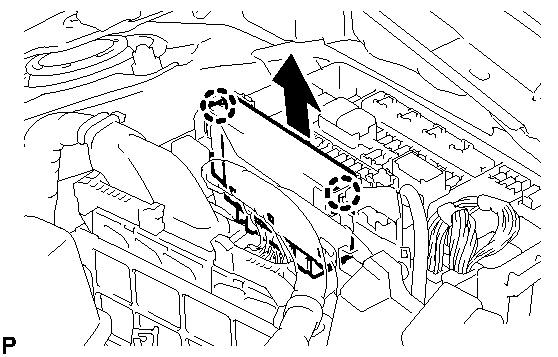

  Fig 2: Identifying Claws & Pulling Direction For Removal Of No. 1 Integration Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 3 connectors and remove the No. 1 integration relay.

  Fig 3: Identifying No. 1 Integration Relay & Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
