Fuel System (Except Plug-In) (Service Information)
>>
Fuel Pump
>>
Components
>>
Illustration
Fuel Pump: Components: Illustration

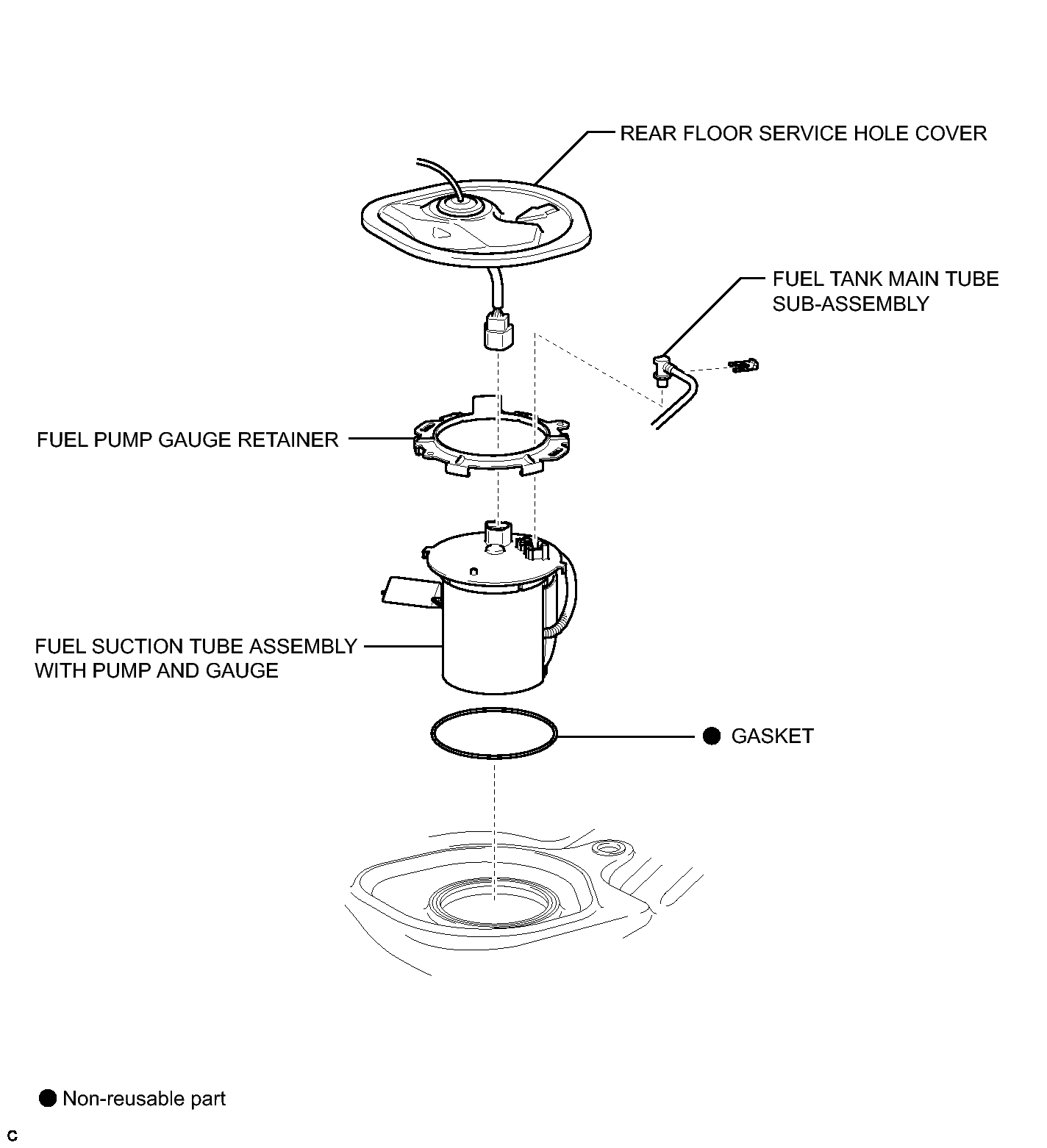

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

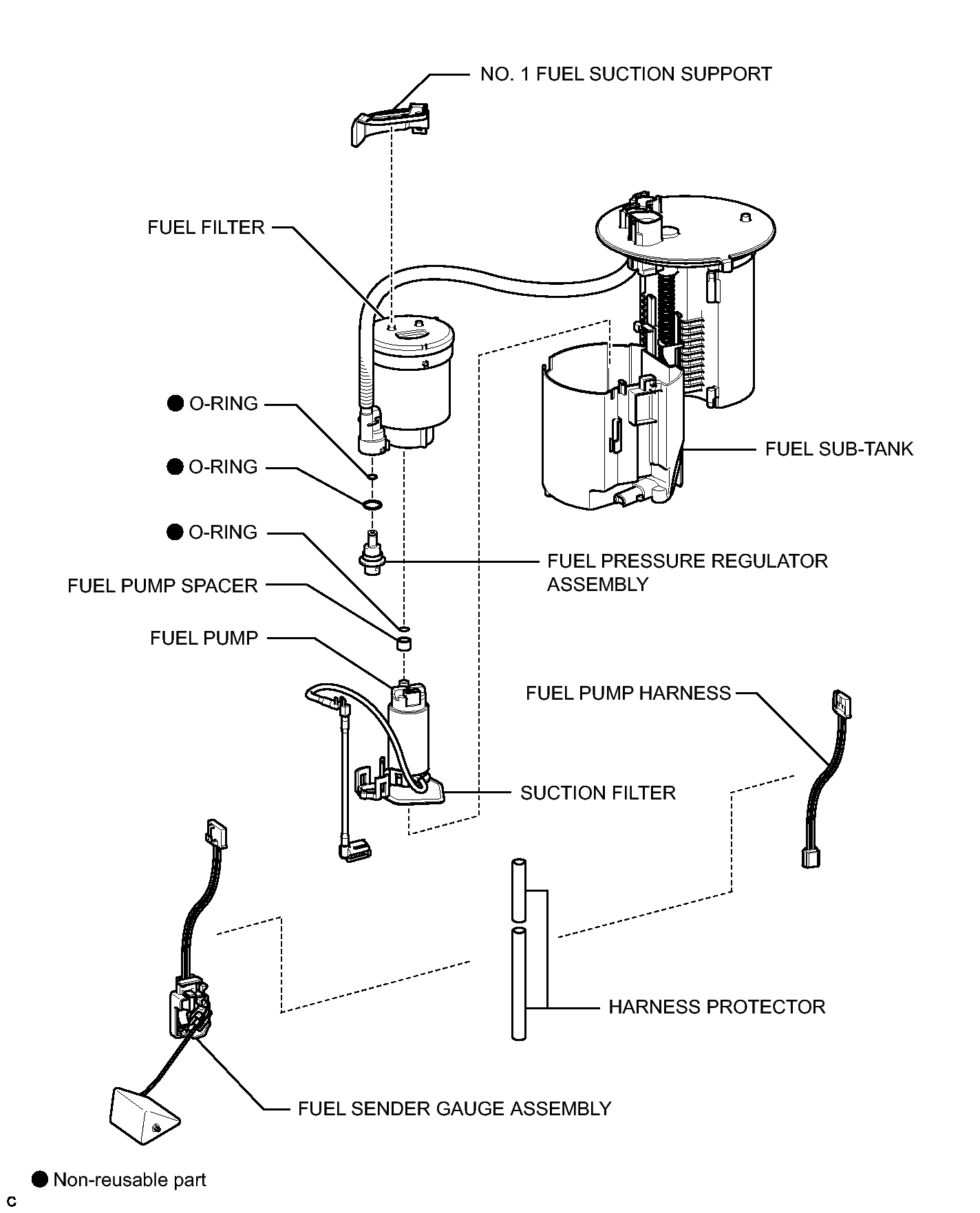

Fig 2: Identifying Fuel Pump Replacement Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Fuel Pump Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Pump Replacement Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
