Fuel Tank: Components: Illustration

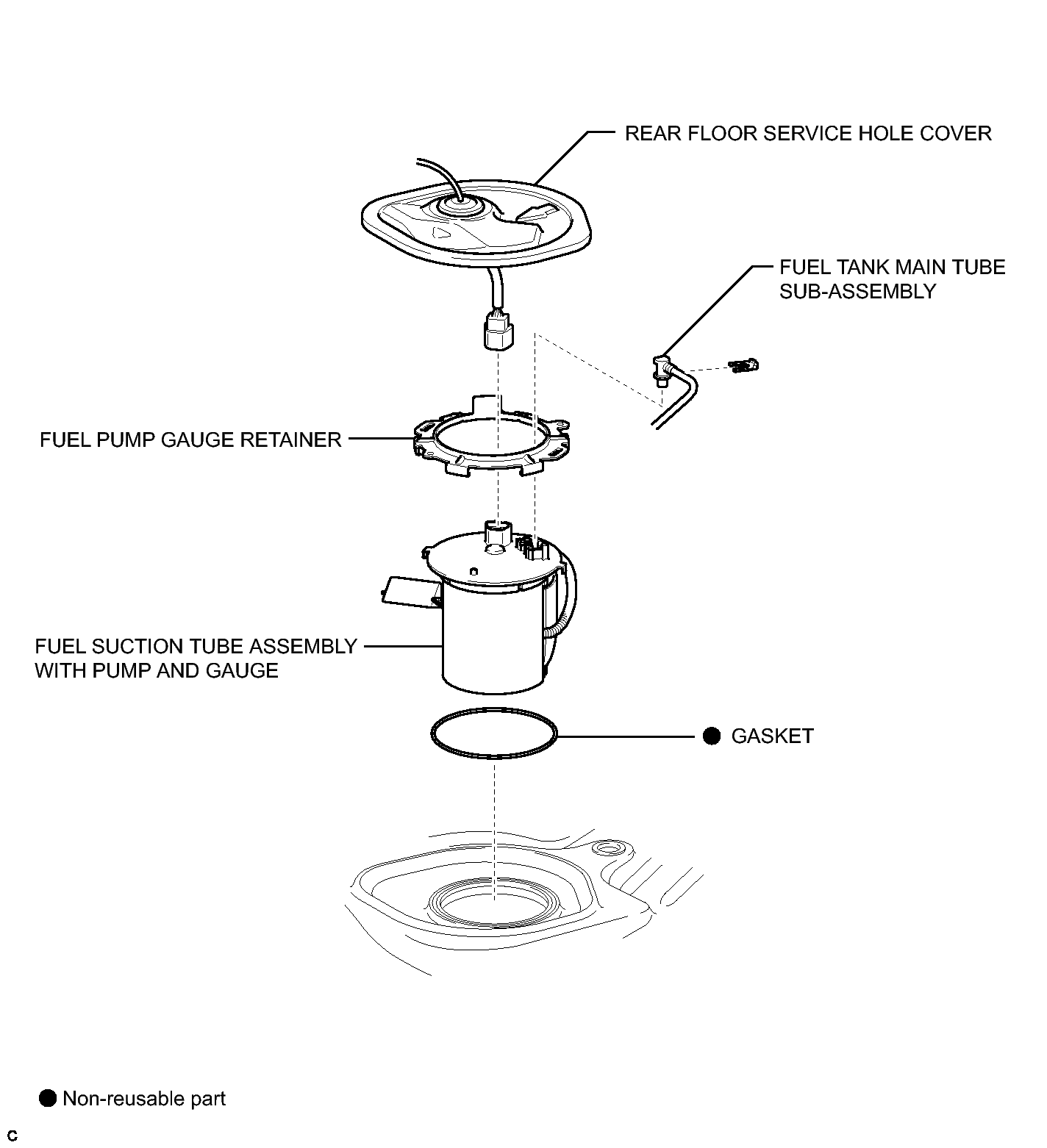

Fig 1: Identifying Fuel Tank Replacement Components (1 Of 2)
GTY230294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

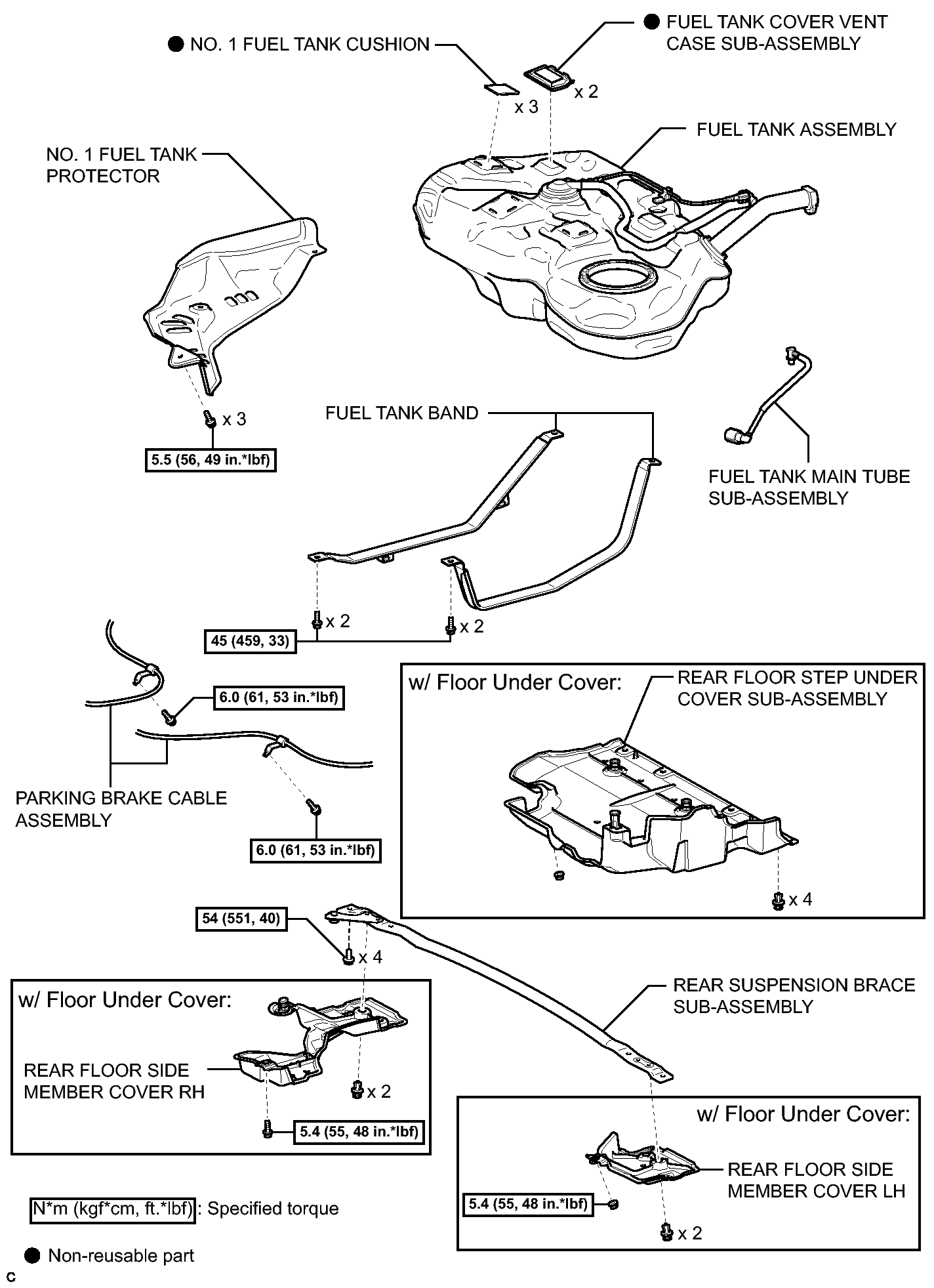

Fig 2: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
GTY328662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
