Front Speed Sensor: Components: Illustration

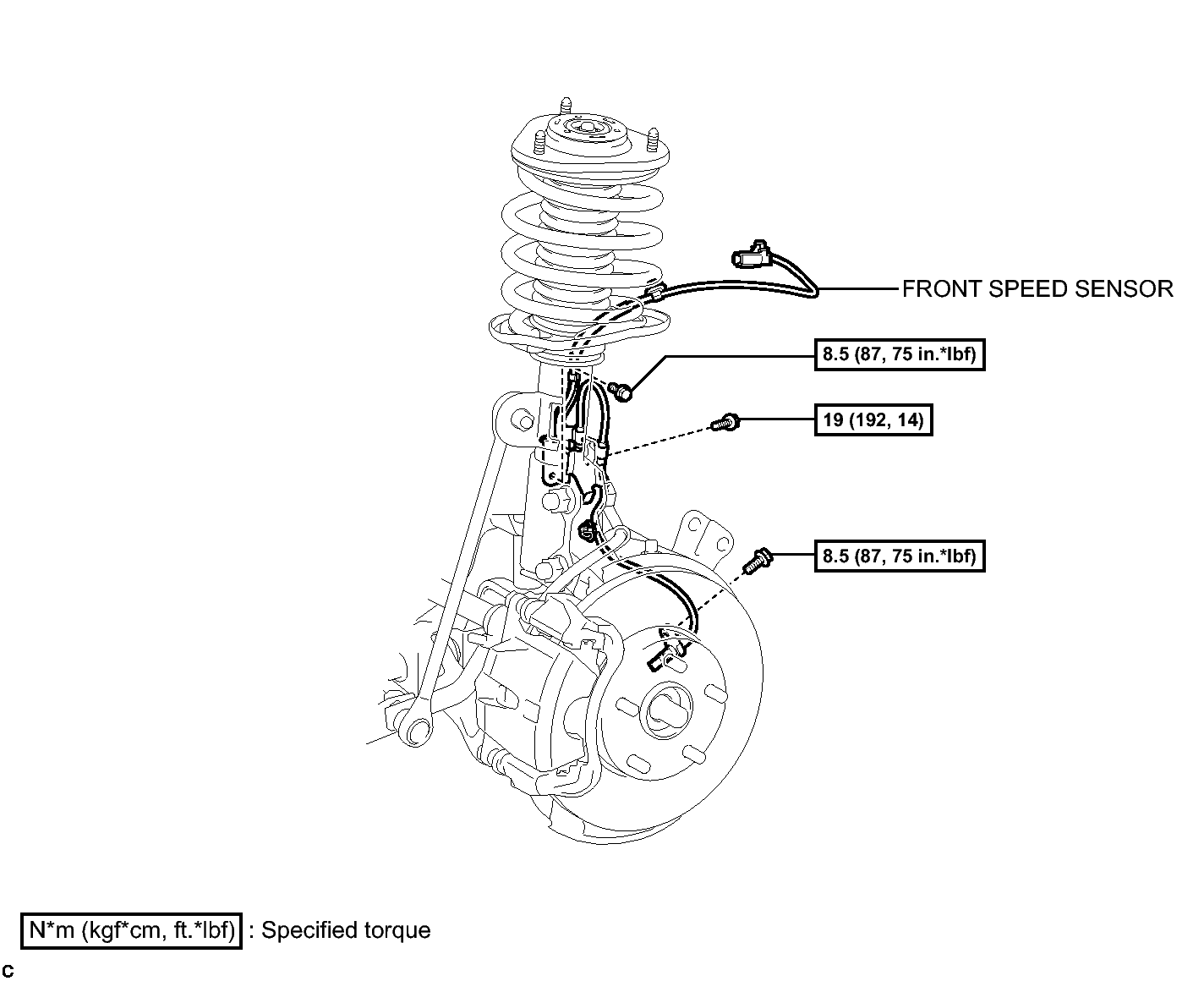

Fig 1: Front Speed Sensor Replacement Components Location With Torque Specifications

GTY327928

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
