Back-Up Light: Notes

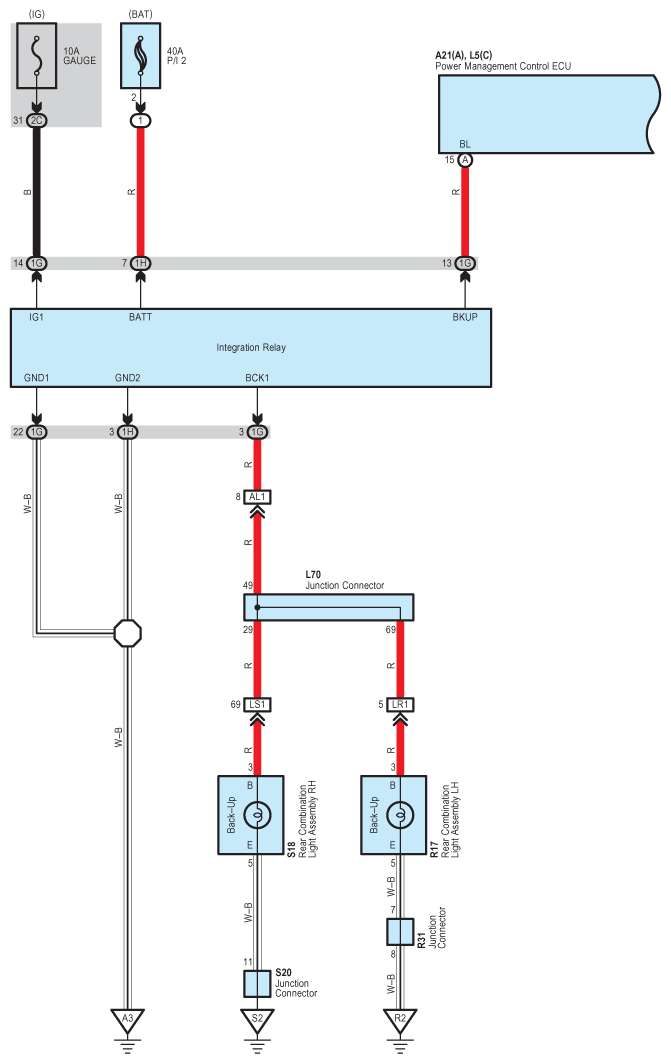

Fig 1: Back - Up Light System Wiring Diagram (1 Of 2)
G08862863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Back - Up Light System Wiring Diagram (2 Of 2)
G08862864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
