Fog Light: Notes

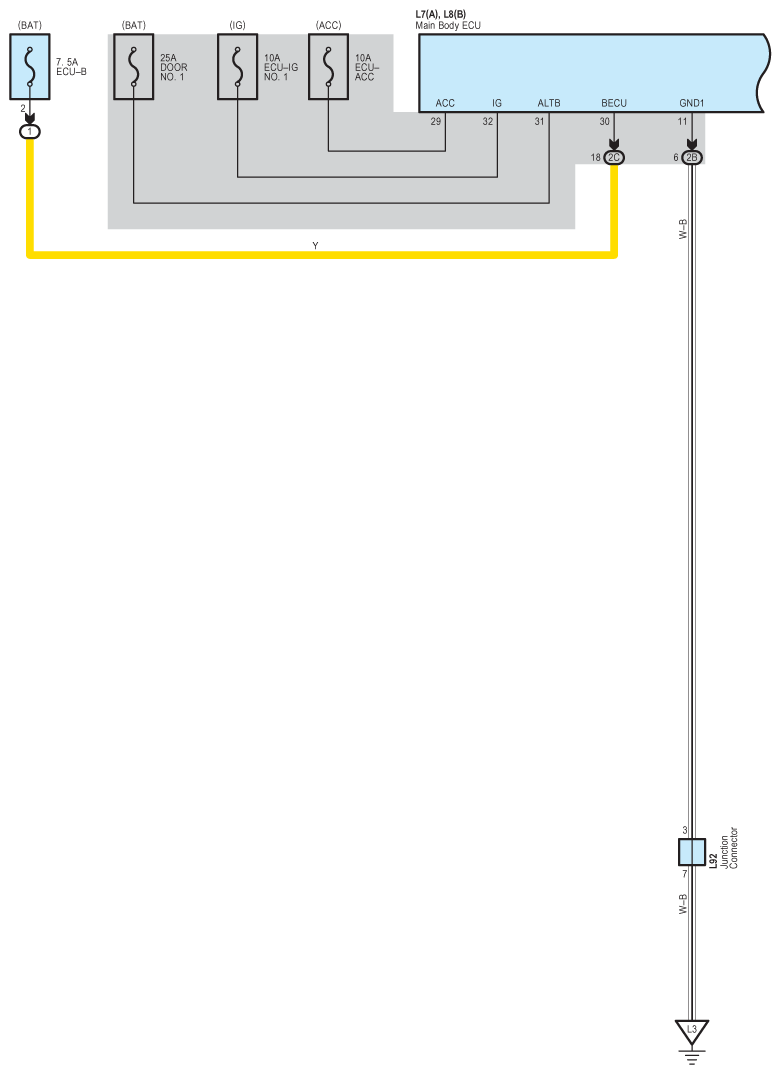

Fig 1: Fog Light System Wiring Diagram (1 Of 4)
G08862858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

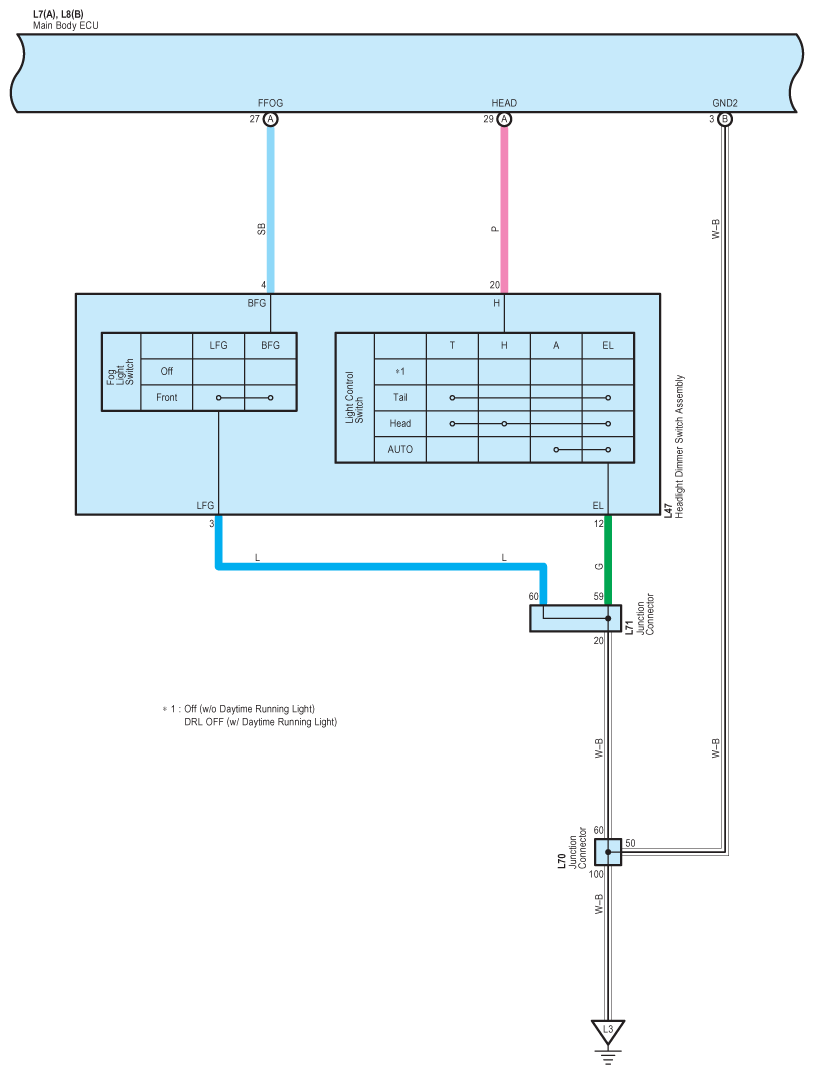

Fig 2: Fog Light System Wiring Diagram (2 Of 4)
G08862859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Fog Light System Wiring Diagram (3 Of 4)
G08862860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

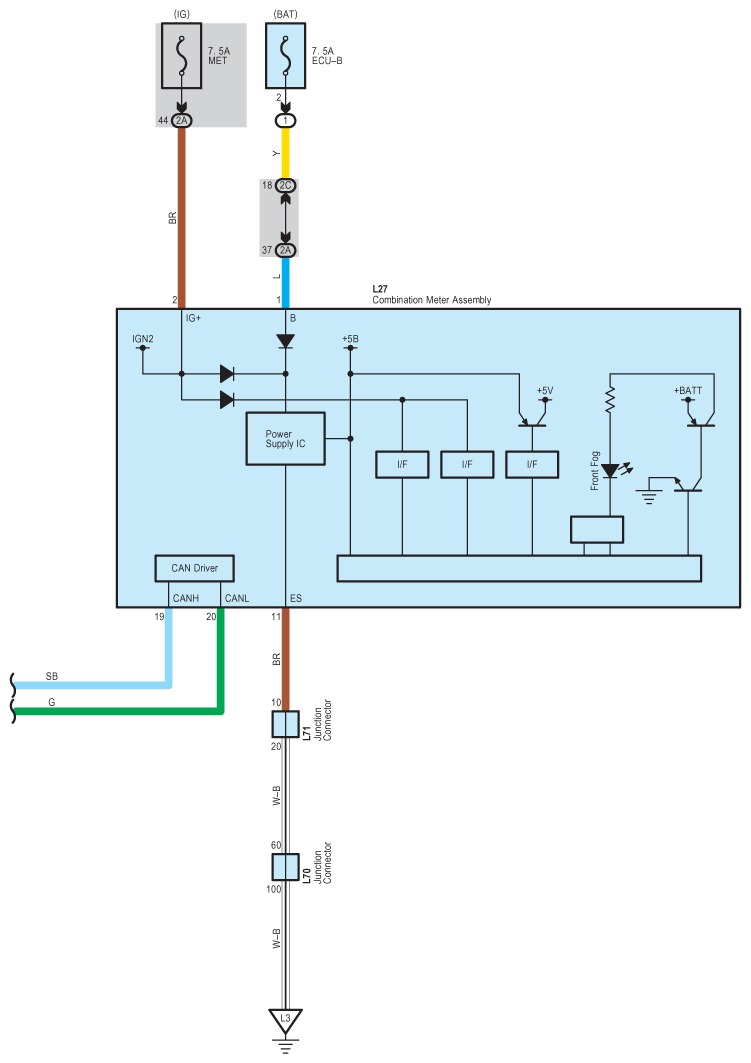

Fig 4: Fog Light System Wiring Diagram (4 Of 4)
G08862861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
