Terminals Of Ecu

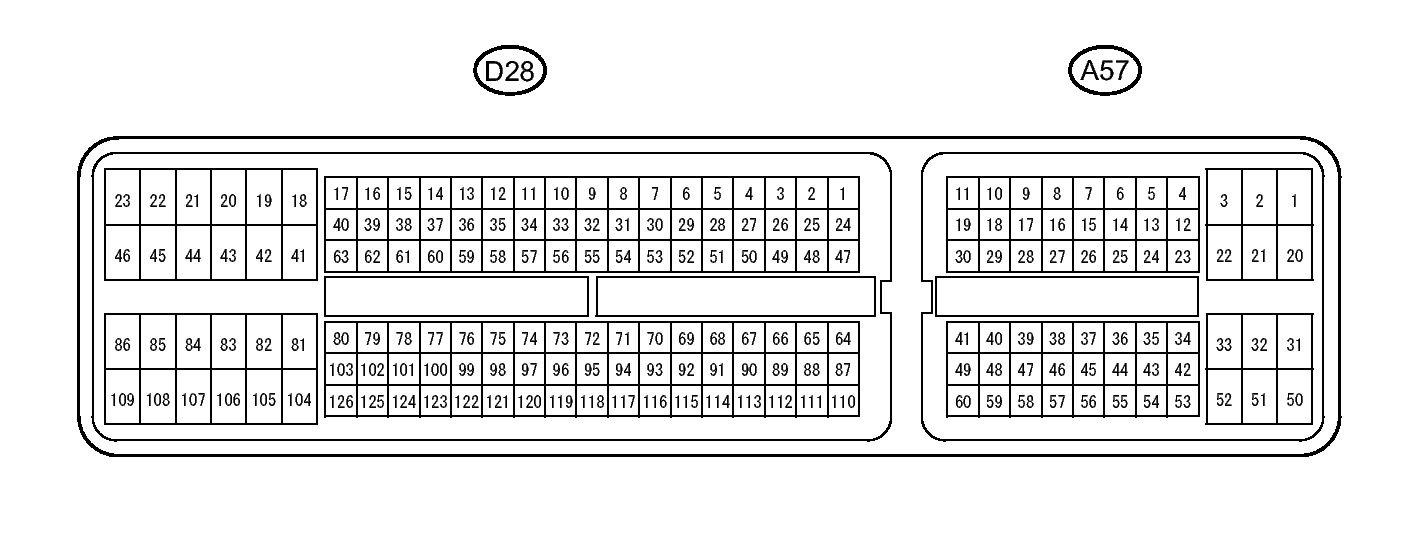

Fig 1: ECU Connector Terminal Identification - ECM
GTY338625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of the terminals, and displayed in the "Specified Condition" column. The illustration above can be used as a reference to identify the ECM terminal locations.

Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
A57-20 (BATT) - D28-104 (E1) R - BR Auxiliary battery (for measuring auxiliary battery voltage and for ECM memory) Always 11 to 14 V
A57-2 (+B) - D28-104 (E1) B - BR Power source of ECM Power switch on (IG) 11 to 14 V
A57-1 (+B2) - D28-104 (E1) B - BR Power source of ECM Power switch on (IG) 11 to 14 V
A57-3 (+BM) - D28-104 (E1) GR - BR Power source of throttle actuator Always 11 to 14 V
D28-108 (IGT1) - D28-104 (E1) P - BR Ignition coil assembly
(ignition signal)		 Idling Pulse generation
(see waveform Fig 2)
D28-107 (IGT2) - D28-104 (E1) G - BR
D28-106 (IGT3) - D28-104 (E1) P - BR
D28-105 (IGT4) - D28-104 (E1) Y - BR
D28-23 (IGF1) - D28-104 (E1) L - BR Ignition coil assembly
(ignition confirmation signal)		 Power switch on (IG) 4.5 to 5.5 V
Idling Pulse generation
(see waveform Fig 2)
D28-74 (NE+) - D28-120 (NE-) B - W Crankshaft position sensor Idling with warm engine Pulse generation
(see waveform Fig 3)
D28-76 (G2+) - D28-122 (G2-) B - W Camshaft position sensor Idling with warm engine Pulse generation
(see waveform Fig 4)
D28-85 (#10) - D28-109 (E01) Y - BR Fuel injector assembly Power switch on (IG) 11 to 14 V
D28-84 (#20) - D28-109 (E01) B - BR
D28-83 (#30) - D28-109 (E01) L - BR
D28-82 (#40) - D28-109 (E01) R - BR
D28-85 (#10) - D28-109 (E01) Y - BR Fuel injector assembly Idling Pulse generation
(see waveform Fig 5)
D28-84 (#20) - D28-109 (E01) B - BR
D28-83 (#30) - D28-109 (E01) L - BR
D28-82 (#40) - D28-109 (E01) R - BR
D28-18 (HA1A) - D28-46 (E04) G - BR Air fuel ratio sensor (sensor 1) heater Power switch on (IG) 11 to 14 V
Idling Pulse generation
(see waveform Fig 6)
D28-103 (A1A+) - D28-104 (E1) R - BR Air fuel ratio sensor (sensor 1) Idling 3.3 V* 1
D28-126 (A1A-) - D28-104 (E1) G - BR Air fuel ratio sensor (sensor 1) Idling 3.0 V* 1
D28-41 (HT1B) - D28-86 (E03) G - BR Heated oxygen sensor (sensor 2) heater Power switch on (IG) 11 to 14 V
Idling Below 3.0 V
D28-125 (OX1B) - D28-102 (O1B-) G - R Heated oxygen sensor (sensor 2) Engine speed maintained at 2500 RPM for 2 minutes after warming up engine Pulse generation
(see waveform Fig 7)
D28-87 (KNK1) - D28-110 (EKNK) B - W Knock control sensor Engine speed maintained at 2500 RPM after warming up engine Pulse generation
(see waveform Fig 8)
D28-64 (THW) - D28-65 (ETHW) BR - P Engine coolant temperature sensor Idling, Engine coolant temperature 80°C (176°F) 0.2 to 1.0 V
D28-116 (THA) - D28-93 (ETHA) P - BR Intake air temperature sensor (built into mass air flow meter sub-assembly) Idling, Intake air temperature 20°C (68°F) 0.5 to 3.4 V
D28-94 (VG) - D28-117 (E2G) B - W Mass air flow meter sub-assembly Idling, shift lever in N, A/C switch off 0.5 to 3.0 V
A57-36 (W) - D28-104 (E1) LG - BR MIL Power switch on (IG) (MIL goes on) Below 3.0 V
Power switch on (READY) 11 to 14 V
D28-90 (VTA1) - D28-111 (ETA) Y - G Throttle position sensor (for engine control) Accelerator pedal fully released
(Throttle valve fully closed)		 0.5 to 1.1 V
D28-89 (VTA2) - D28-111 (ETA) B - G Throttle position sensor (for sensor malfunction detection) Accelerator pedal fully released
(Throttle valve fully closed)		 2.1 to 3.1 V
D28-88 (VCTA) - D28-111 (ETA) R - G Power source of throttle position sensor (specific voltage) Power switch on (IG) 4.5 to 5.5 V
D28-21 (M+) - D28-19 (ME01) L - BR Throttle actuator Idling with warm engine Pulse generation
(see waveform Fig 9)
D28-20 (M-) - D28-19 (ME01) P - BR Throttle actuator Idling with warm engine Pulse generation
(see waveform Fig 10)
D28-28 (PRG) - D28-104 (E1) V - BR Purge VSV Power switch on (IG) 11 to 14 V
Idling, under purge control Pulse generation
(see waveform Fig 11)
A57-8 (FC) - D28-104 (E1) R - BR Fuel pump control Power switch on (IG) 11 to 14 V
Idling Below 1.5 V
A57-26 (TACH) - D28-104 (E1) B - BR Engine speed Idling Pulse generation
(see waveform Fig 12)
A57-7 (TC) - D28-104 (E1) P - BR Terminal TC of DLC3 Power switch on (IG) 11 to 14 V
D28-36 (OC1+) - D28-59 (OC1-) G - Y Camshaft timing oil control valve assembly Idling Pulse generation
(see waveform Fig 13)
A57-13 (CANH) - D28-104 (E1) P - BR CAN communication line Engine stopped and power switch on (IG) Pulse generation
(see waveform Fig 14)
A57-5 (CANL) - D28-104 (E1) V - BR CAN communication line Engine stopped and power switch on (IG) Pulse generation
(see waveform Fig 15)
A57-12 (CANP) - D28-104 (E1) B - BR CAN communication line Engine stopped and power switch on (IG) Pulse generation
(see waveform Fig 14)
A57-4 (CANN) - D28-104 (E1) W - BR CAN communication line Engine stopped and power switch on (IG) Pulse generation
(see waveform Fig 15)
A57-28 (IGSW) - D28-104 (E1) W - BR Power switch Power switch on (IG) 11 to 14 V
A57-6 (MREL) - D28-104 (E1) G - BR EFI MAIN relay Power switch on (IG) 11 to 14 V
D28-99 (VCV1) - D28-104 (E1) R - BR Power source of camshaft position sensor Power switch on (IG) 4.5 to 5.5 V
A57-10 (WPO) - D28-104 (E1) L - BR Engine water pump assembly Idling with warm engine Pulse generation
(see waveform Fig 16)
A57-11 (WPI) - D28-104 (E1) G - BR Engine water pump assembly Idling with warm engine Pulse generation
(see waveform Fig 17)
D28-72 (VCPM) - D28-71 (EPIM) L - Y Manifold absolute pressure sensor Power switch on (IG) 4.5 to 5.5 V
D28-69 (PIM) - D28-71 (EPIM) B - Y Manifold absolute pressure sensor Power switch on (IG) 3.0 to 5.5 V
D28-45 (EGR1) - D28-104 (E1) R - BR EGR valve assembly EGR valve operating Pulse generation
(see waveform Fig 18)
D28-44 (EGR2) - D28-104 (E1) V - BR EGR valve assembly EGR valve operating Pulse generation
(see waveform Fig 18)
D28-43 (EGR3) - D28-104 (E1) Y - BR EGR valve assembly EGR valve operating Pulse generation
(see waveform Fig 18)
D28-42 (EGR4) - D28-104 (E1) LG - BR EGR valve assembly EGR valve operating Pulse generation
(see waveform Fig 18)
D28-48 (G2O) - D28-104 (E1) Y - BR Camshaft revolution signal Idling Pulse generation
(see waveform Fig 19)
A57-22 (FANH) - D28-104 (E1) LG - BR Cooling fan relay Power switch on (IG) 11 to 14 V
A57-21 (FANL) - D28-104 (E1) L - BR Cooling fan relay Power switch on (IG) 11 to 14 V
A57-46 (PWMS) - D28-104 (E1) G - BR Power mode switch Power switch on (IG) 11 to 14 V
Power switch on (IG), Power mode switch pressed 0 to 1.5 V
D28-104 (E1) - Body ground BR - Body ground Ground Always Below 1 Ω
D28-109 (E01) - Body ground BR - Body ground Ground Always Below 1 Ω
D28-81 (E02) - Body ground W-B - Body ground Ground Always Below 1 Ω
D28-86 (E03) - Body ground BR - Body ground Ground Always Below 1 Ω
D28-46 (E04) - Body ground BR - Body ground Ground Always Below 1 Ω
A57-32 (EC) - Body ground W-B - Body ground Ground Always Below 1 Ω
D28-22 (GE01) - D28-104 (E1) W-B - BR Shield earth (ground) circuit of throttle actuator Always Below 1 V
A57-42 (VPMP) - D28-104 (E1) B - BR Vent valve (built into canister pump module) Power switch on (IG) 11 to 14 V
A57-34 (MPMP) - D28-104 (E1) L - BR Leak detection pump (built into canister pump module) Leak detection pump off Below 3 V
Leak detection pump on 9 to 14 V
D28-113 (VCPP) - D28-112 (EPPM) GR - LG Power source for canister pressure sensor (specific voltage) Power switch on (IG) 4.5 to 5.5 V
D28-114 (PPMP) - D28-112 (EPPM) W - LG Canister pressure sensor (built into canister pump module) Power switch on (IG) 3 to 3.6 V

HINT:

* 1: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

  1. WAVEFORM 1
    Fig 2: Identifying Waveform 1
    GTY340846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    IGNITION COIL IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITION COIL IGF SIGNAL (FROM IGNITER TO ECM)

    Terminal No. (symbol) Tool Setting Condition
    D28-108 (IGT1) - D28-104 (E1) 2 V/DIV., 20 ms./DIV. Idling
    D28-107 (IGT2) - D28-104 (E1) 2 V/DIV., 20 ms./DIV. Idling
    D28-106 (IGT3) - D28-104 (E1) 2 V/DIV., 20 ms./DIV. Idling
    D28-105 (IGT4) - D28-104 (E1) 2 V/DIV., 20 ms./DIV. Idling
    D28-23 (IGF1) - D28-104 (E1) 2 V/DIV., 20 ms./DIV. Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.

  2. WAVEFORM 2
    Fig 3: Identifying Waveform 2
    GTY341548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

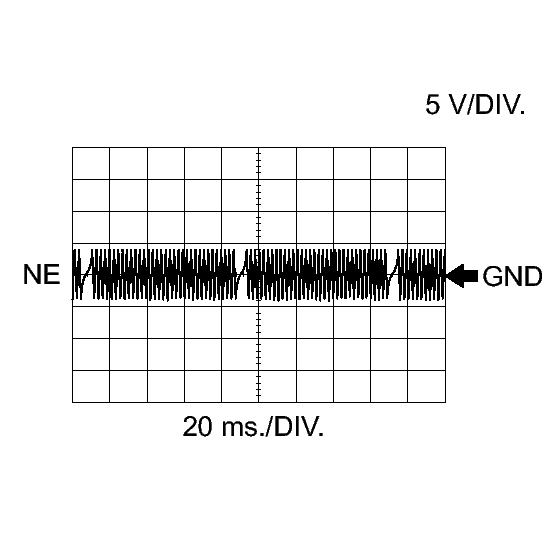

    CRANKSHAFT POSITION SENSOR SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-74 (NE+) - D28-120 (NE-) 5 V/DIV., 20 ms./DIV. Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

  3. WAVEFORM 3
    Fig 4: Identifying Waveform 3
    GTY339094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

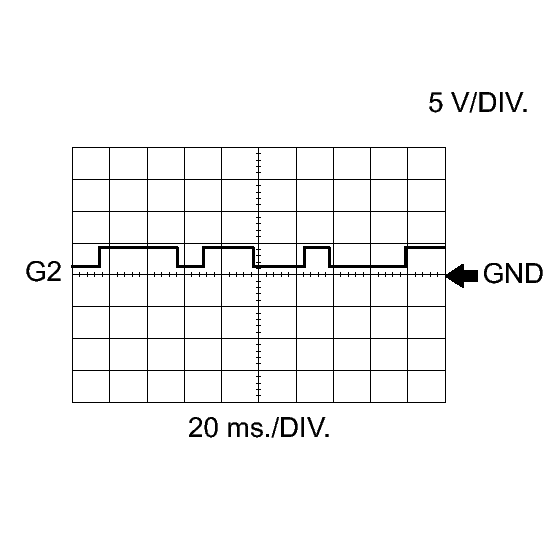

    CAMSHAFT POSITION SENSOR SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-76 (G2+) - D28-122 (G2-) 5 V/DIV., 20 ms./DIV. Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

  4. WAVEFORM 4
    Fig 5: Identifying Waveform 4
    GTY334571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

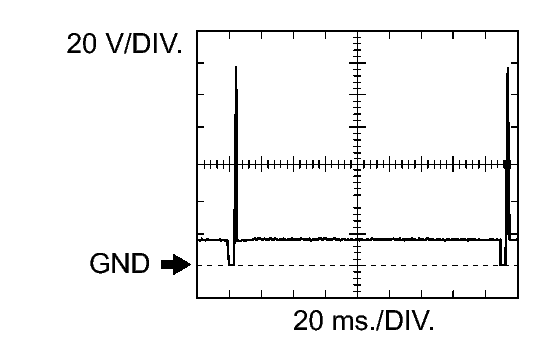

    NO. 1 (TO NO. 4) FUEL INJECTOR ASSEMBLY SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-85 (#10) - D28-109 (E01) 20 V/DIV., 20 ms./DIV. Idling
    D28-84 (#20) - D28-109 (E01) 20 V/DIV., 20 ms./DIV. Idling
    D28-83 (#30) - D28-109 (E01) 20 V/DIV., 20 ms./DIV. Idling
    D28-82 (#40) - D28-109 (E01) 20 V/DIV., 20 ms./DIV. Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.

  5. WAVEFORM 5
    Fig 6: Identifying Waveform 5
    GTY238005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

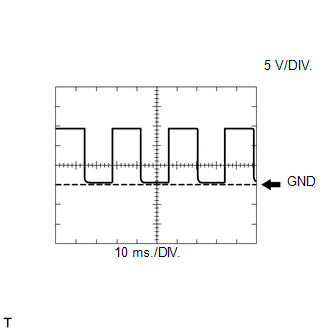

    AIR FUEL RATIO SENSOR (SENSOR 1) HEATER SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-18 (HA1A) - D28-46 (E04) 5 V/DIV., 10 ms./DIV. Idling

    HINT:

    The wavelength varies in accordance with the engine operating condition.

  6. WAVEFORM 6
    Fig 7: Identifying Waveform 6
    GTY331483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

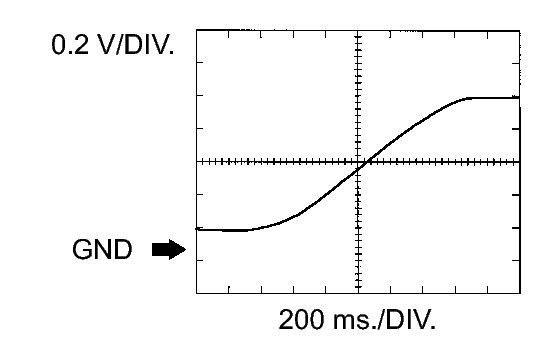

    HEATED OXYGEN SENSOR (SENSOR 2) SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-125 (OX1B) - D28-102 (O1B-) 0.2 V/DIV., 200 ms./DIV. Engine speed maintained at 2500 RPM for 2 minutes after warming up engine

    HINT:

    In the Data List, the items O2S B1S2 show the values input to the ECM from the heated oxygen sensor.

  7. WAVEFORM 7
    Fig 8: Identifying Waveform 7
    GTY238464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    KNOCK CONTROL SENSOR SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-87 (KNK1) - D28-110 (EKNK) 1 V/DIV., 1 ms./DIV. Engine speed maintained at 2500 RPM after warming up engine

    HINT:

    • The wavelength becomes shorter as the engine speed increases.
    • The waveforms and amplitudes displayed differ slightly depending on the vehicle condition.
  8. WAVEFORM 8
    Fig 9: Identifying Waveform 8
    GTY290954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-21 (M+) - D28-19 (ME01) 5 V/DIV., 1 ms./DIV. Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

  9. WAVEFORM 9
    Fig 10: Identifying Waveform 9
    GTY292199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-20 (M-) - D28-19 (ME01) 5 V/DIV., 1 ms./DIV. Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

  10. WAVEFORM 10
    Fig 11: Identifying Waveform 10
    GTY235665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PURGE VSV SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-28 (PRG) - D28-104 (E1) 10 V/DIV., 20 ms./DIV. Idling, under purge control

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

  11. WAVEFORM 11
    Fig 12: Identifying Waveform 11
    GTY338566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL

    Terminal No. (Symbol) Tool Setting Condition
    A57-26 (TACH) - D28-104 (E1) 5 V/DIV., 10 ms./DIV. Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.

  12. WAVEFORM 12
    Fig 13: Identifying Waveform 12
    GTY219442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-36 (OC1+) - D28-59 (OC1-) 5 V/DIV., 1 ms./DIV. Idling
  13. WAVEFORM 13
    Fig 14: Identifying Waveform 13
    GTY222725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)

    Terminal No. (symbol) Tool Setting Condition
    A57-13 (CANH) - D28-104 (E1) 1 V/DIV., 10 μsec./DIV. Engine stopped and power switch on (IG)
    A57-12 (CANP) - D28-104 (E1) 1 V/DIV., 10 μsec./DIV. Engine stopped and power switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

  14. WAVEFORM 14
    Fig 15: Identifying Waveform 14
    GTY229520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL (REFERENCE)

    Terminal No. (symbol) Tool Setting Condition
    A57-5 (CANL) - D28-104 (E1) 1 V/DIV., 10 μsec./DIV. Engine stopped and power switch on (IG)
    A57-4 (CANN) - D28-104 (E1) 1 V/DIV., 10 μsec./DIV. Engine stopped and power switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

  15. WAVEFORM 15
    Fig 16: Identifying Waveform 15
    GTY229753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE WATER PUMP ASSEMBLY SIGNAL (FROM ECM TO ENGINE WATER PUMP ASSEMBLY)

    Terminal No. (symbol) Tool Setting Condition
    A57-10 (WPO) - D28-104 (E1) 5 V/DIV., 20 ms./DIV. Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine water pump assembly speed increases.

  16. WAVEFORM 16
    Fig 17: Identifying Waveform 16
    GTY229753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE WATER PUMP ASSEMBLY SIGNAL (FROM ENGINE WATER PUMP ASSEMBLY TO ECM)

    Terminal No. (symbol) Tool Setting Condition
    A57-11 (WPI) - D28-104 (E1) 5 V/DIV., 20 ms./DIV. Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine water pump assembly speed increases.

  17. WAVEFORM 17
    Fig 18: Identifying Waveform 17
    GTY224368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    EGR VALVE ASSEMBLY SIGNAL

    Terminal No. (symbol) Tool Setting Condition
    D28-45 (EGR1) - D28-104 (E1) 20 V/DIV., 50 ms./DIV. EGR valve operating
    D28-44 (EGR2) - D28-104 (E1) 20 V/DIV., 50 ms./DIV. EGR valve operating
    D28-43 (EGR3) - D28-104 (E1) 20 V/DIV., 50 ms./DIV. EGR valve operating
    D28-42 (EGR4) - D28-104 (E1) 20 V/DIV., 50 ms./DIV. EGR valve operating
  18. WAVEFORM 18
    Fig 19: Identifying Waveform 18
    GTY229753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAMSHAFT REVOLUTION SIGNAL FROM ECM TO POWER MANAGEMENT CONTROL ECU AND INVERTER WITH CONVERTER ASSEMBLY

    Terminal No. (symbol) Tool Setting Condition
    D28-48 (G2O) - D28-104 (E1) 5 V/DIV., 20 ms./DIV. Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.

· About lemon-mirror
