OEM System Circuits: 4WD: Notes

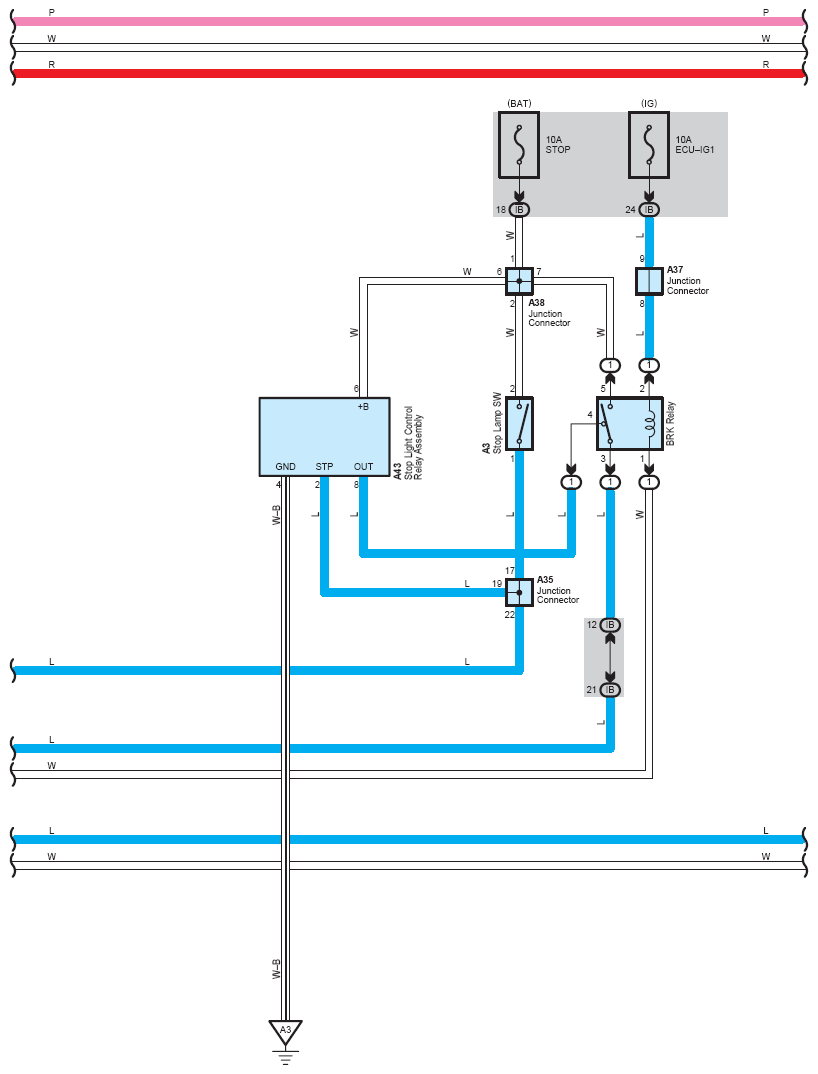

Fig 1: 4WD System Wiring Diagram (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

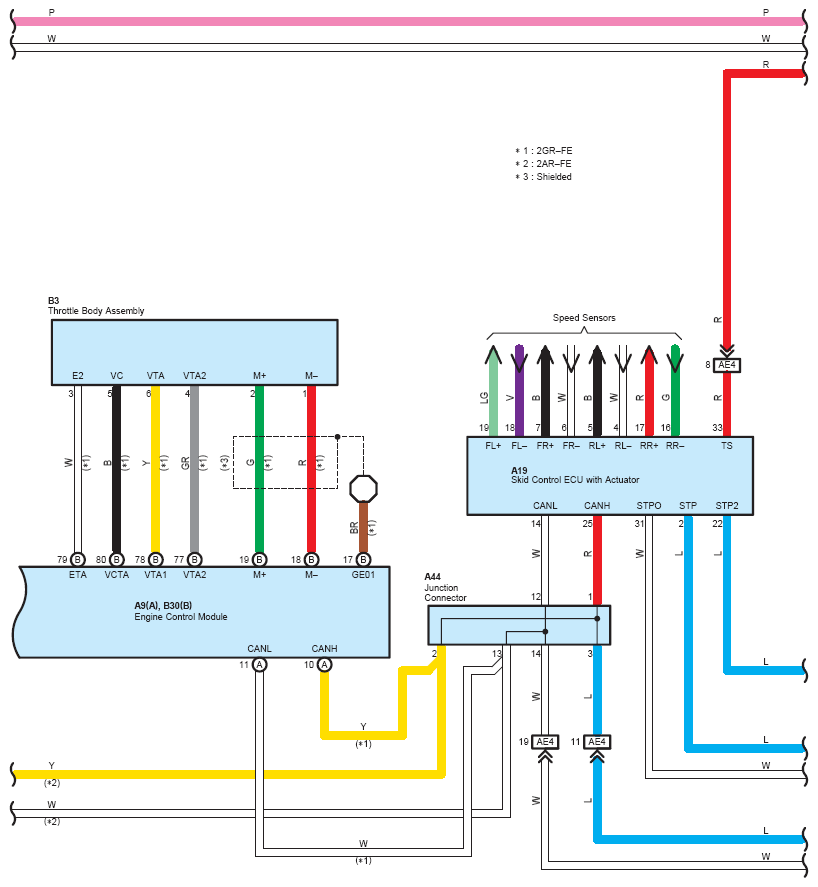

Fig 2: 4WD System Wiring Diagram (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

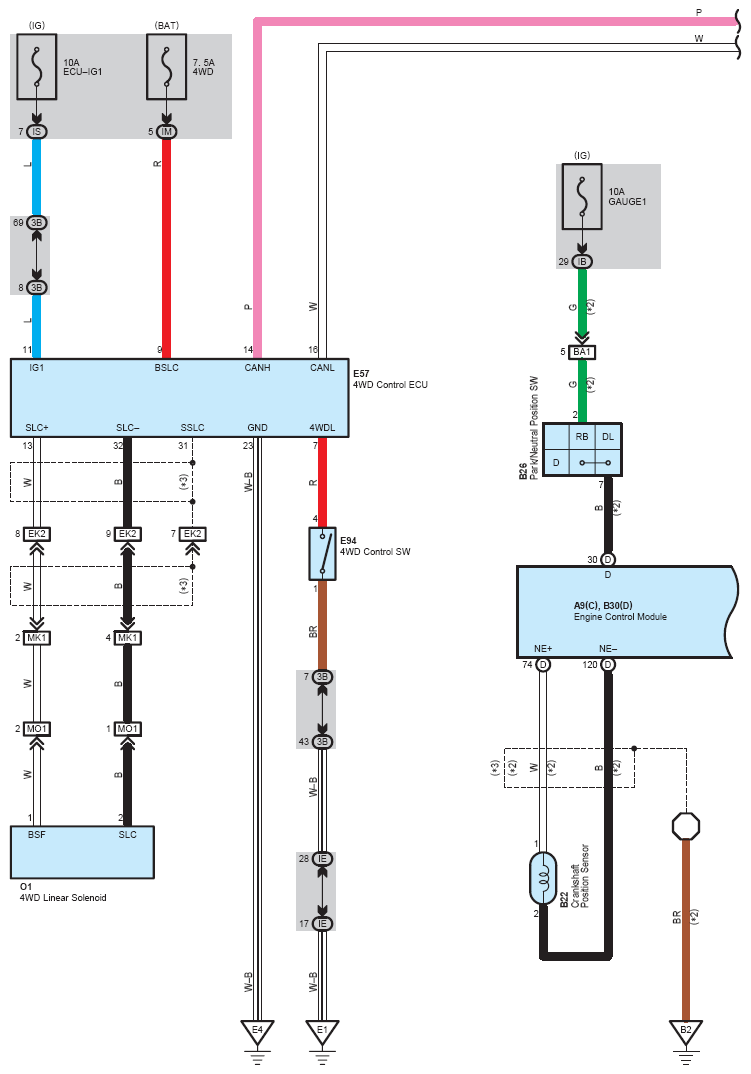

Fig 3: 4WD System Wiring Diagram (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

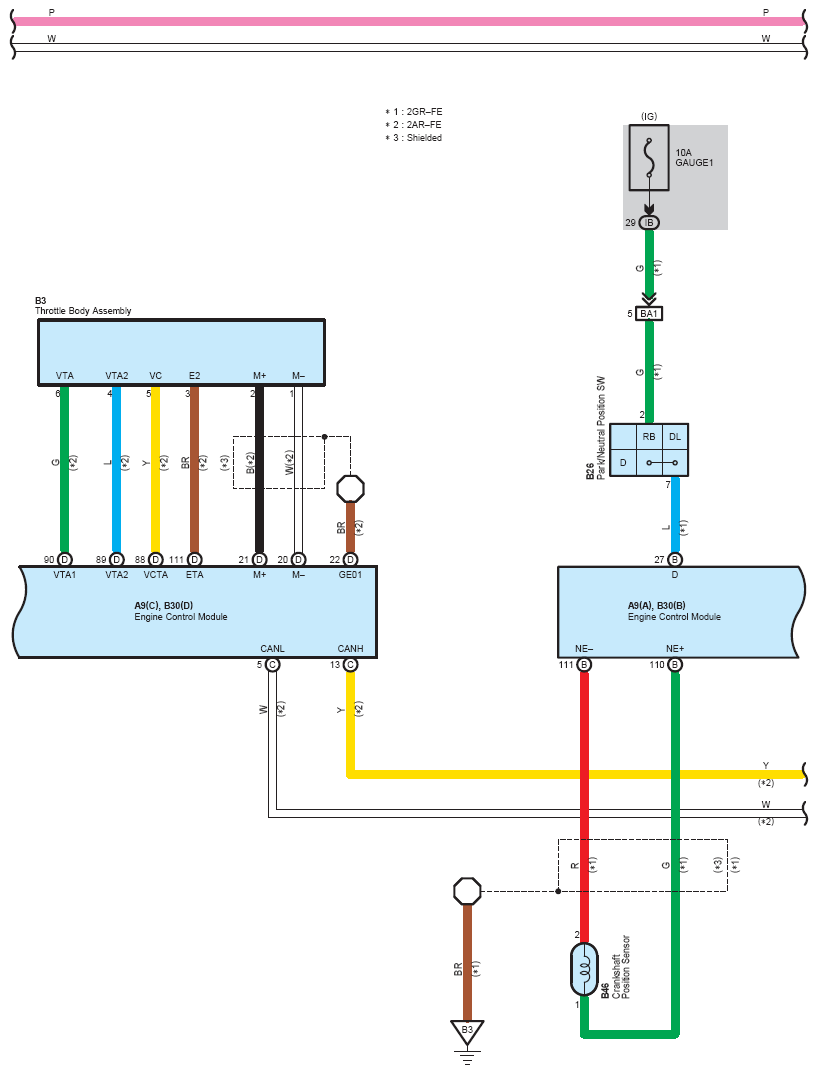

Fig 4: 4WD System Wiring Diagram (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

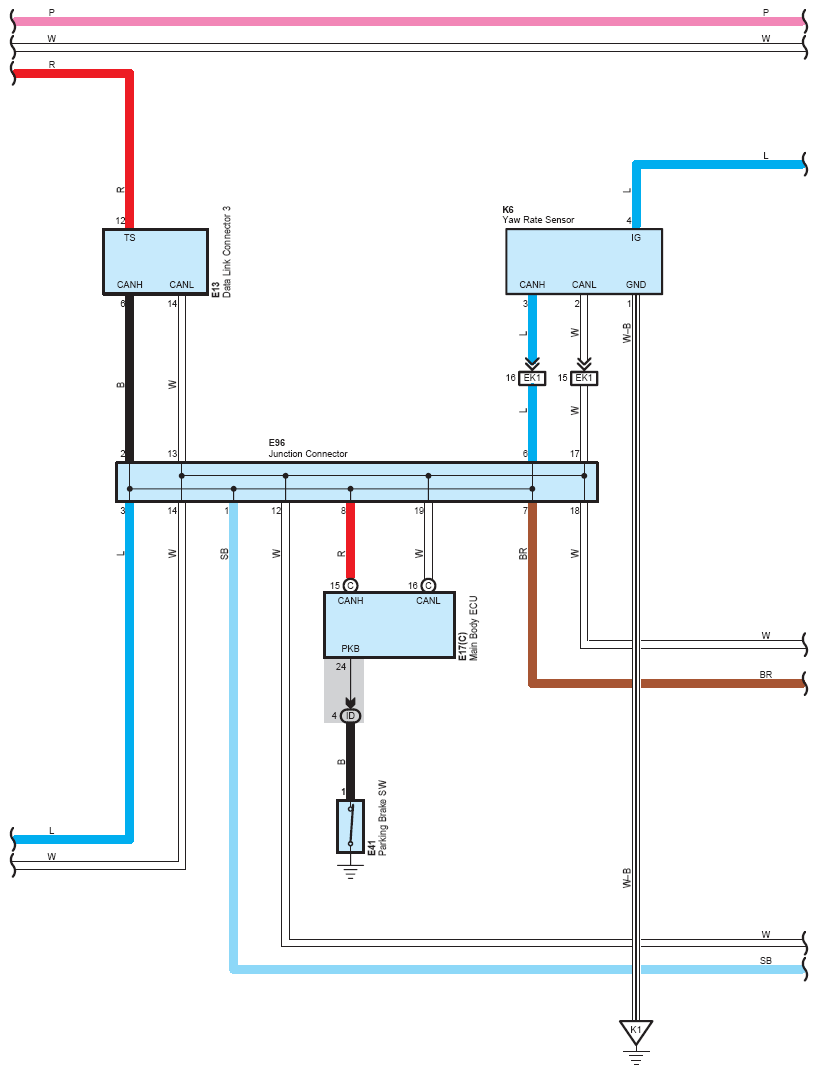

Fig 5: 4WD System Wiring Diagram (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

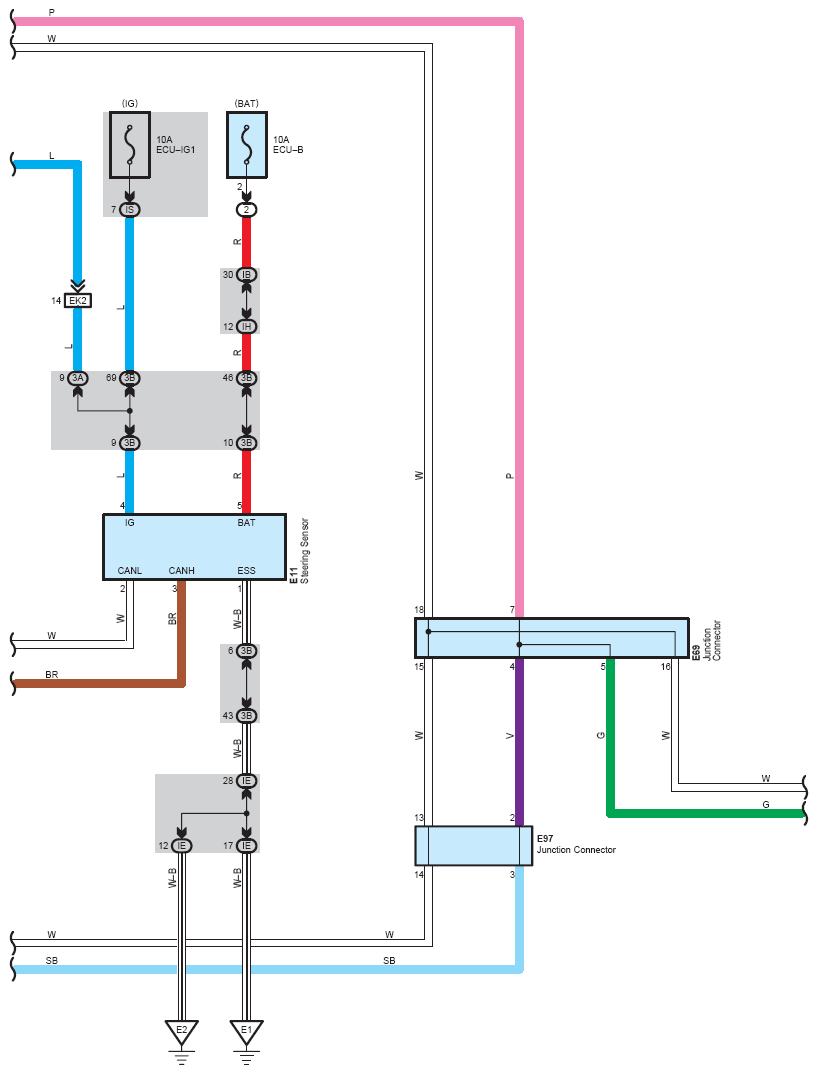

Fig 6: 4WD System Wiring Diagram (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

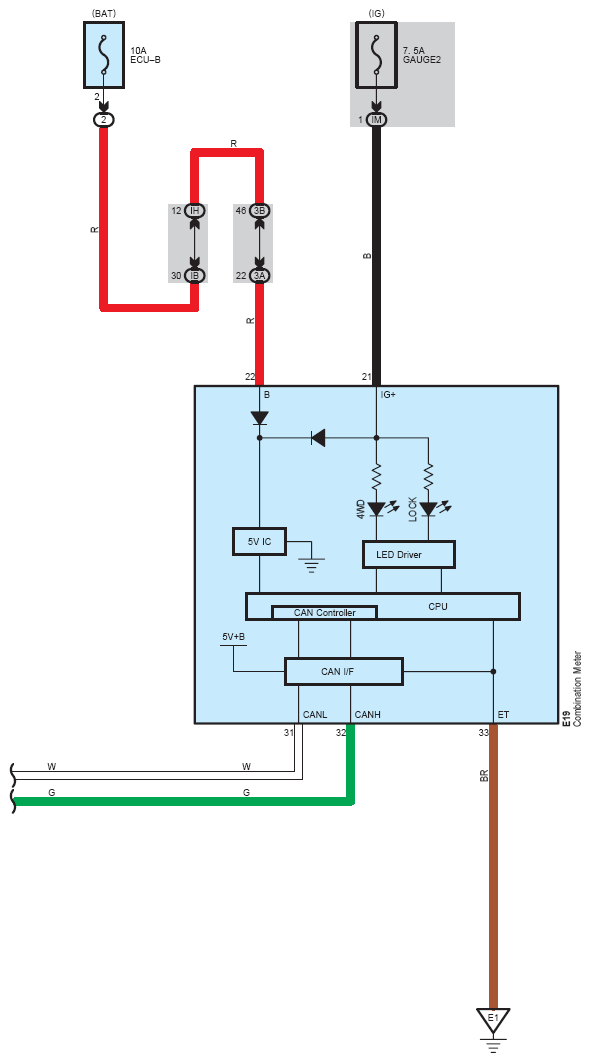

Fig 7: 4WD System Wiring Diagram (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
