OEM System Circuits: EPS: Notes

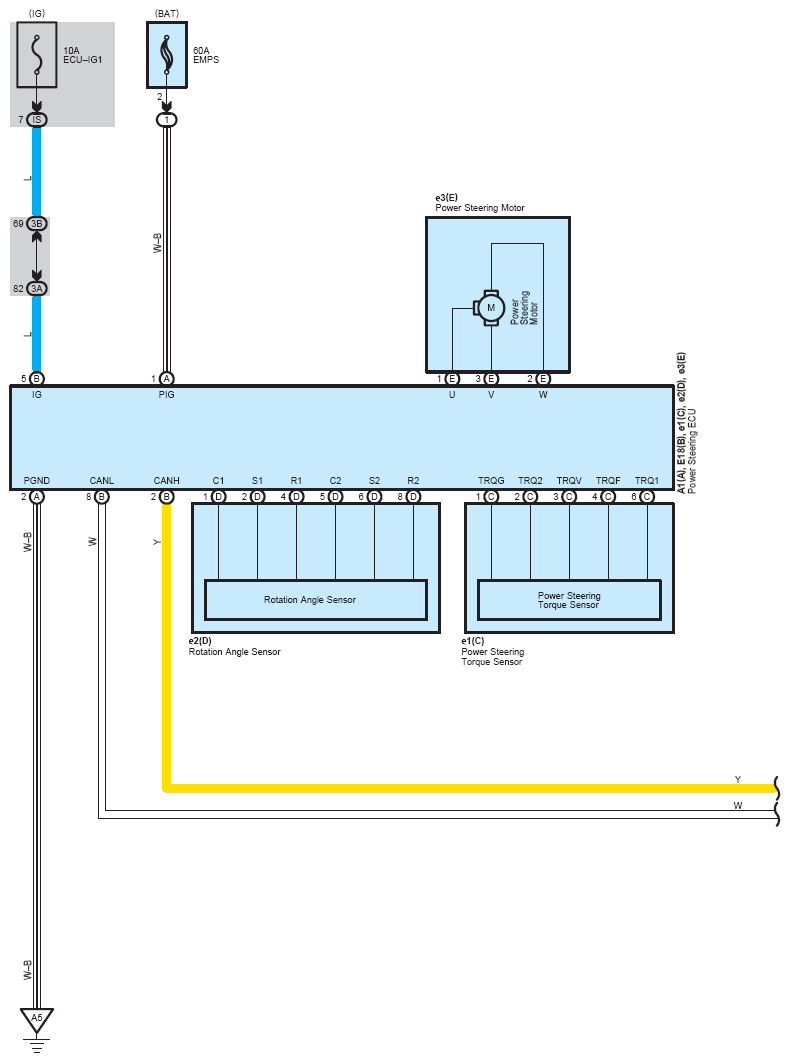

Fig 1: EPS System Wiring Diagram (1 Of 4)
G08845312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

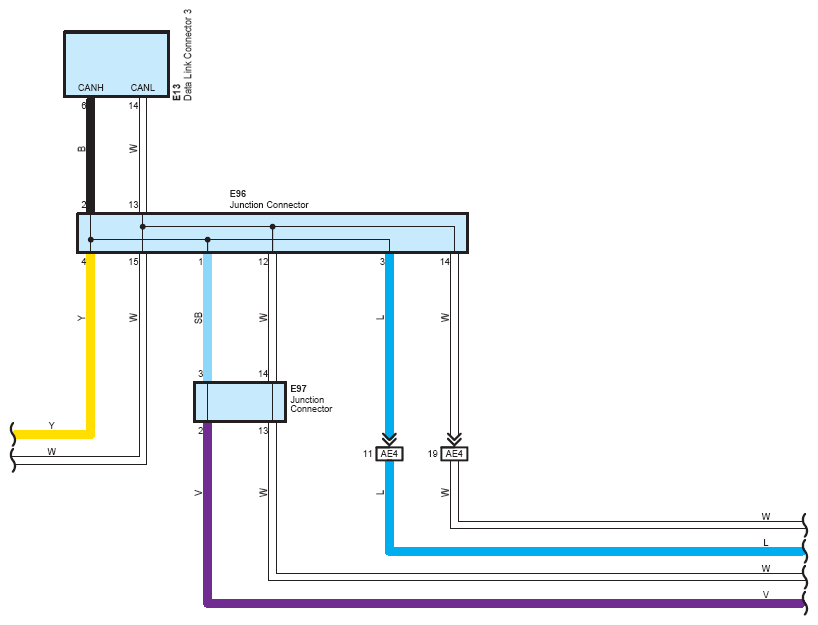

Fig 2: EPS System Wiring Diagram (2 Of 4)
G08845313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: EPS System Wiring Diagram (3 Of 4)
G08845314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

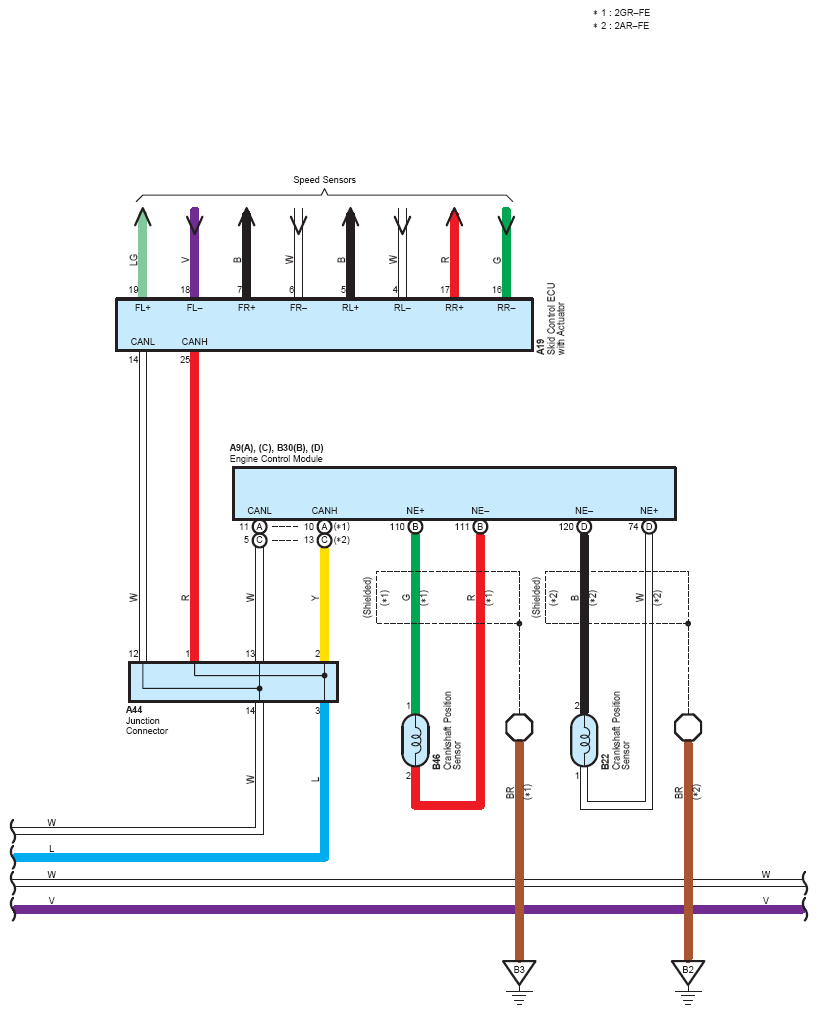

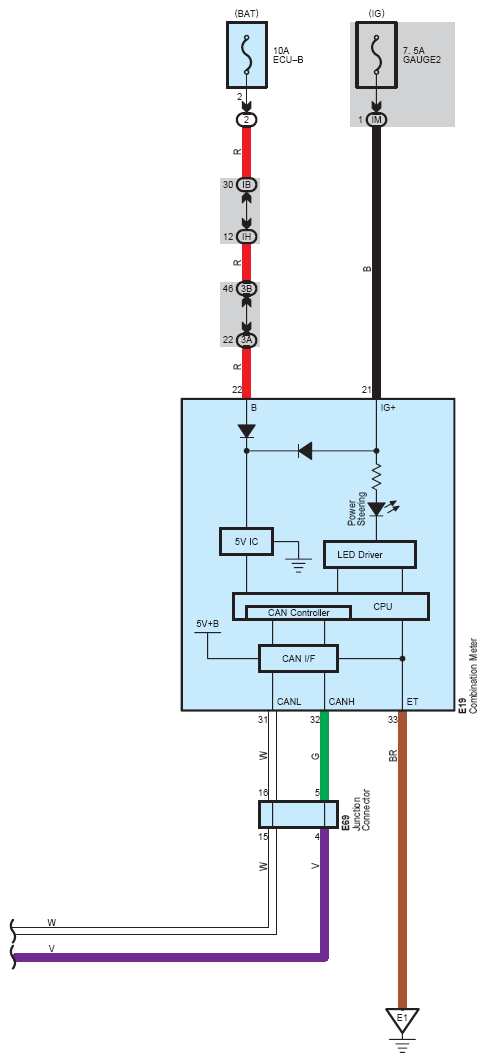

Fig 4: EPS System Wiring Diagram (4 Of 4)
G08845315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
