Front Window Deicer: Notes

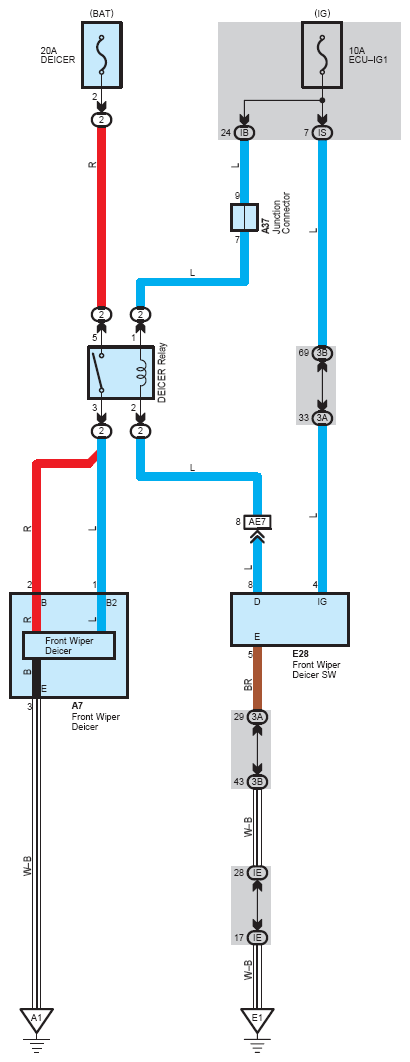

Fig 1: Front Window Deicer System Wiring Diagram
G08845261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
