Manual Air Conditioning: Notes

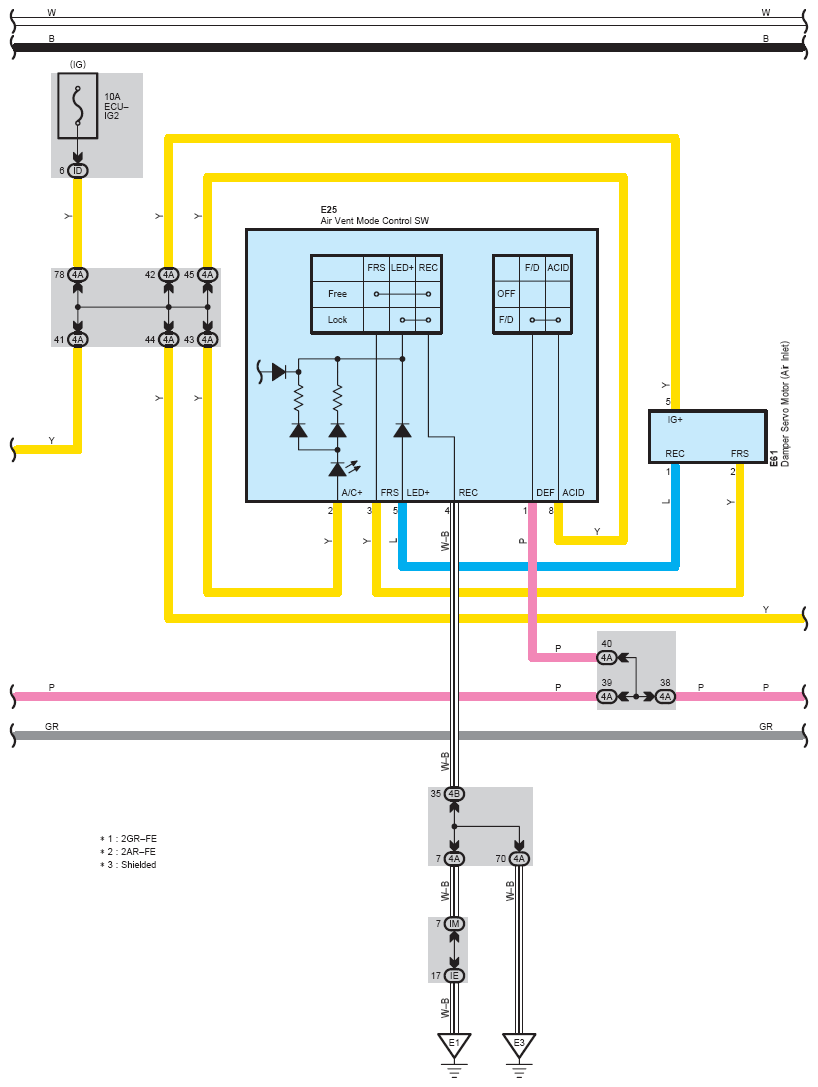

Fig 1: Manual Air Conditioning System Wiring Diagram (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

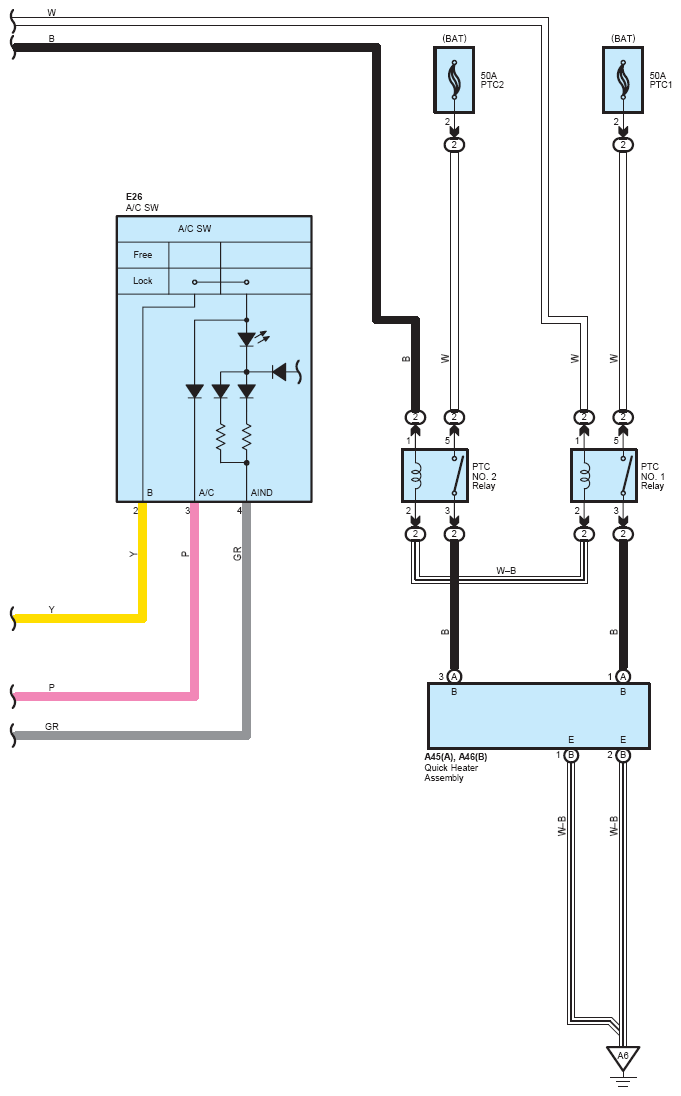

Fig 2: Manual Air Conditioning System Wiring Diagram (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

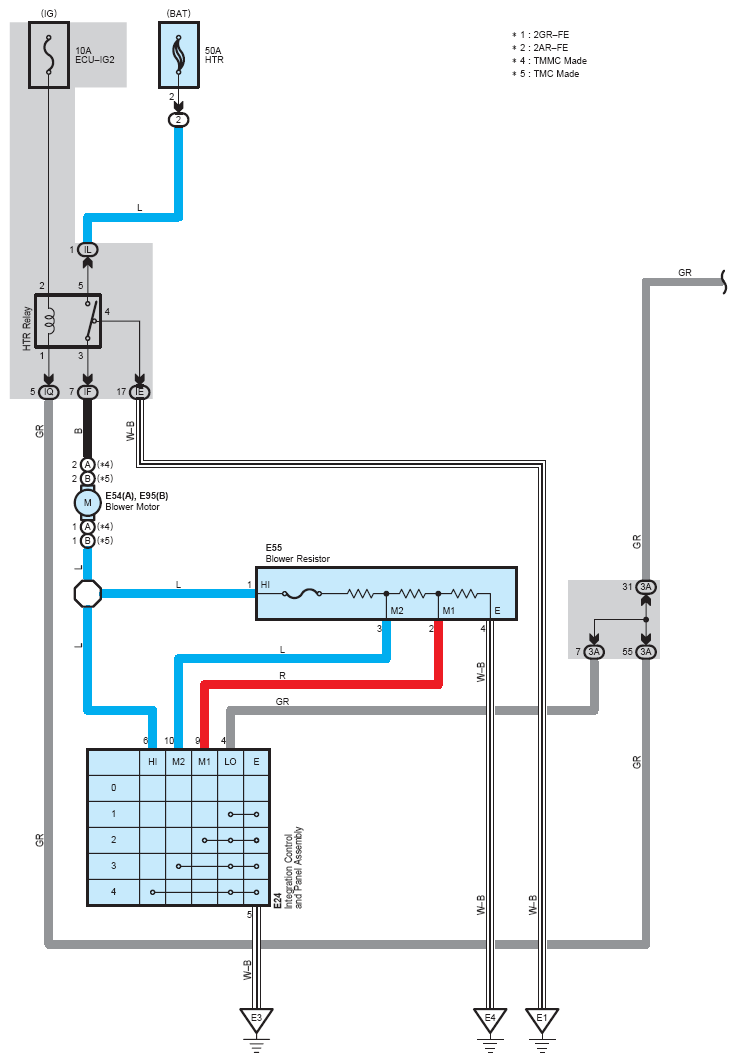

Fig 3: Manual Air Conditioning System Wiring Diagram (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

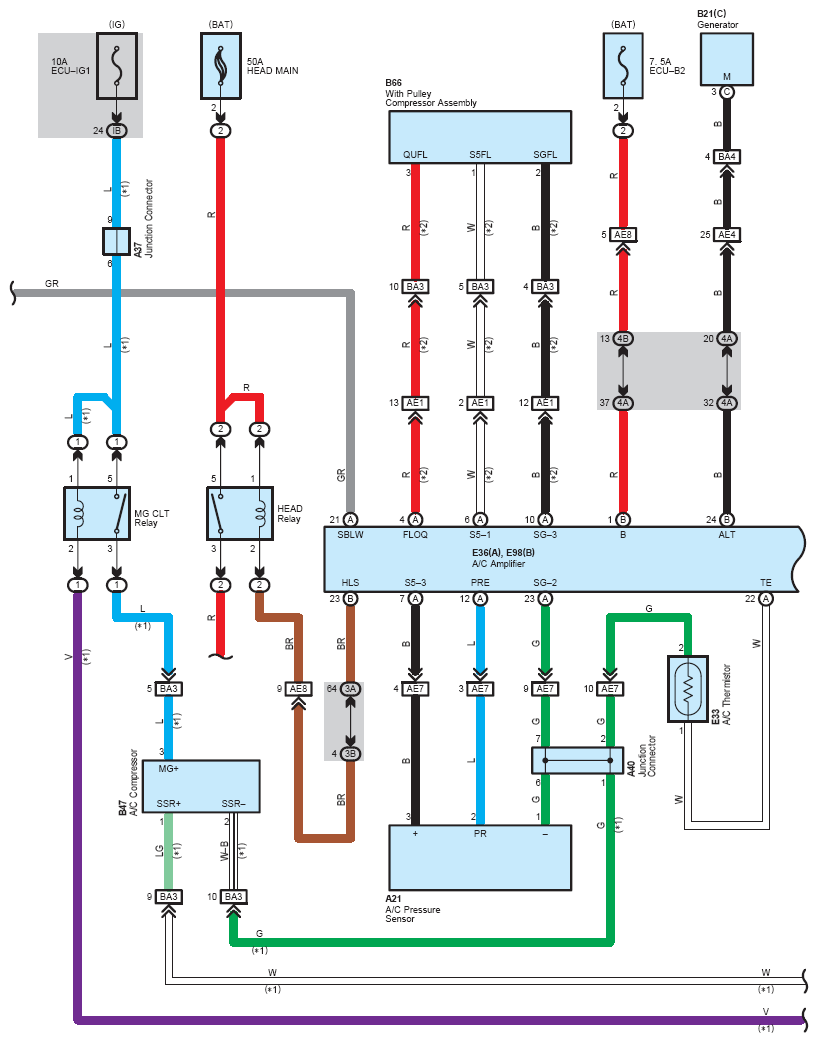

Fig 4: Manual Air Conditioning System Wiring Diagram (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

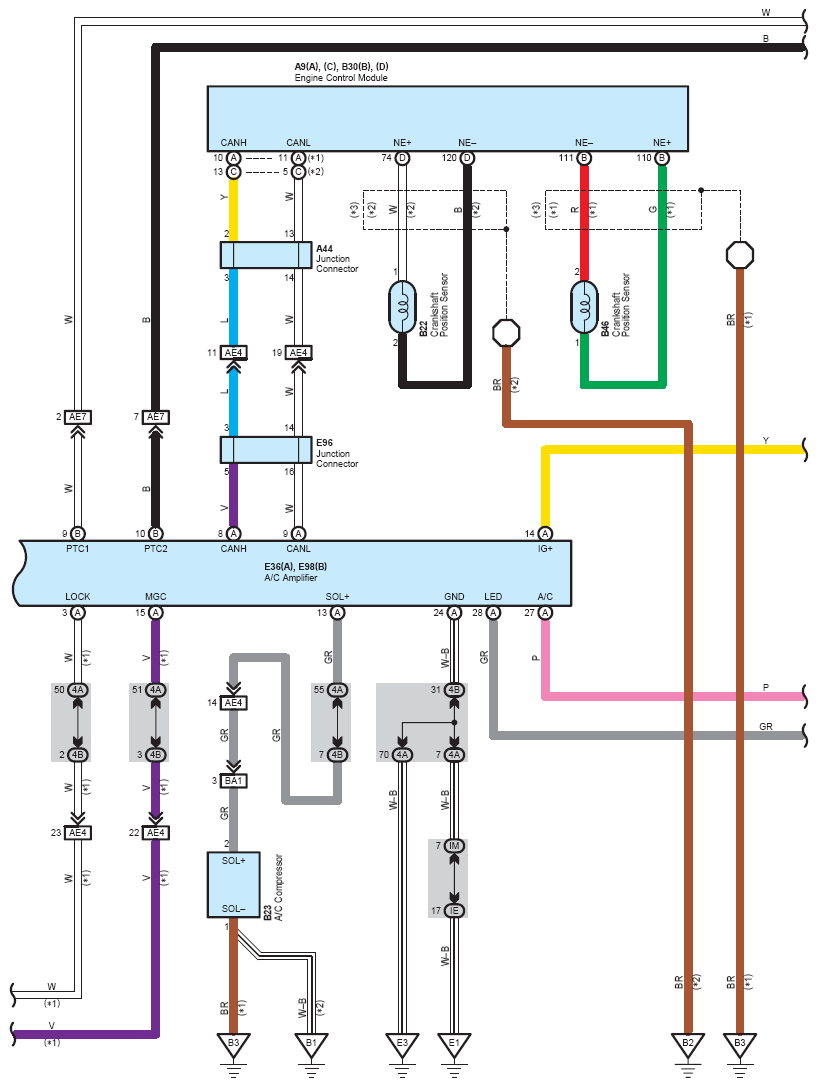

Fig 5: Manual Air Conditioning System Wiring Diagram (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
