Audio System (S/D): Notes

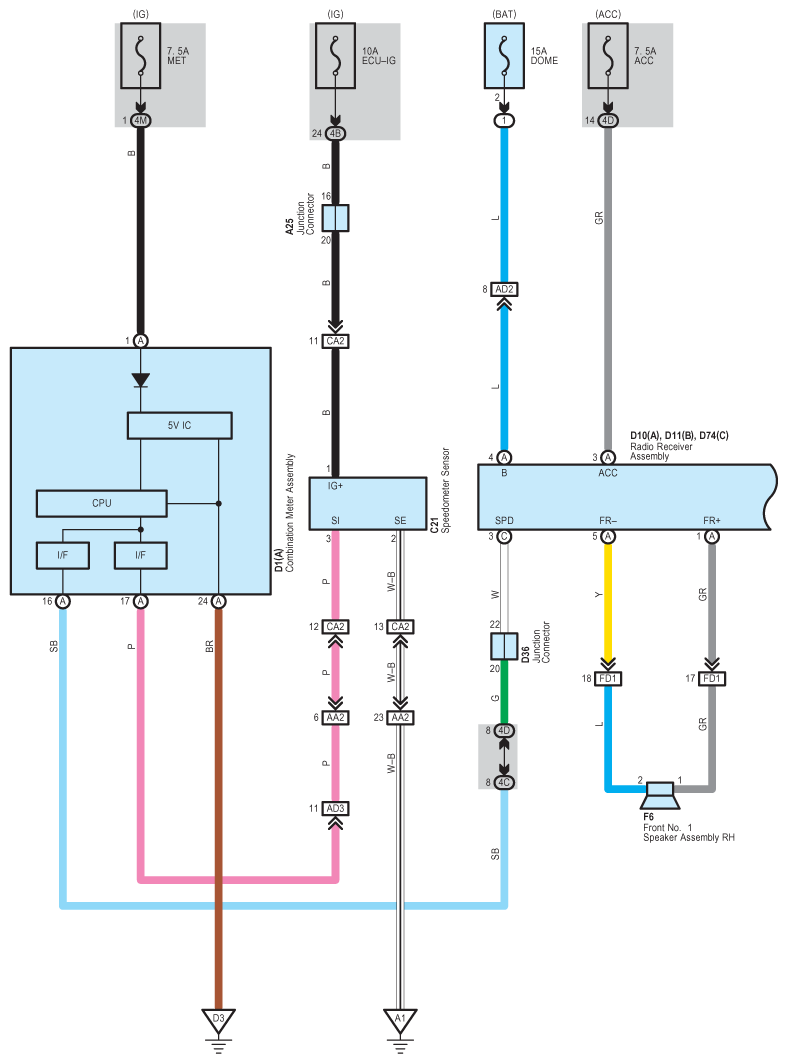

Fig 1: Audio System (S/D) - Circuit Diagram (1 Of 2)
G08949472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

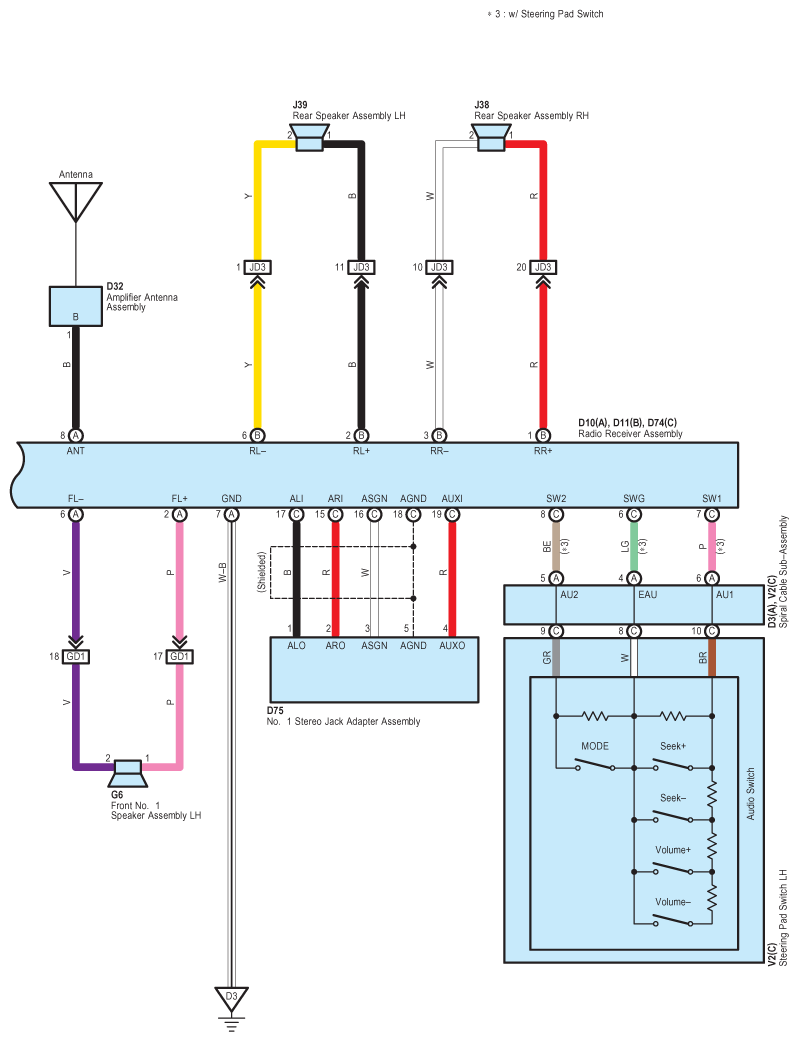

Fig 2: Audio System (S/D) - Circuit Diagram (2 Of 2)
G08949473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
