Engine Immobilizer System (S/D): Notes

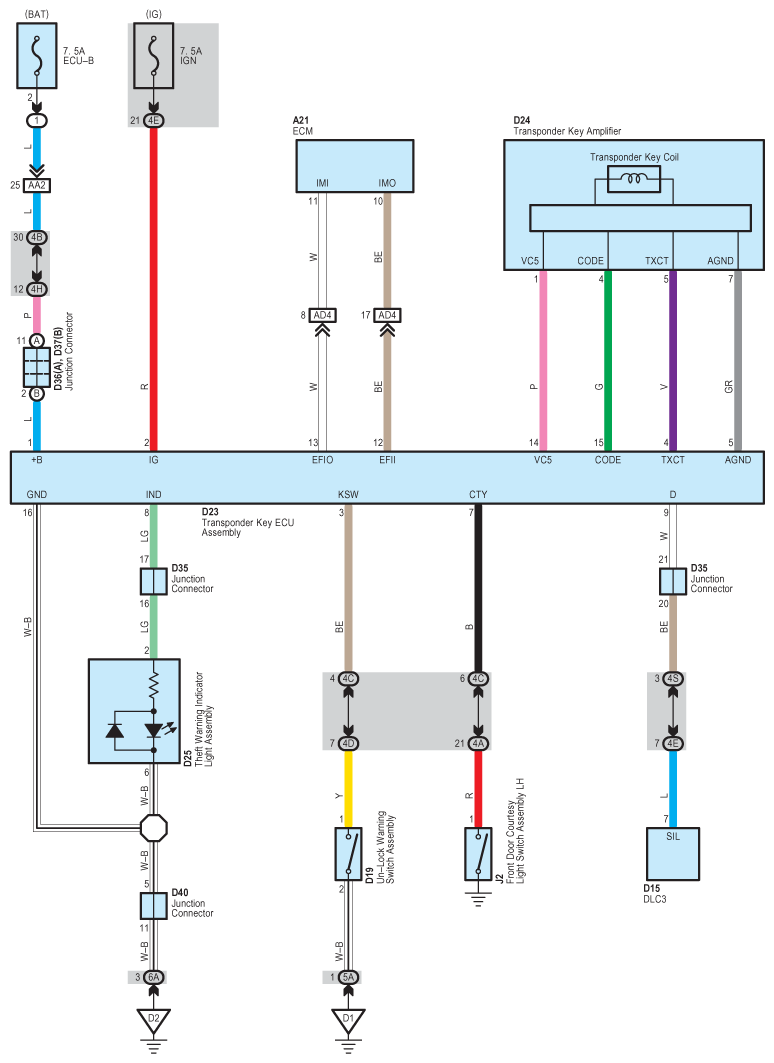

Fig 1: Engine Immobilizer System (S/D) - Circuit Diagram

G08949404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
