Interior Light (S/D): Notes

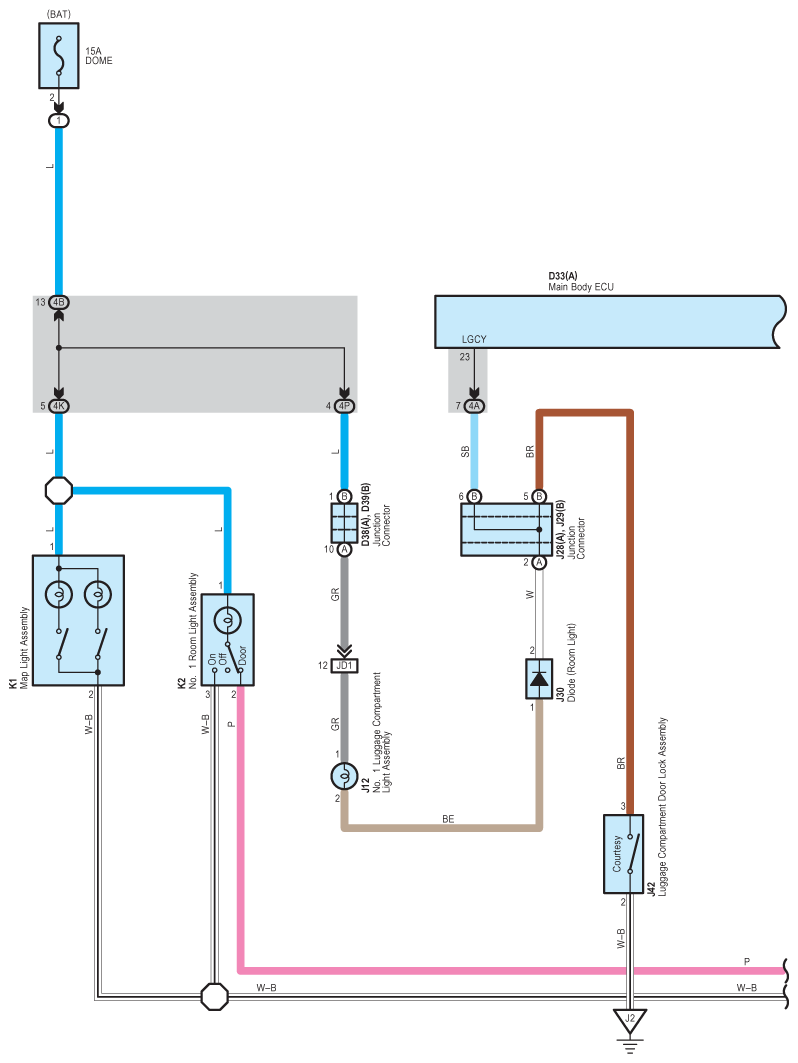

Fig 1: Interior Light (S/D) - Circuit Diagram (1 Of 2)
G08949412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

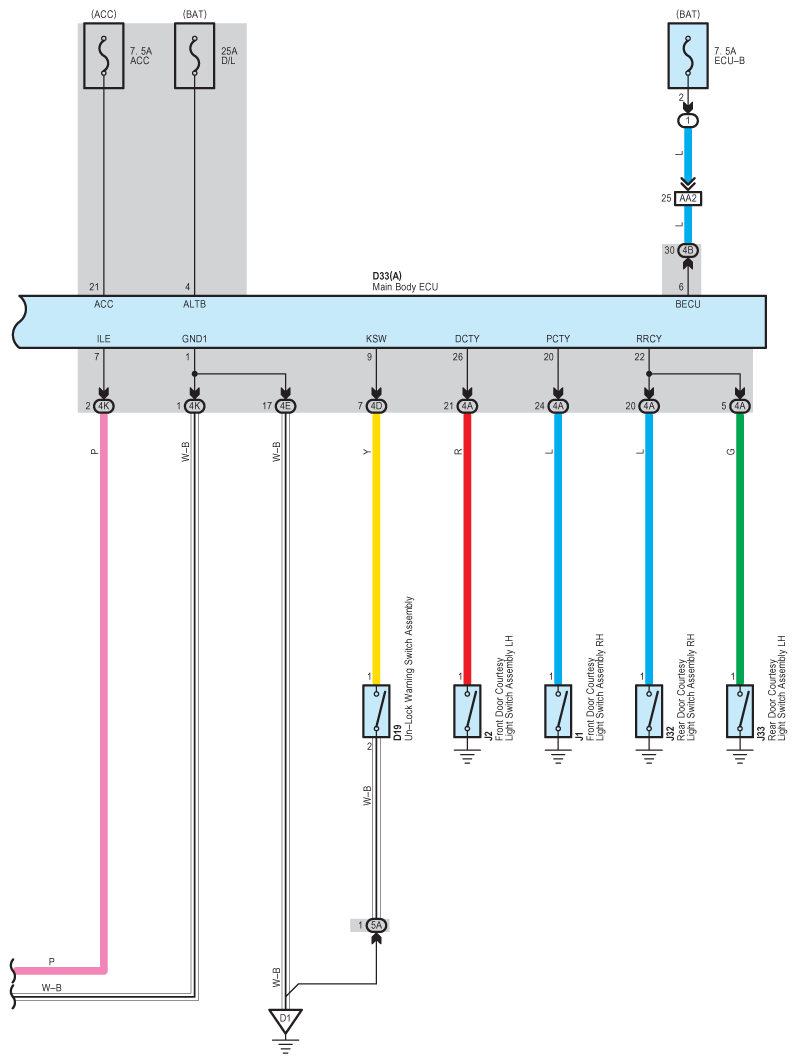

Fig 2: Interior Light (S/D) - Circuit Diagram (2 Of 2)
G08949413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
