Remote Control Mirror (H/B)
>>
Notes
Remote Control Mirror (H/B): Notes

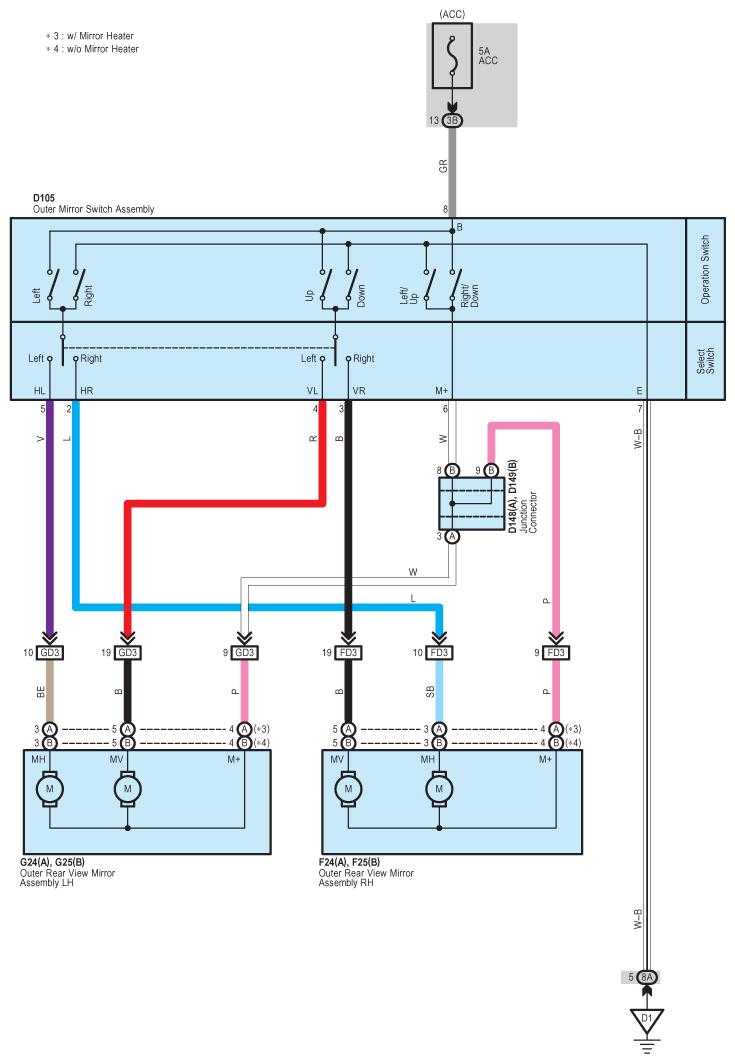

Fig 1: Remote Control Mirror (H/B) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
