Trailer Towing: Notes

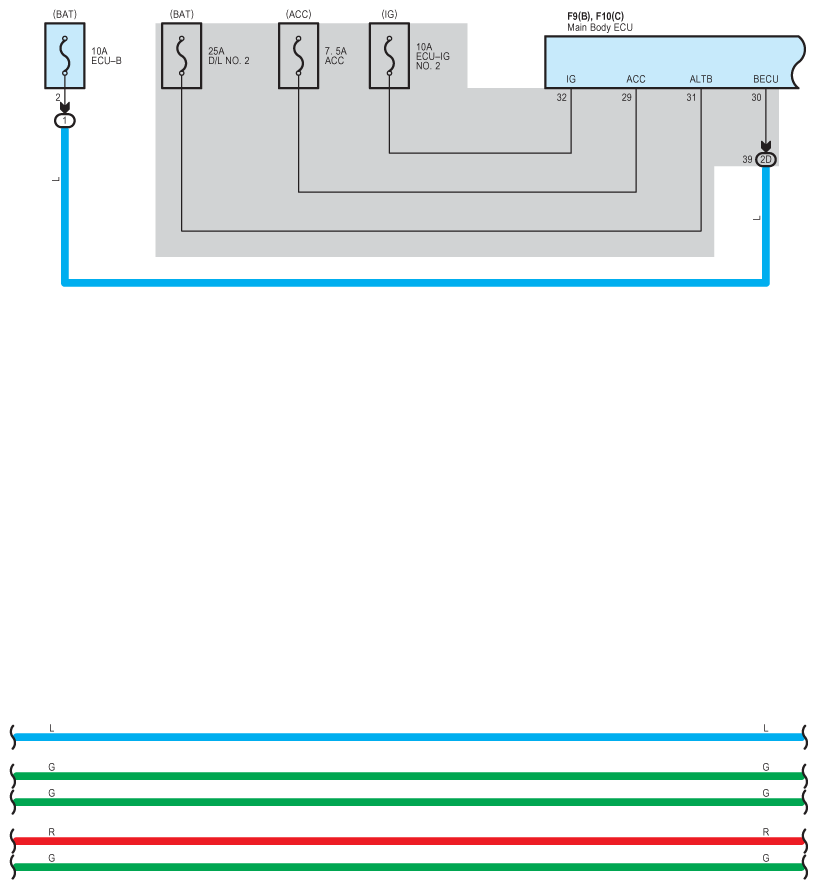

Fig 1: Trailer Towing - Circuit Diagram (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

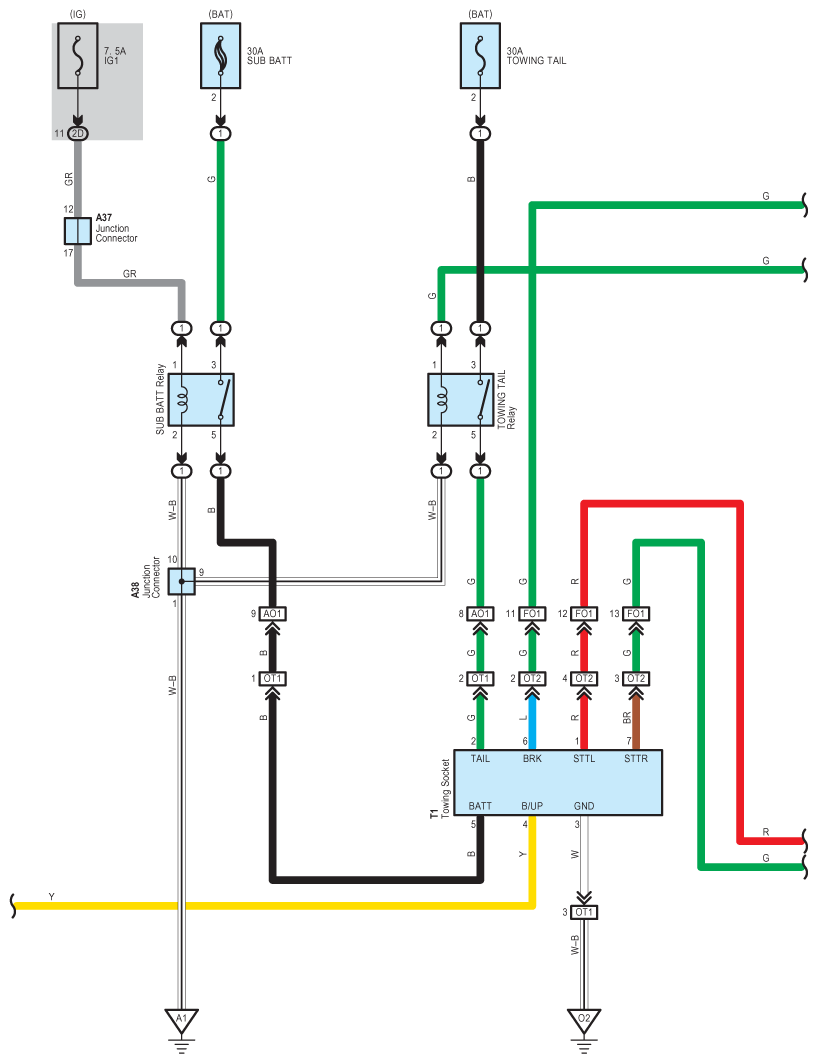

Fig 2: Trailer Towing - Circuit Diagram (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

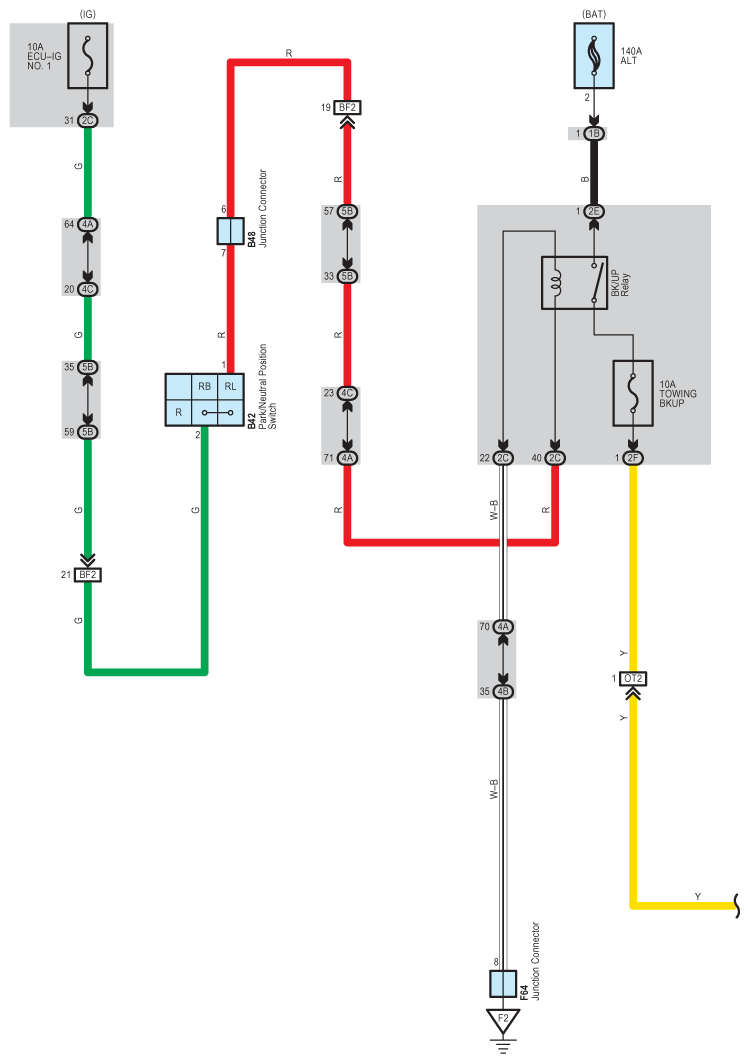

Fig 3: Trailer Towing - Circuit Diagram (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

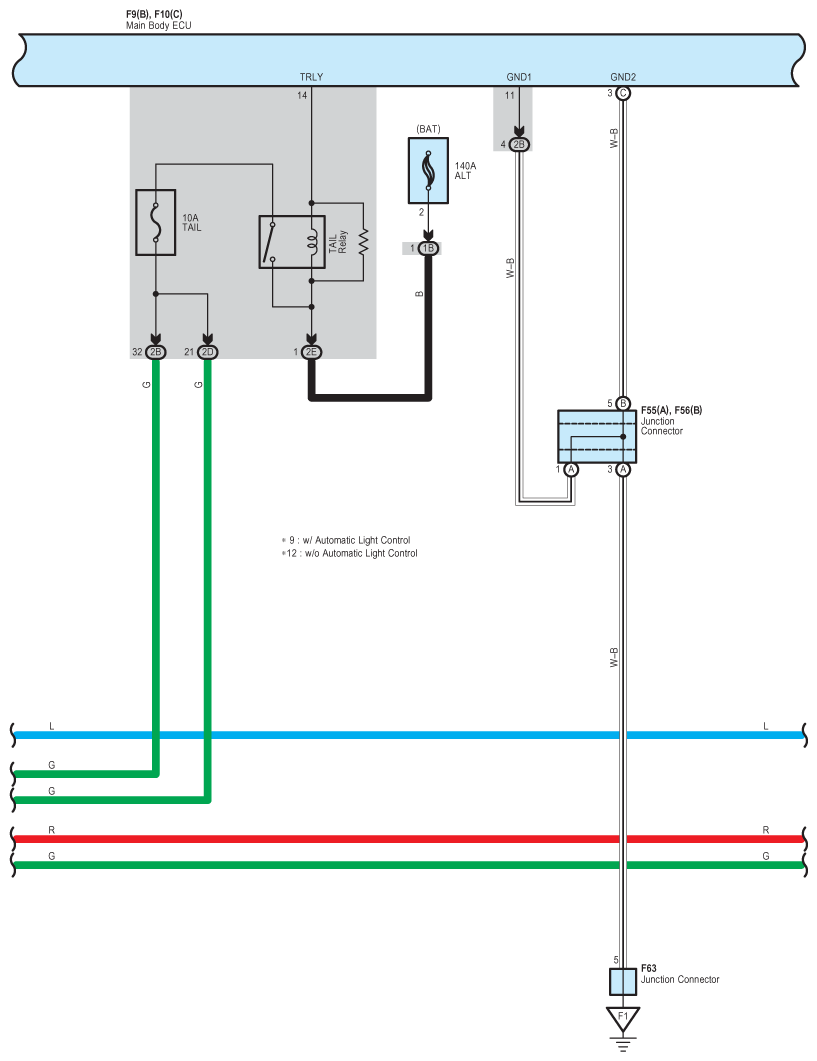

Fig 4: Trailer Towing - Circuit Diagram (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

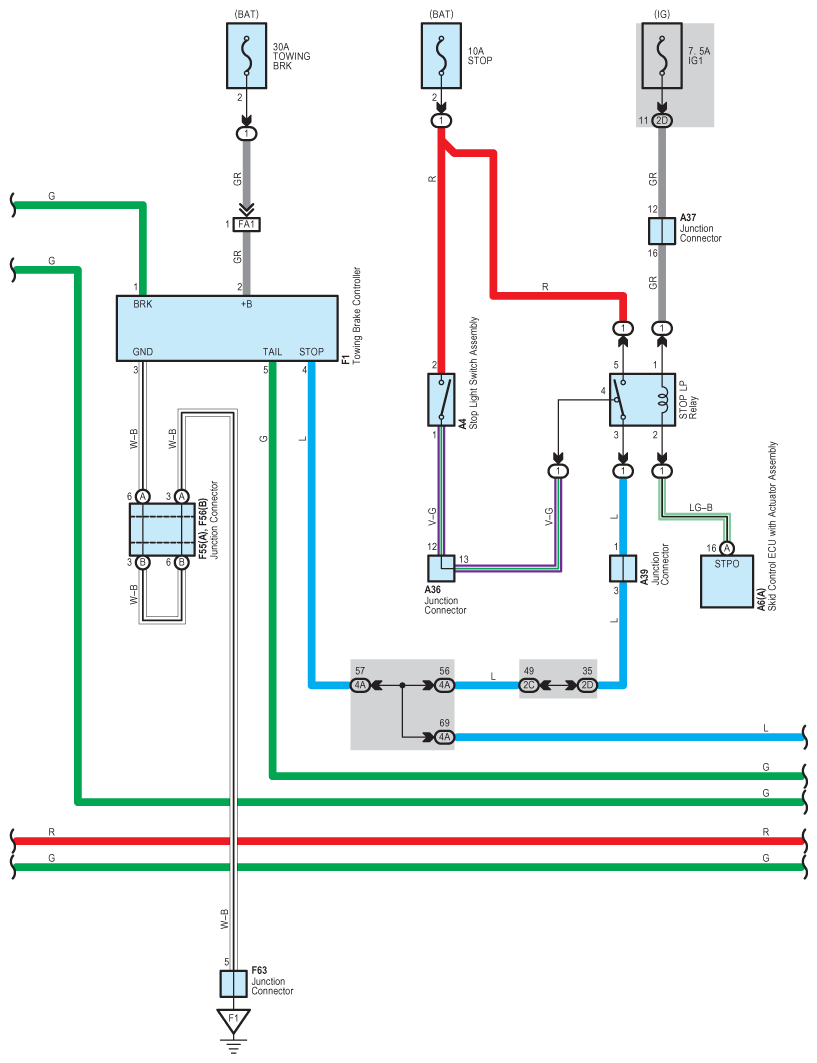

Fig 5: Trailer Towing - Circuit Diagram (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

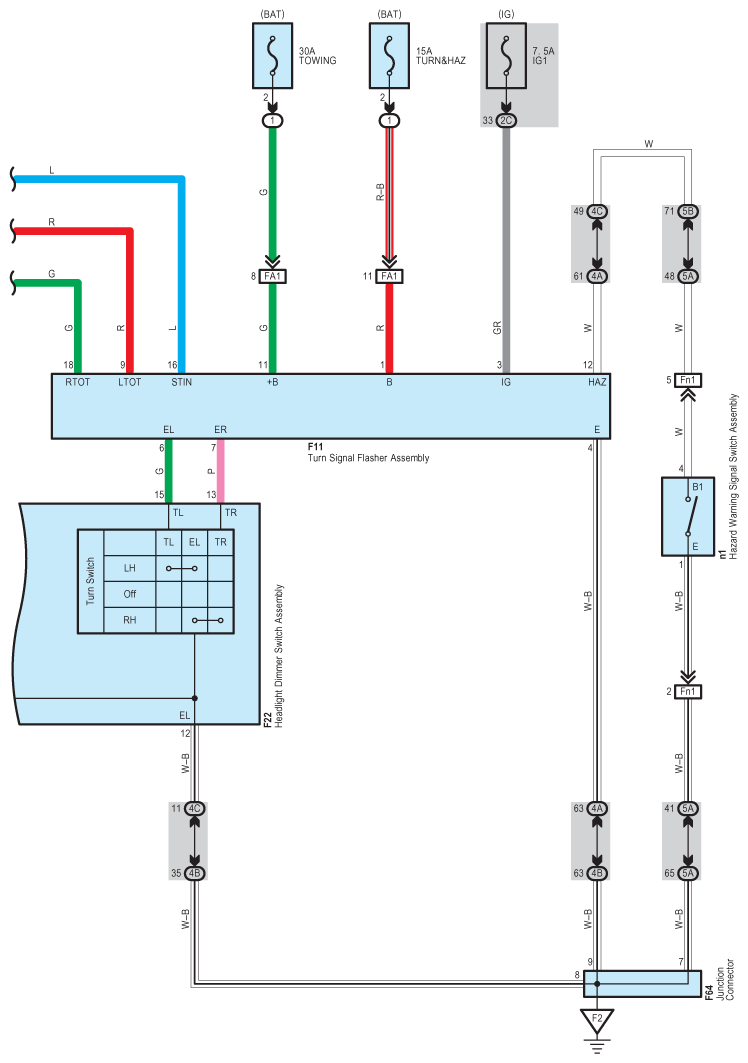

Fig 6: Trailer Towing - Circuit Diagram (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

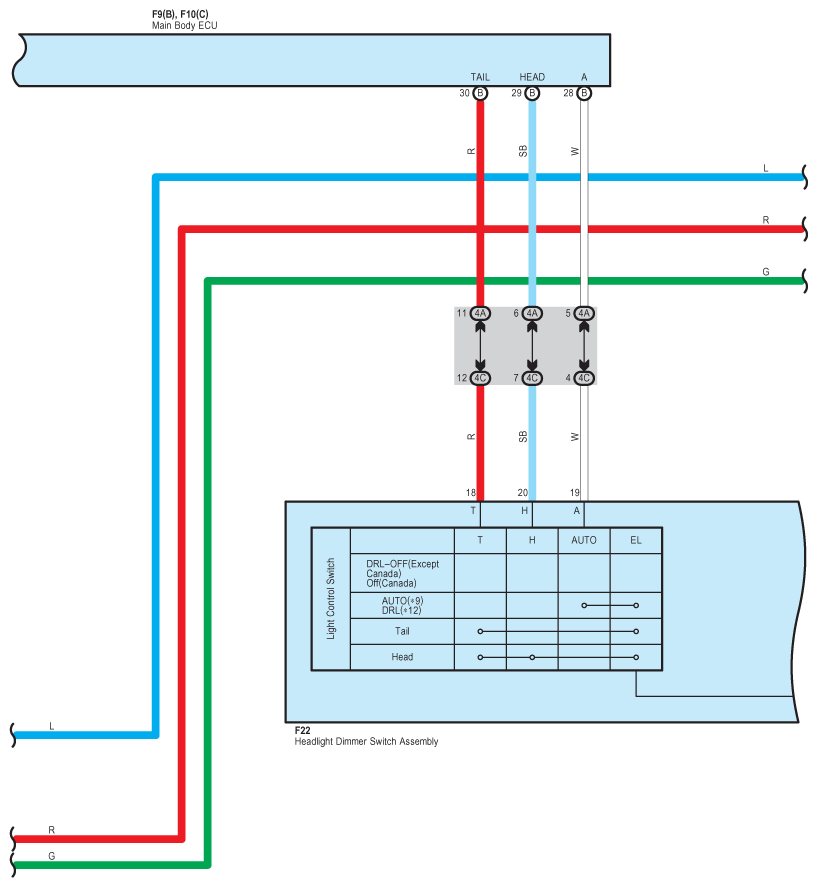

Fig 7: Trailer Towing - Circuit Diagram (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
