Data Link Connector 3: Notes

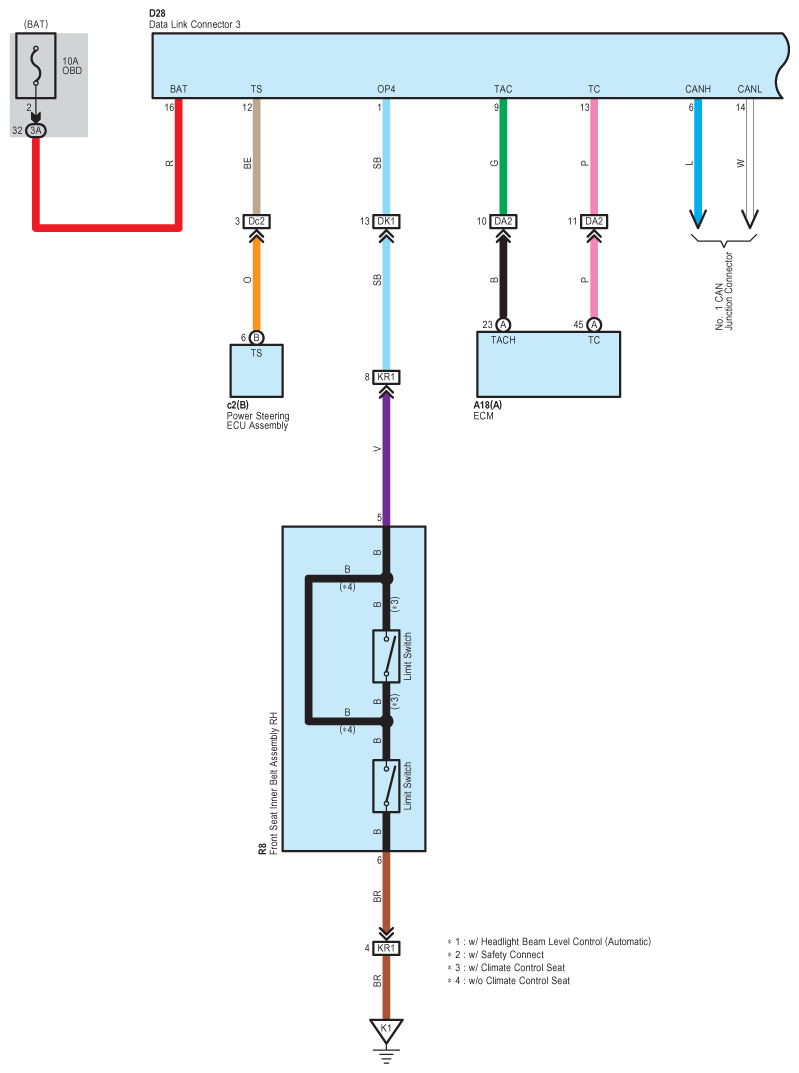

Fig 1: Data Link Connector 3 Wiring Diagram (1 Of 2)
G09095378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

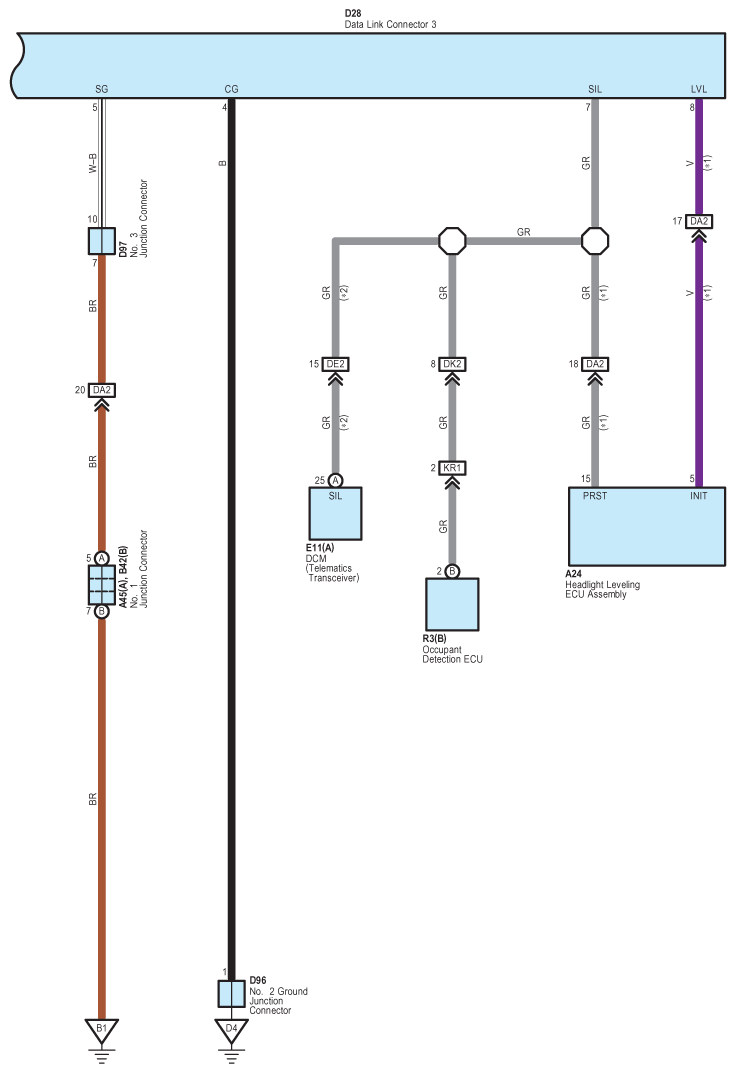

Fig 2: Data Link Connector 3 Wiring Diagram (2 Of 2)
G09095379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
