Power Window: Notes

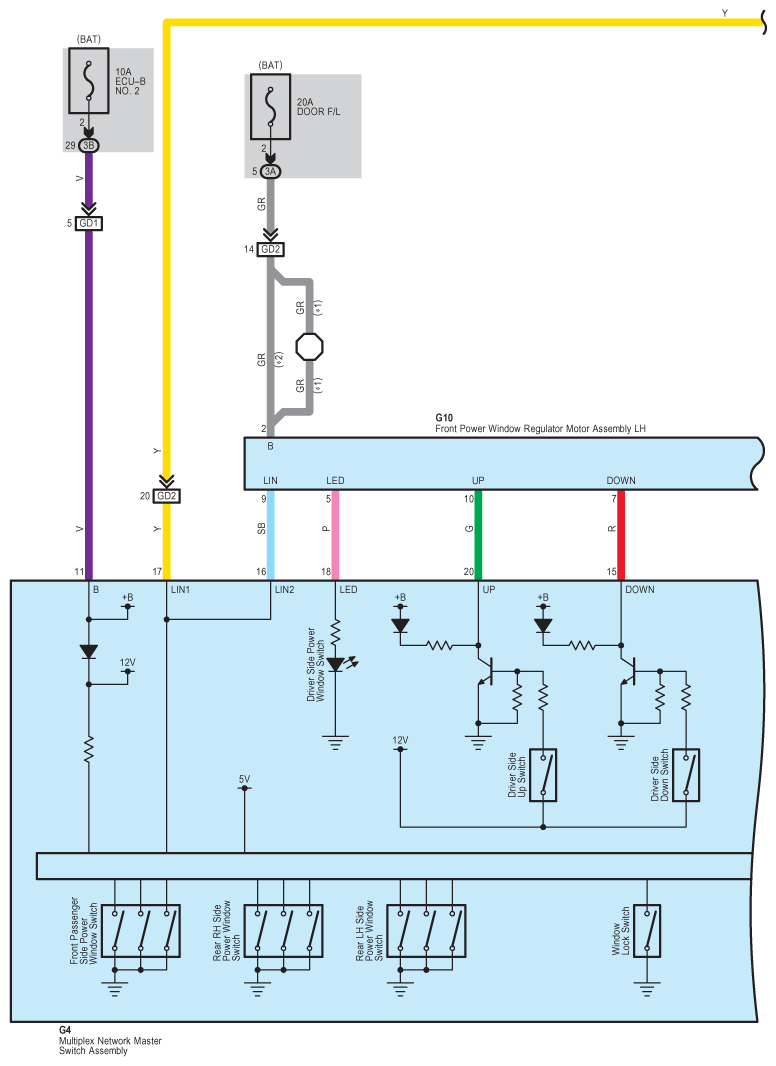

Fig 1: Power Window System Wiring Diagram (1 Of 4)
G09095440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

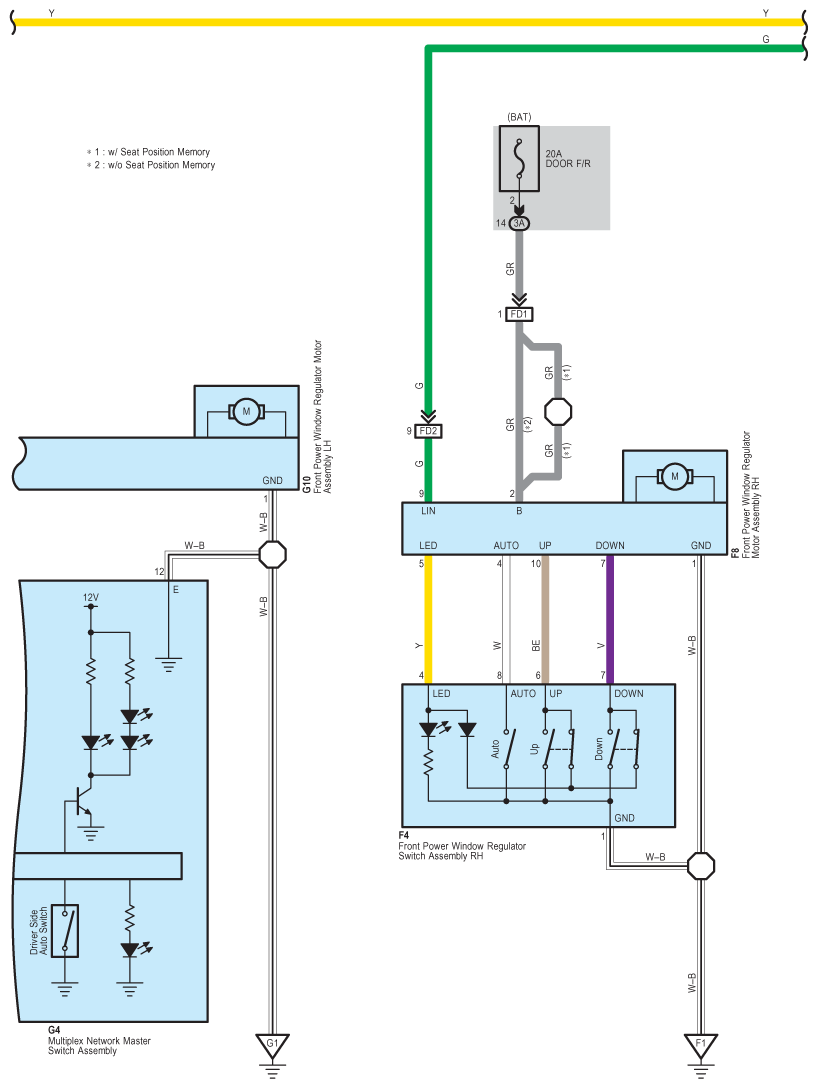

Fig 2: Power Window System Wiring Diagram (2 Of 4)
G09095441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

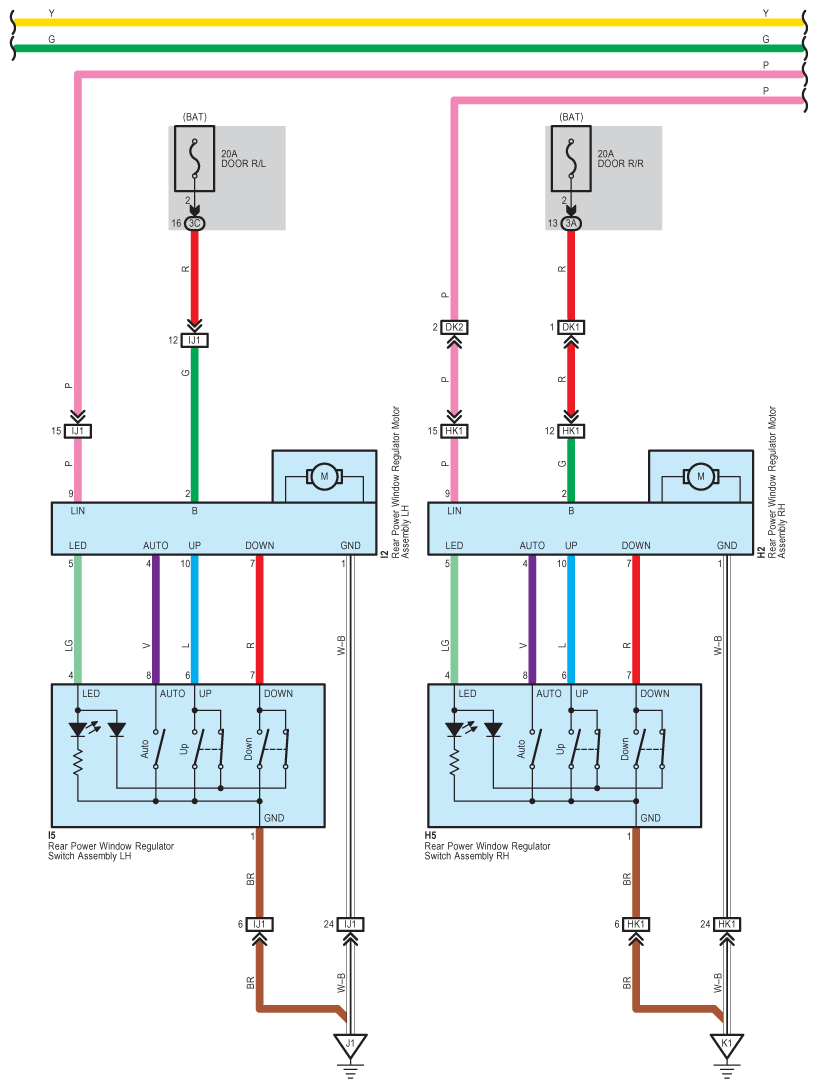

Fig 3: Power Window System Wiring Diagram (3 Of 4)
G09095442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

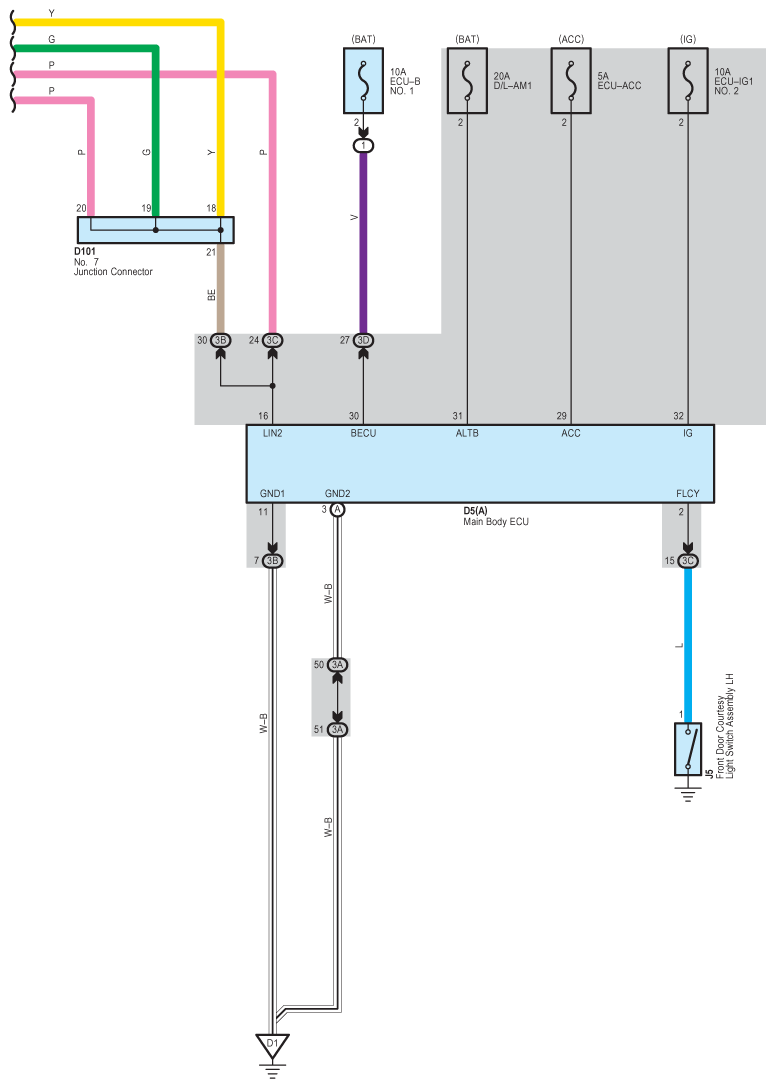

Fig 4: Power Window System Wiring Diagram (4 Of 4)
G09095443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
