Sliding Roof: Notes

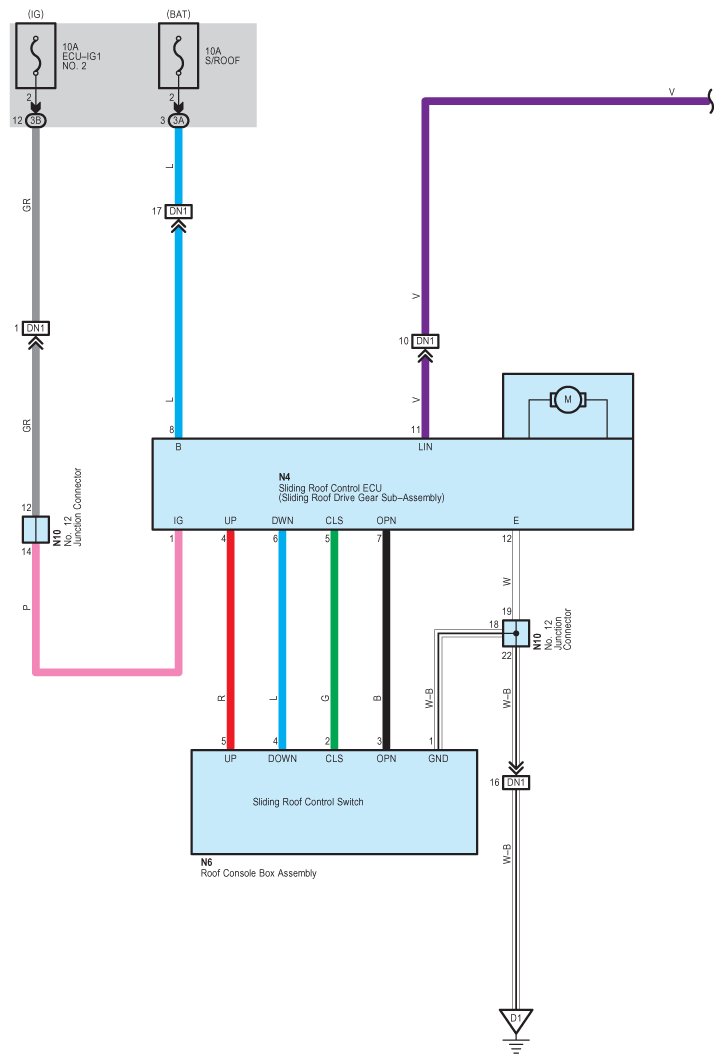

Fig 1: Sliding Roof System Wiring Diagram (1 Of 3)
G09095444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

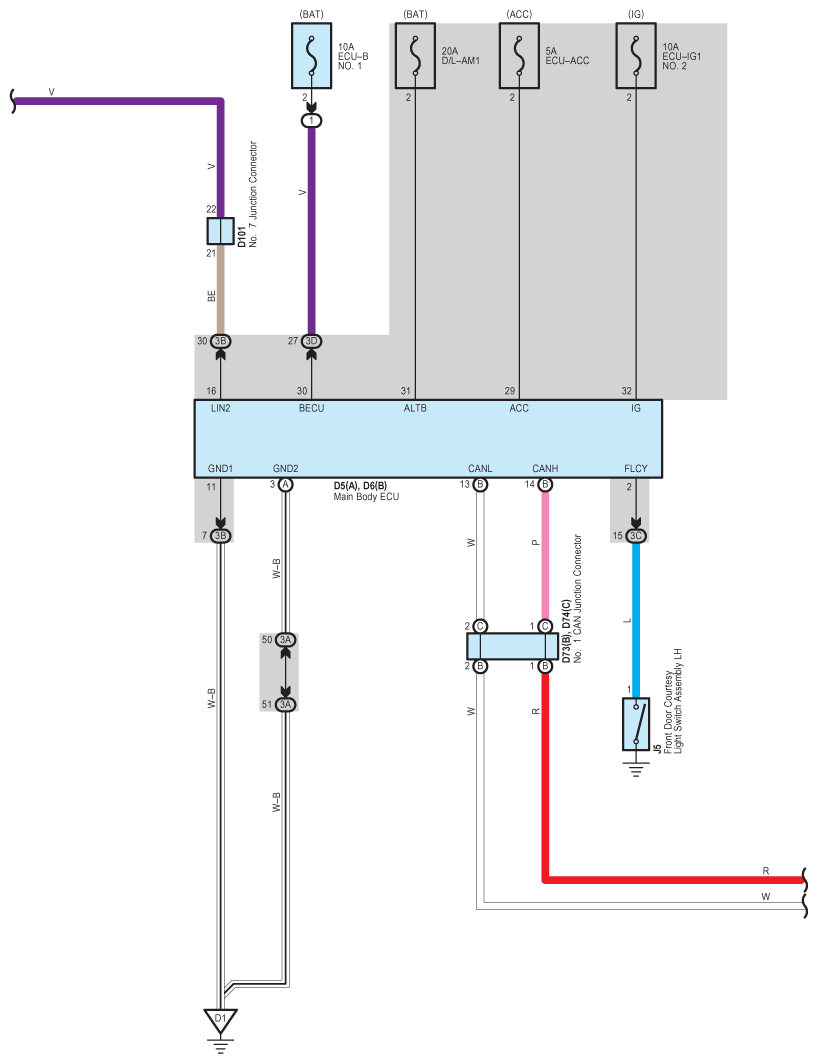

Fig 2: Sliding Roof System Wiring Diagram (2 Of 3)
G09095445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

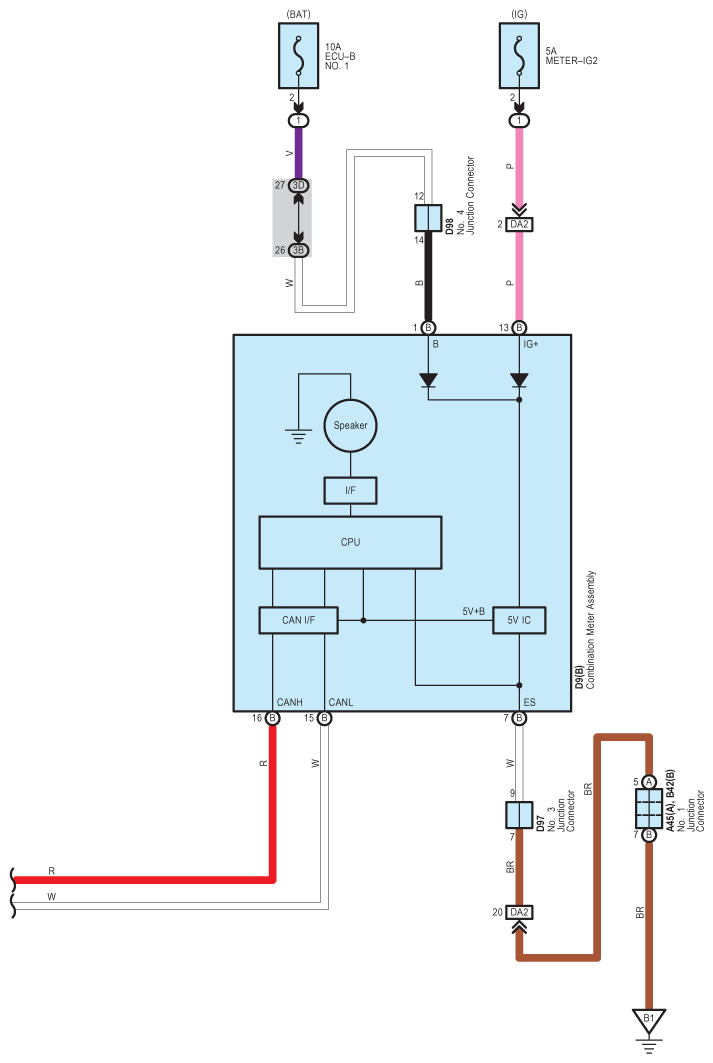

Fig 3: Sliding Roof System Wiring Diagram (3 Of 3)
G09095446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
