OEM System Circuits: 4WD: Notes

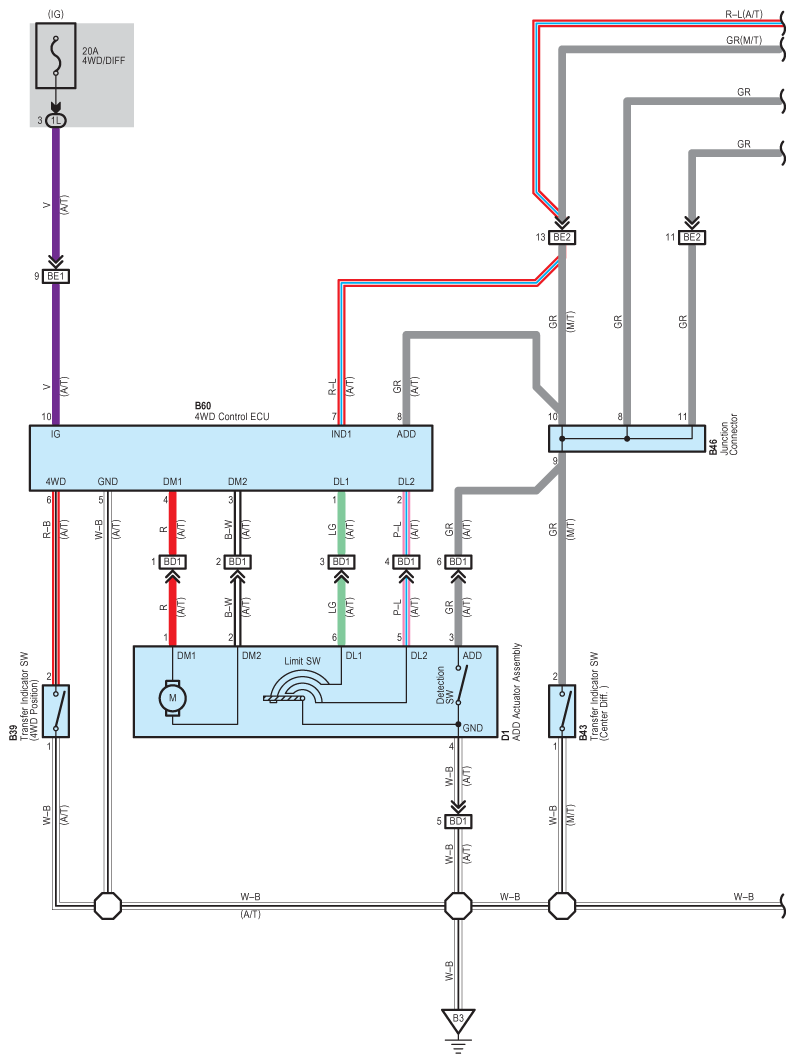

Fig 1: 4WD Wiring Diagram (1 Of 3)
G09097073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

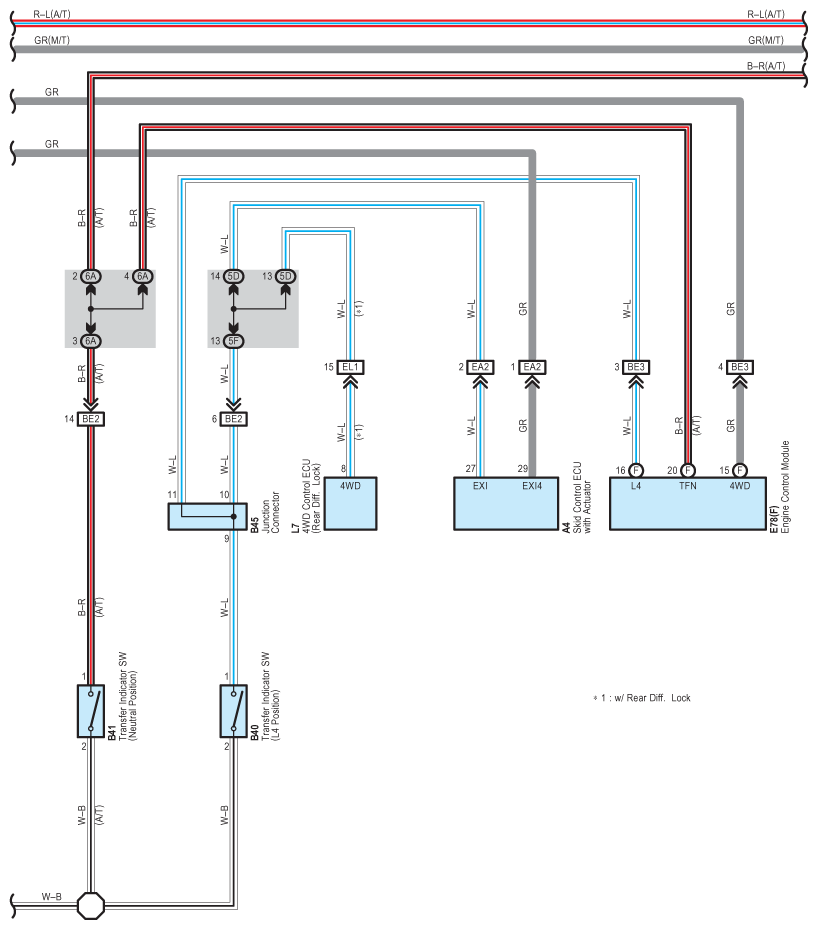

Fig 2: 4WD Wiring Diagram (2 Of 3)
G09097074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

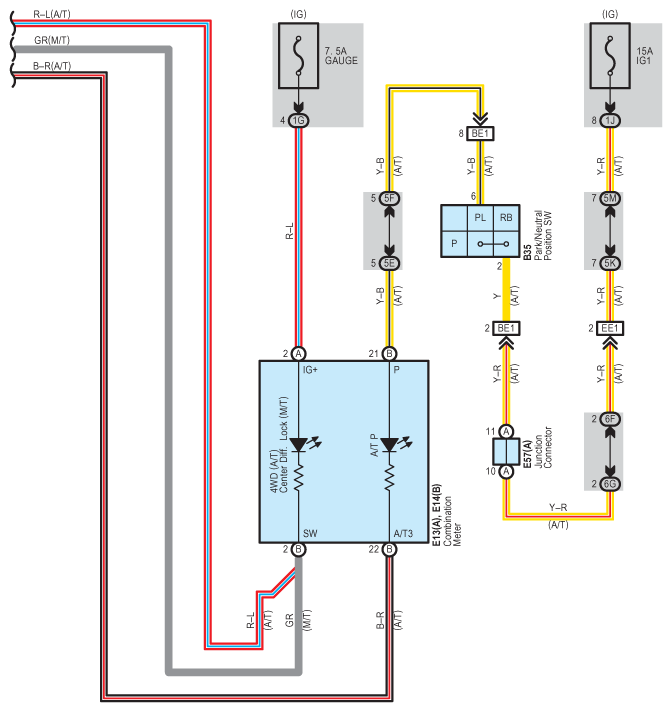

Fig 3: 4WD Wiring Diagram (3 Of 3)
G09097075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
