Multiplex Communication System (CAN): Notes

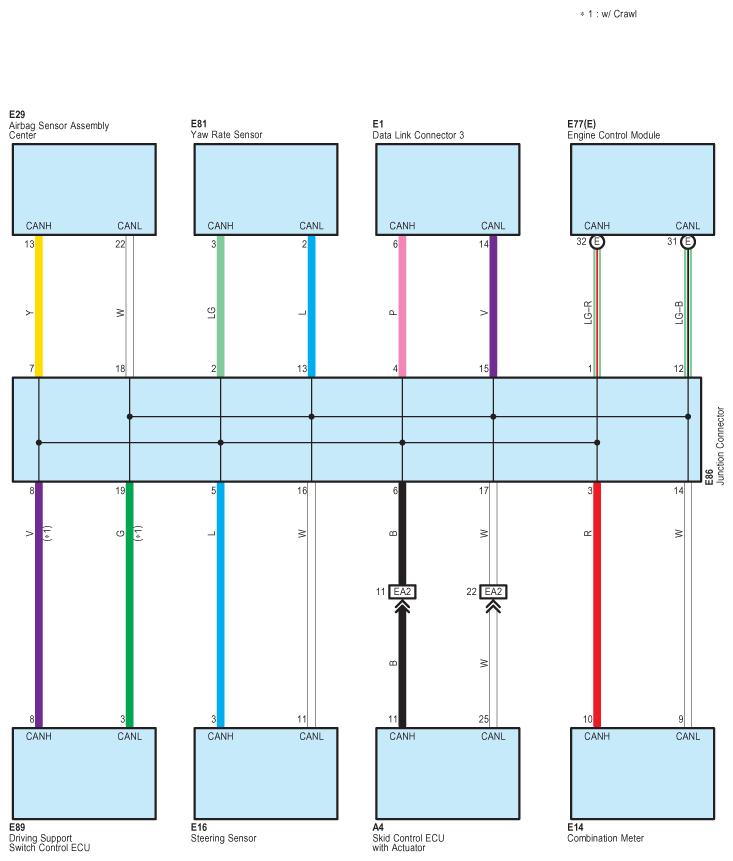

Fig 1: Multiplex Communication (CAN) Wiring Diagram

G09096999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
