Power Window: Notes

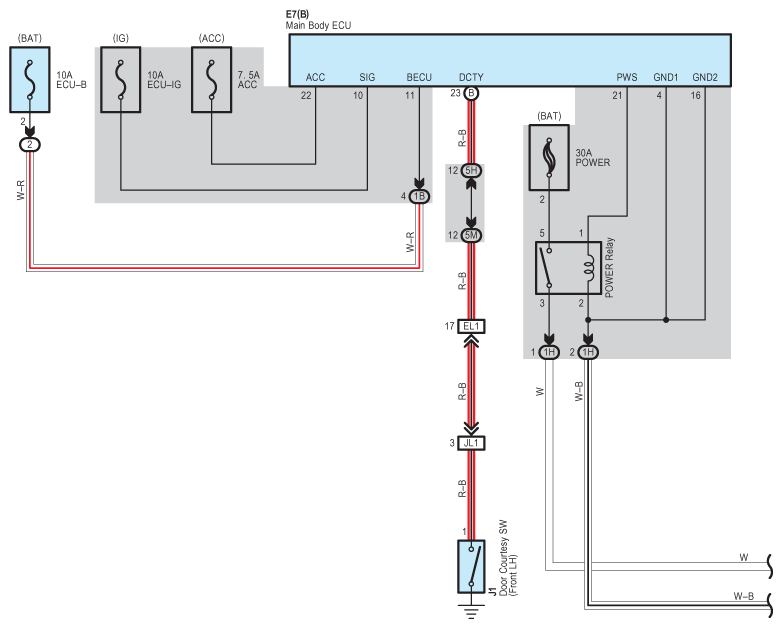

Fig 1: Power Window Wiring Diagram (1 Of 2)
G09097034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

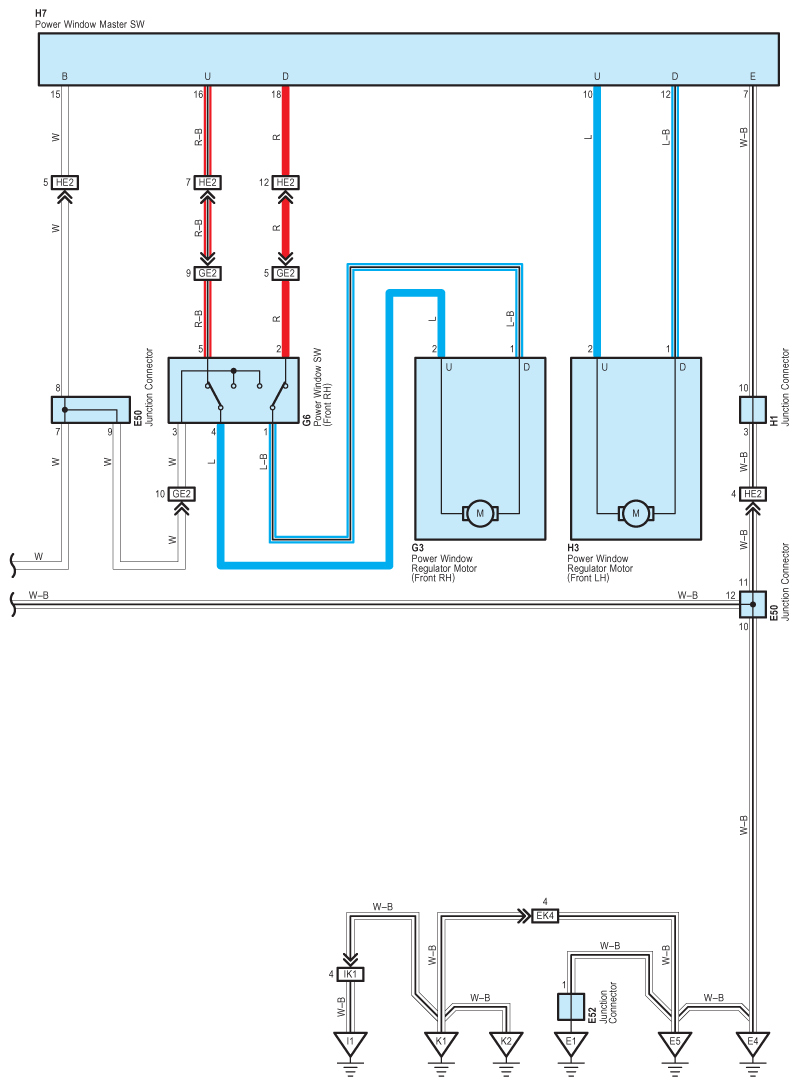

Fig 2: Power Window Wiring Diagram (2 Of 2)
G09097035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
