OEM System Circuits: EPS: Notes

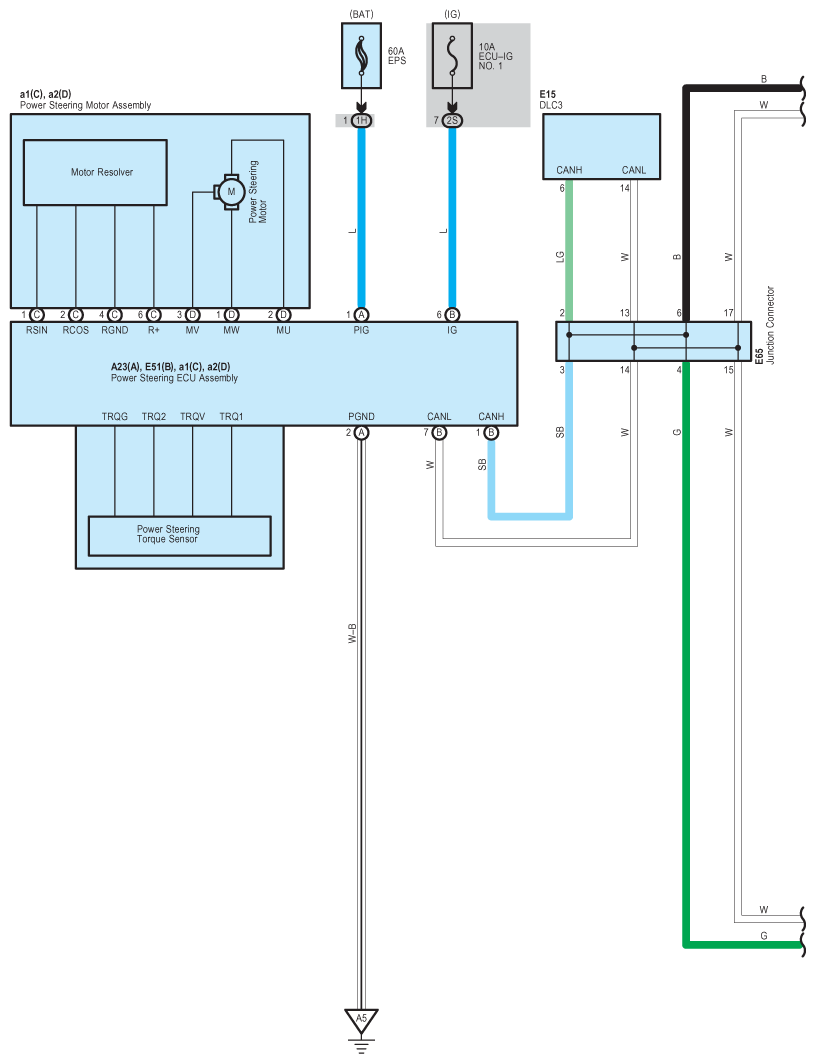

Fig 1: EPS Wiring Diagram (1 Of 3)
G09105939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

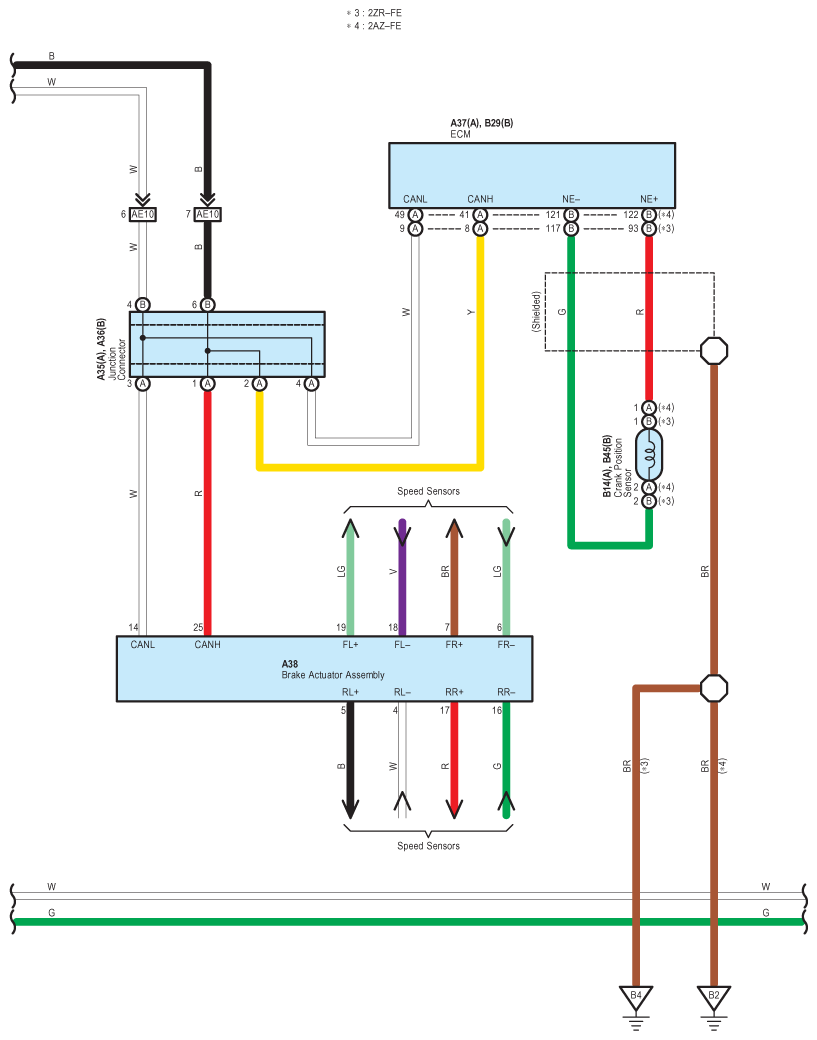

Fig 2: EPS Wiring Diagram (2 Of 3)
G09105940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

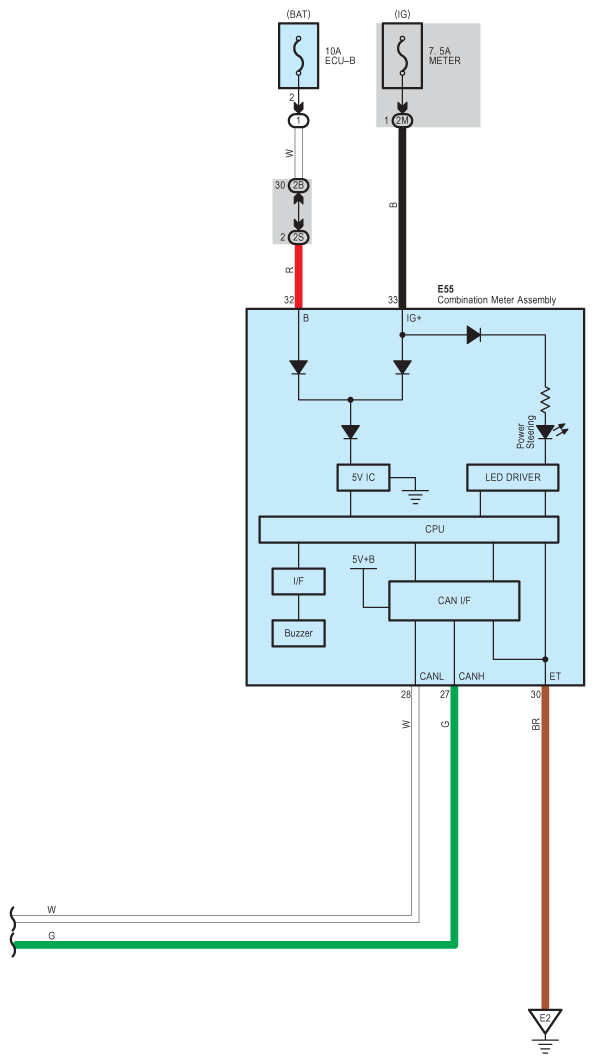

Fig 3: EPS Wiring Diagram (3 Of 3)
G09105941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
