OEM System Circuits: Headlight: Notes

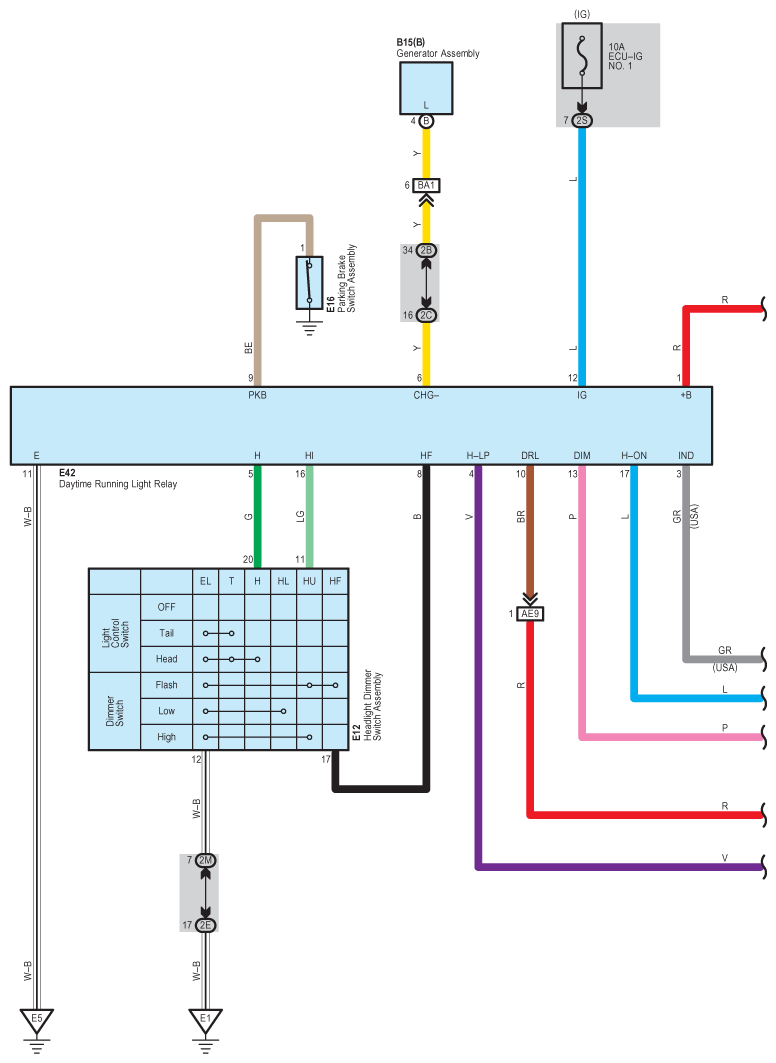

Fig 1: Headlight Wiring Diagram (1 Of 3)
G09105863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

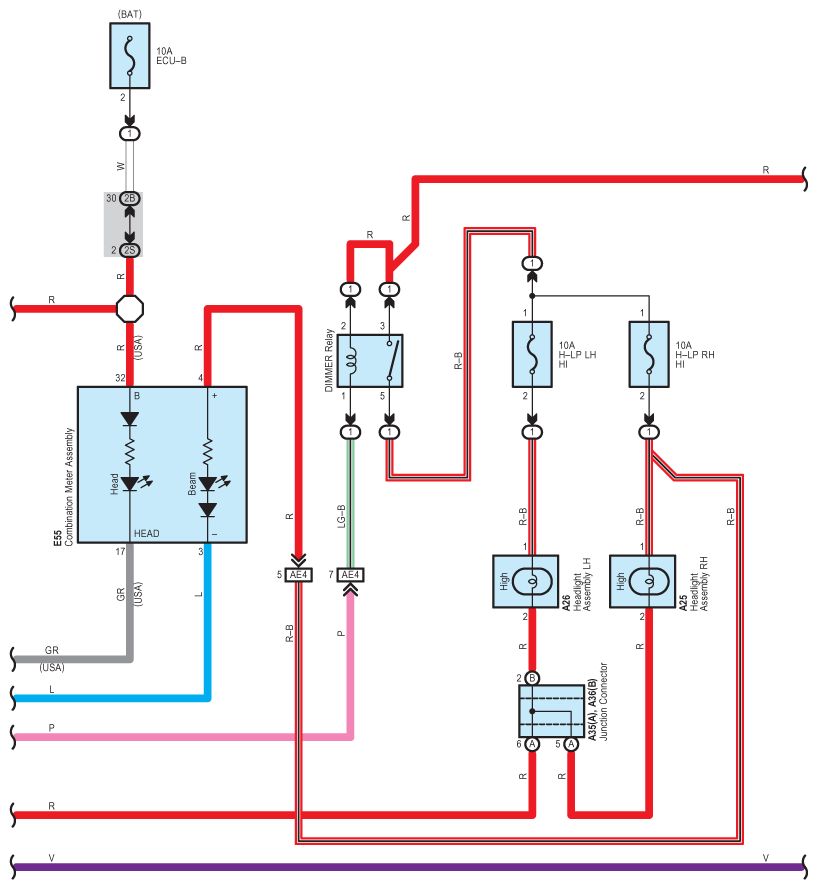

Fig 2: Headlight Wiring Diagram (2 Of 3)
G09105864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

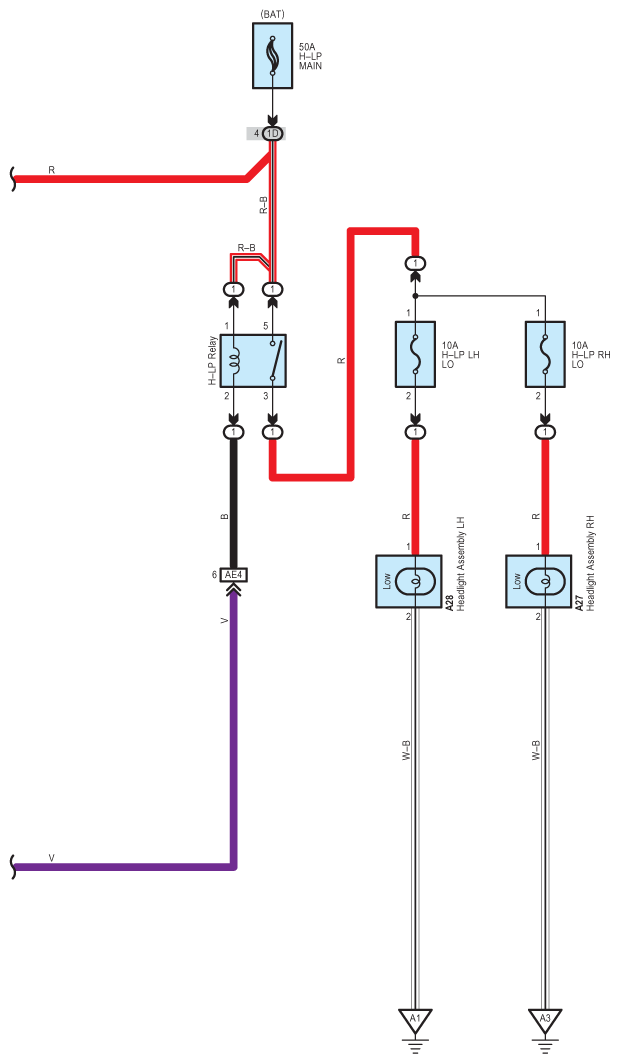

Fig 3: Headlight Wiring Diagram (3 Of 3)
G09105865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
