Interior Light: Notes

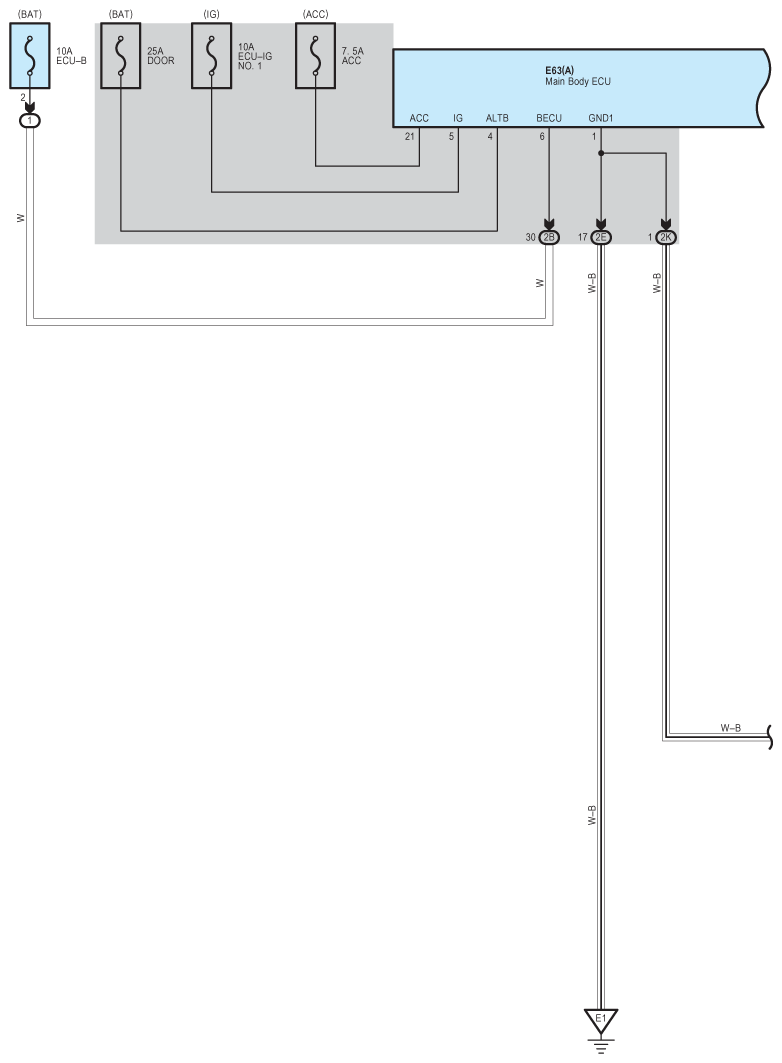

Fig 1: Interior Light Wiring Diagram (1 Of 4)
G09105866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

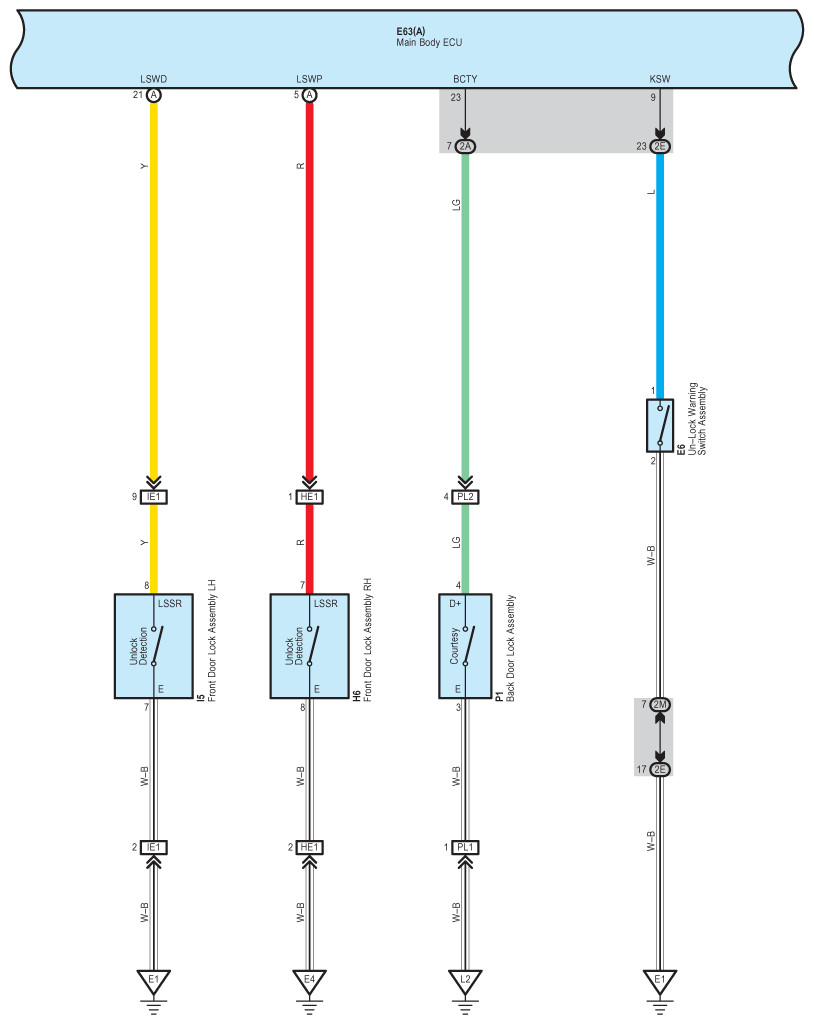

Fig 2: Interior Light Wiring Diagram (2 Of 4)
G09105867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

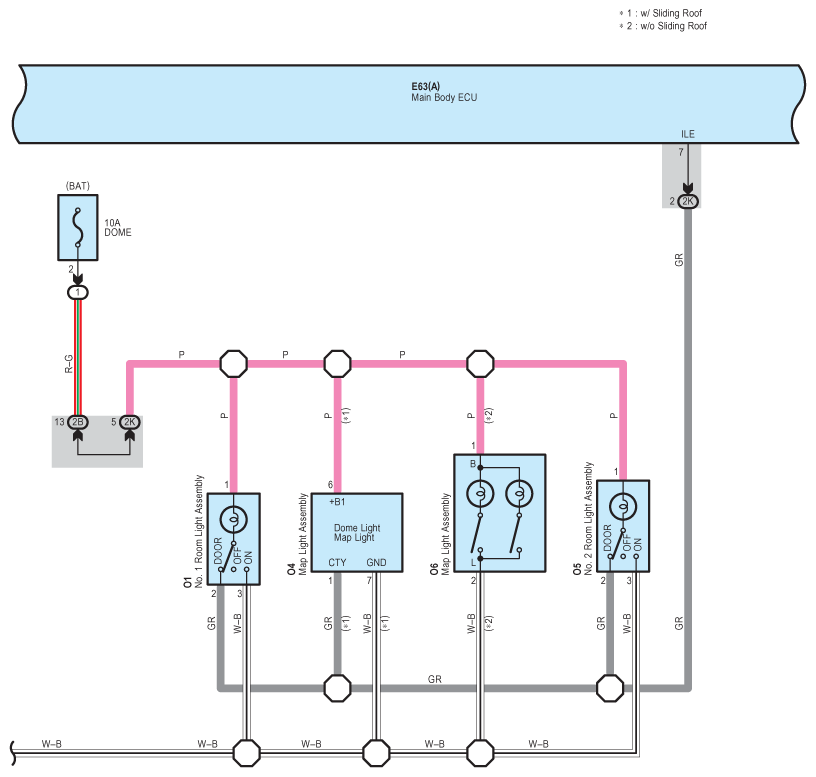

Fig 3: Interior Light Wiring Diagram (3 Of 4)
G09105868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

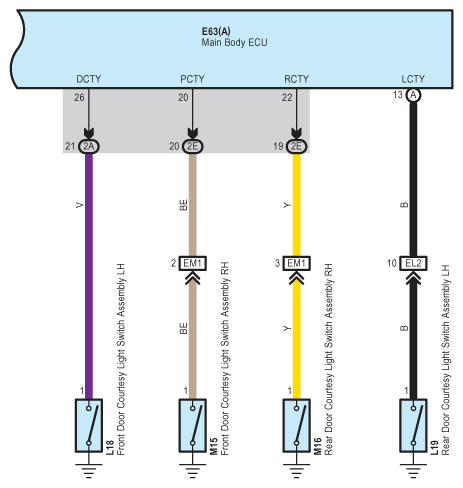

Fig 4: Interior Light Wiring Diagram (4 Of 4)
G09105869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
