Power Source: Notes

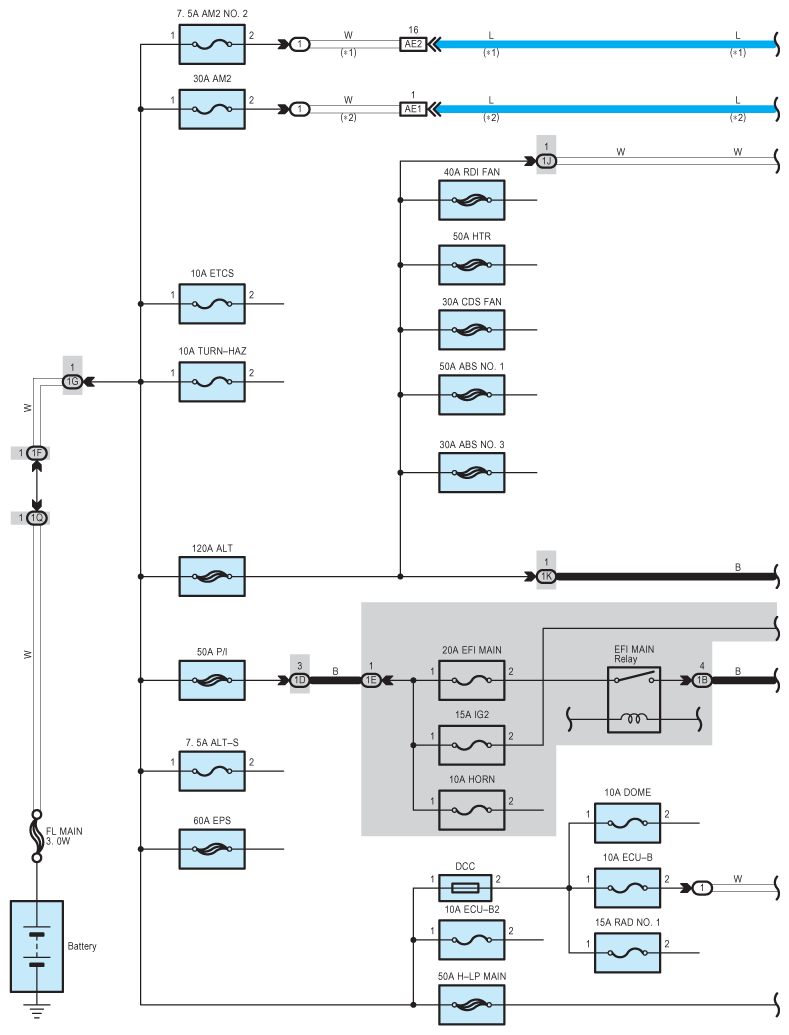

Fig 1: Power Source Wiring Diagram (1 Of 4)
G09105830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

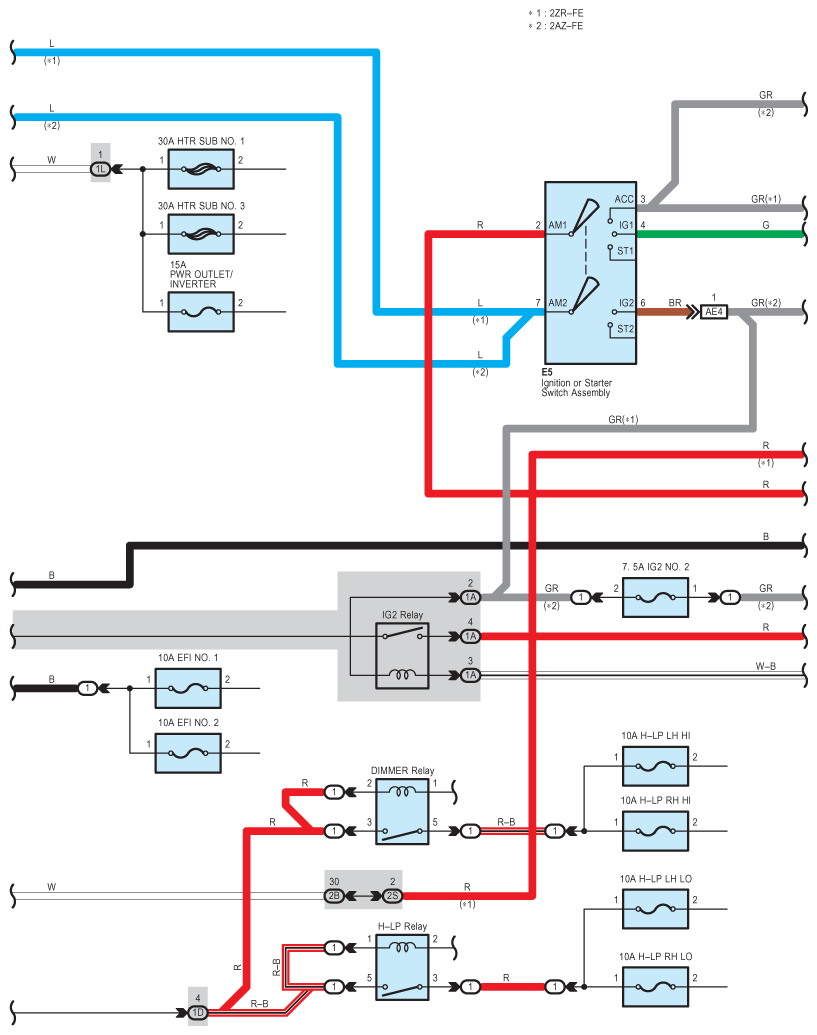

Fig 2: Power Source Wiring Diagram (2 Of 4)
G09105831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

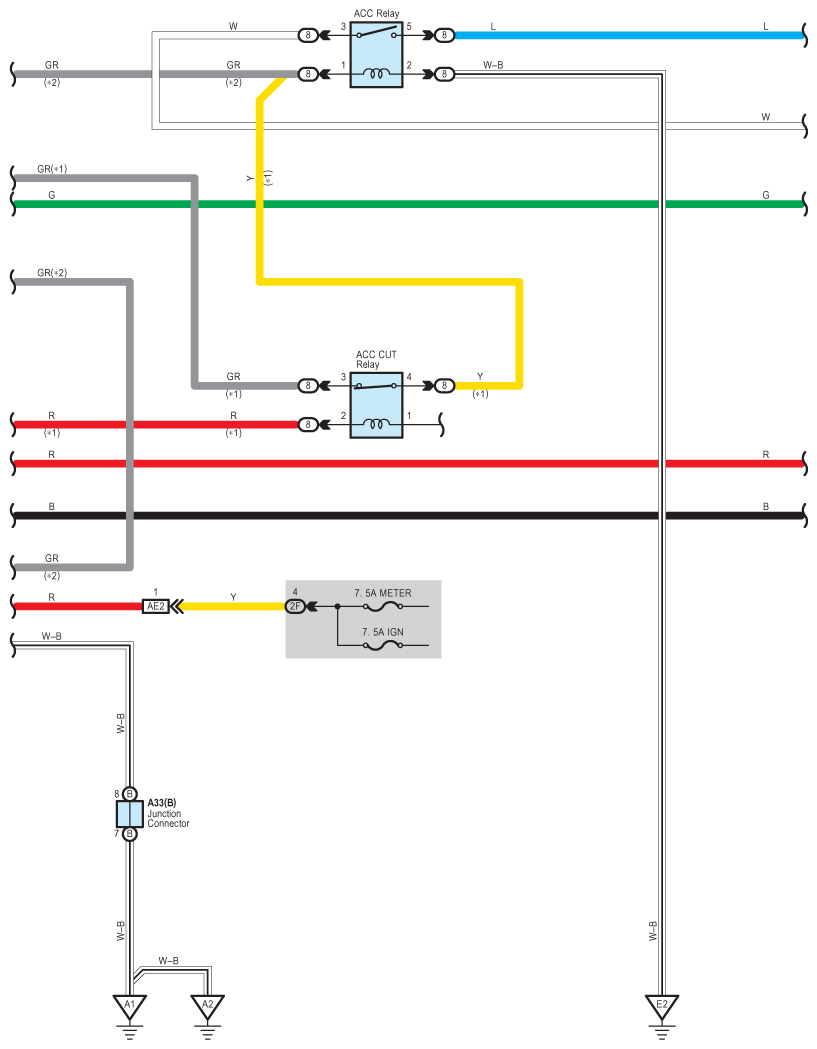

Fig 3: Power Source Wiring Diagram (3 Of 4)
G09105832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

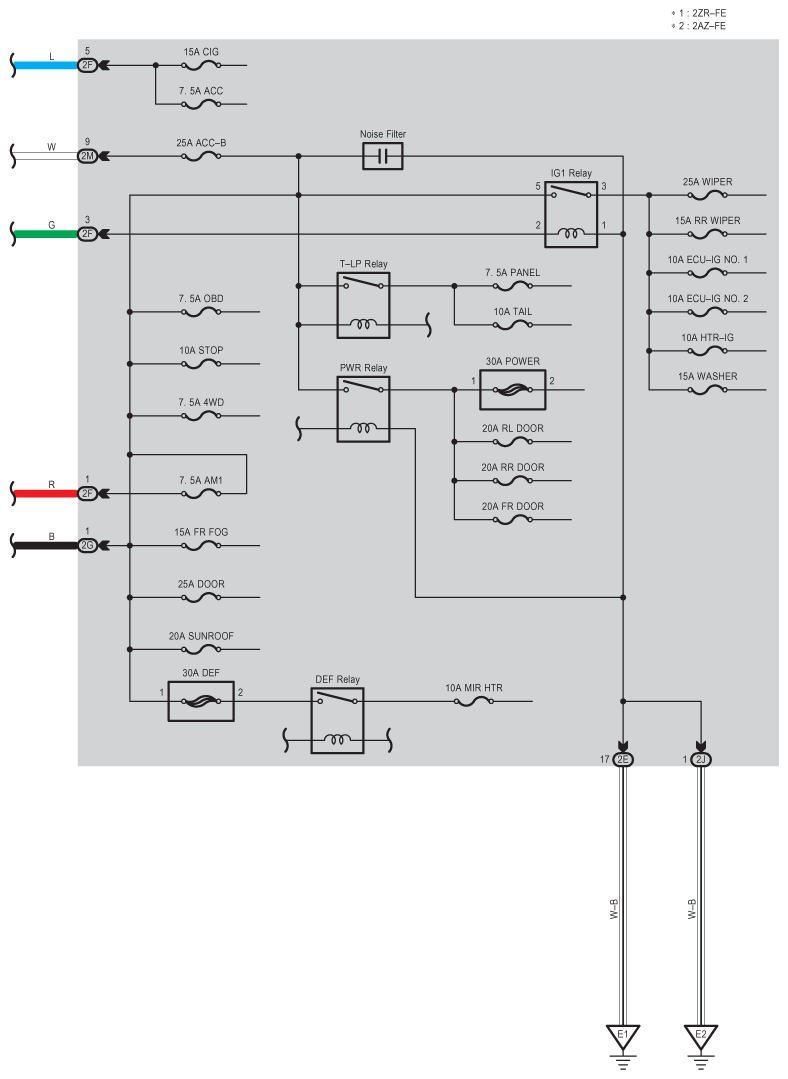

Fig 4: Power Source Wiring Diagram (4 Of 4)
G09105833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
