Sliding Roof: Notes

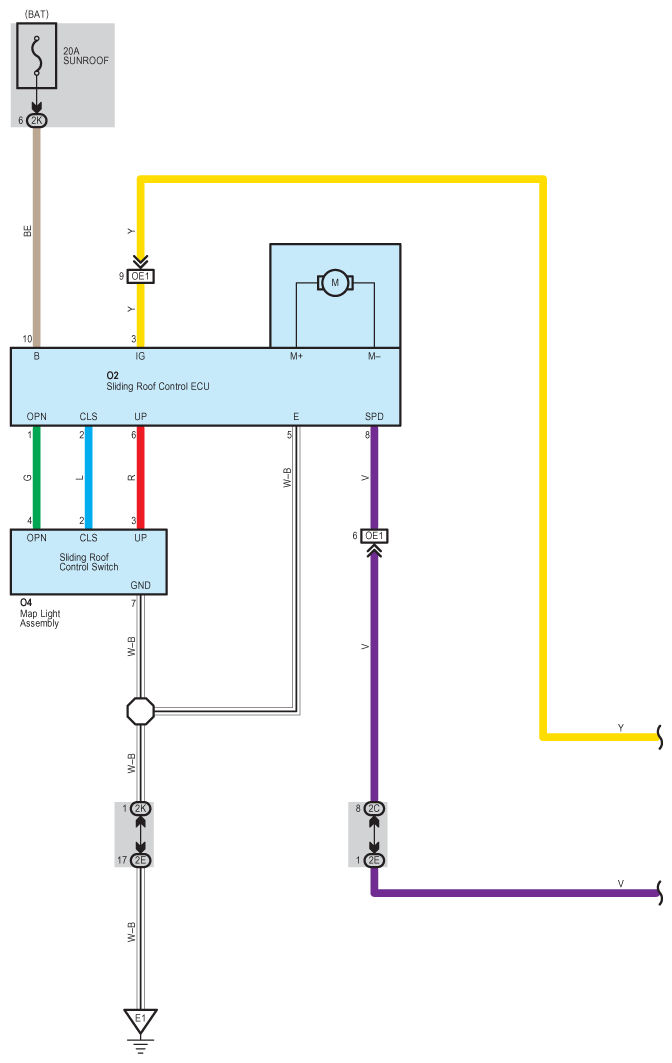

Fig 1: Sliding Roof Wiring Diagram (1 Of 4)
G09105944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

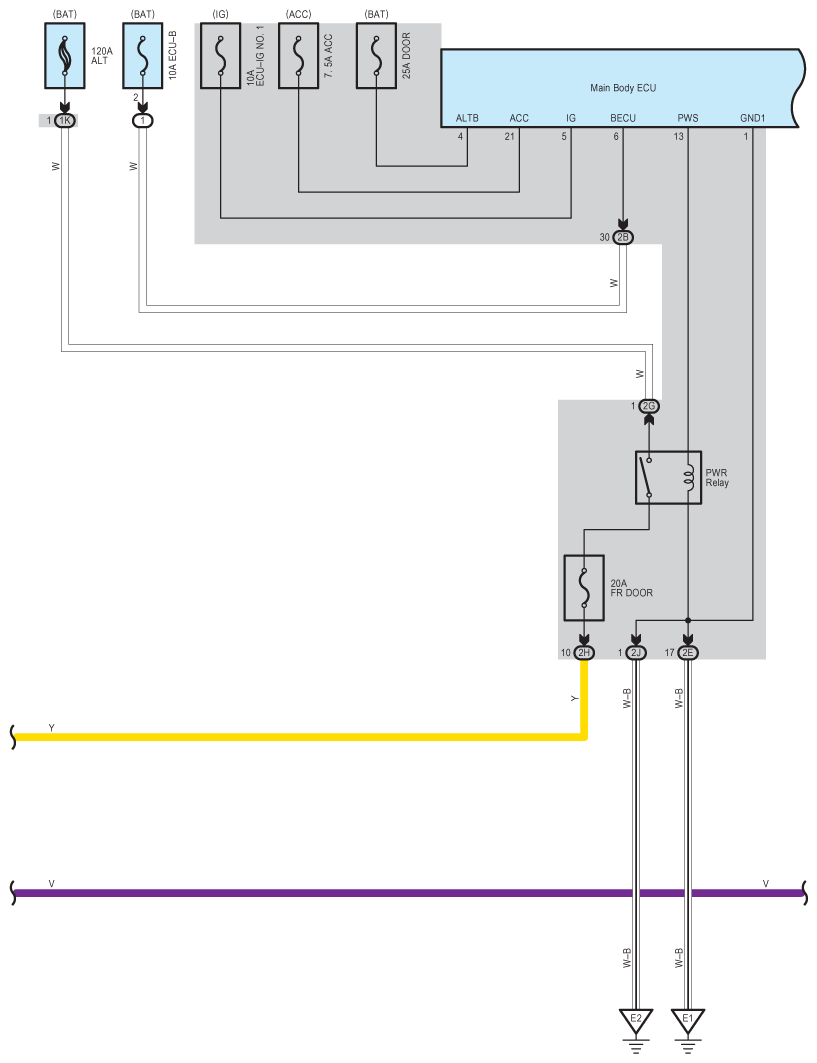

Fig 2: Sliding Roof Wiring Diagram (2 Of 4)
G09105945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

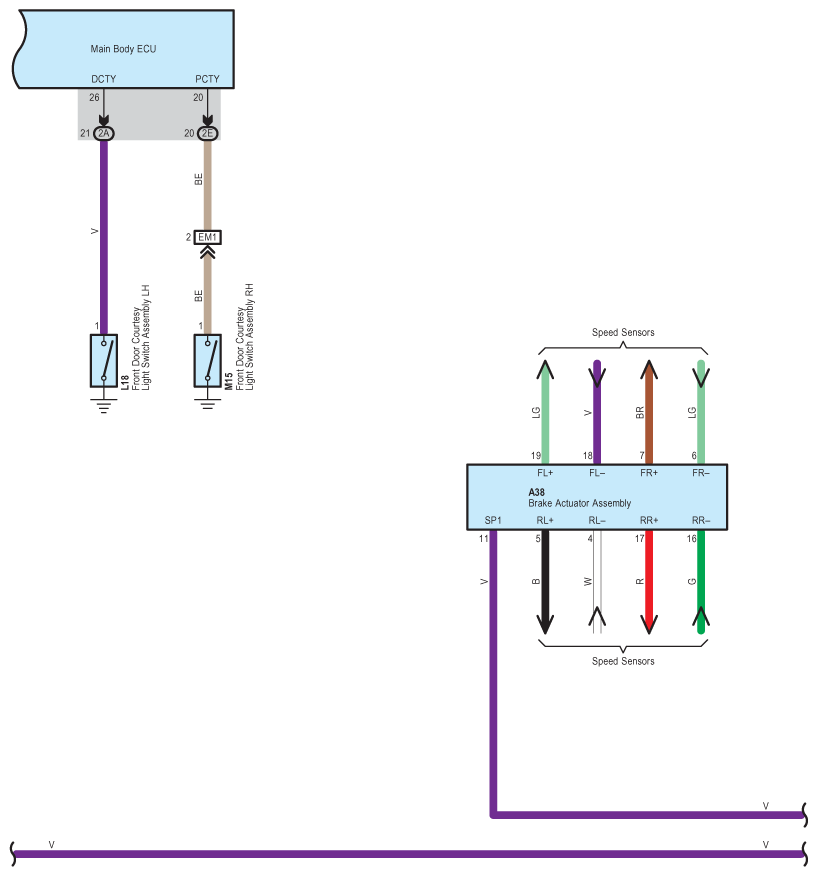

Fig 3: Sliding Roof Wiring Diagram (3 Of 4)
G09105946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

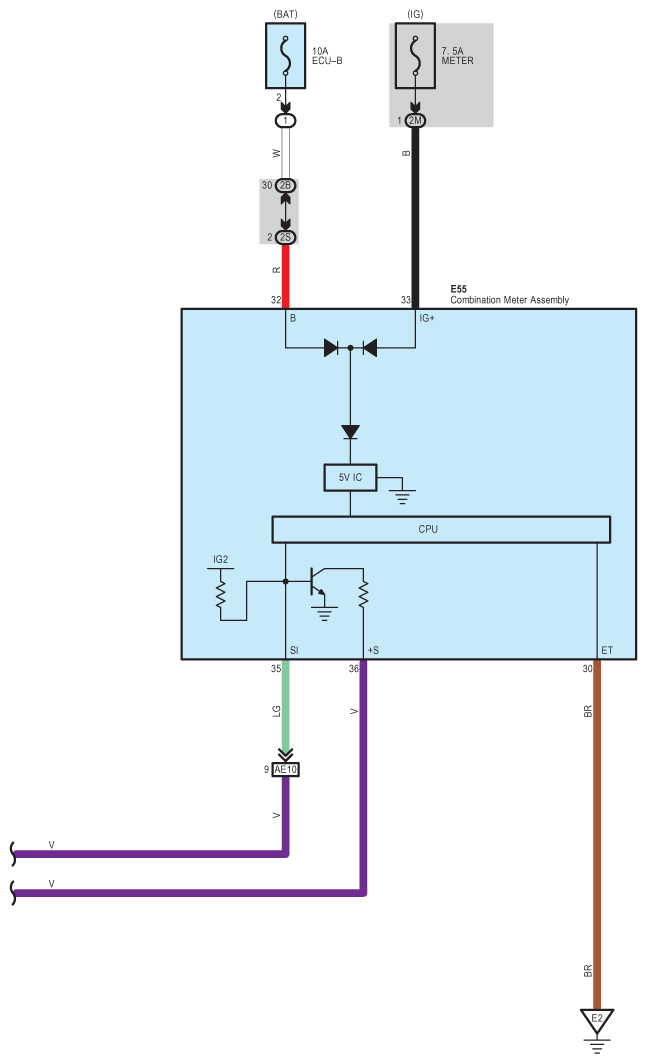

Fig 4: Sliding Roof Wiring Diagram (4 Of 4)
G09105947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
