OEM System Circuits: Starting: Notes

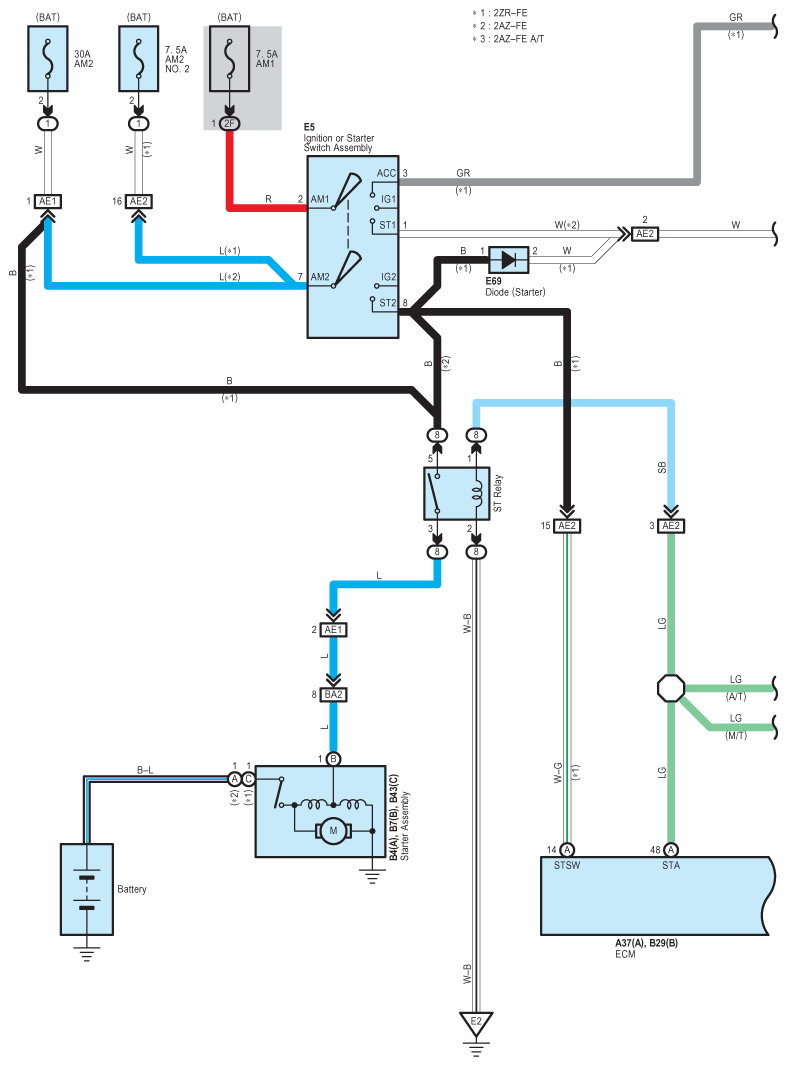

Fig 1: Starting Wiring Diagram (1 Of 2)
G09105834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

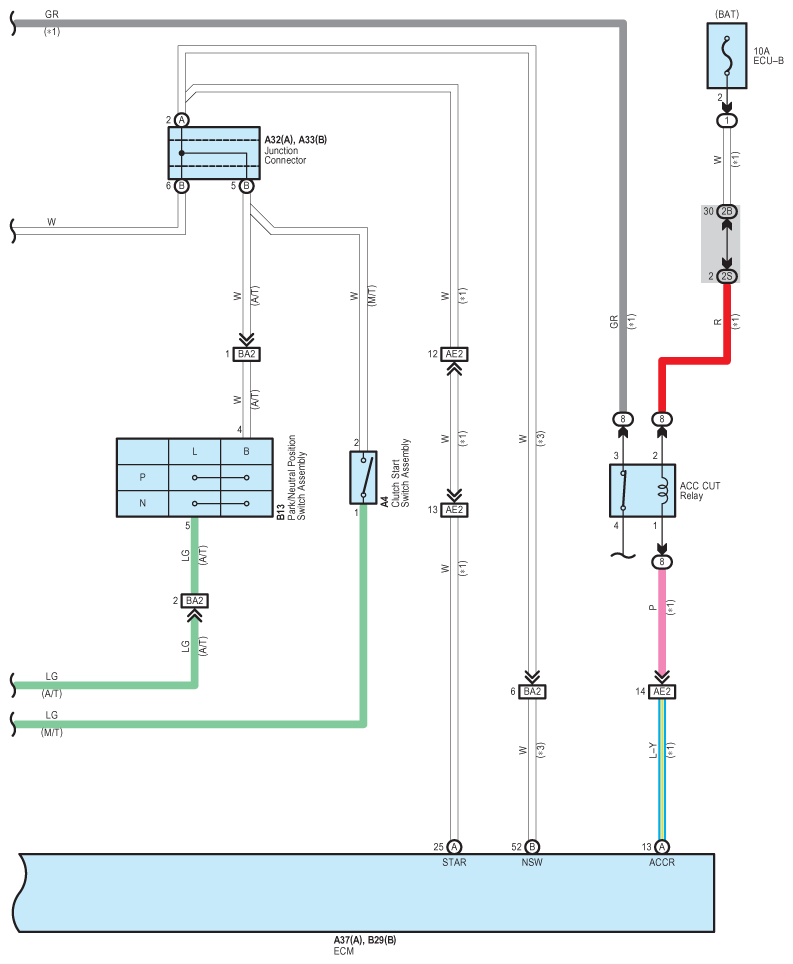

Fig 2: Starting Wiring Diagram (2 Of 2)
G09105835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
