Stop Light: Notes

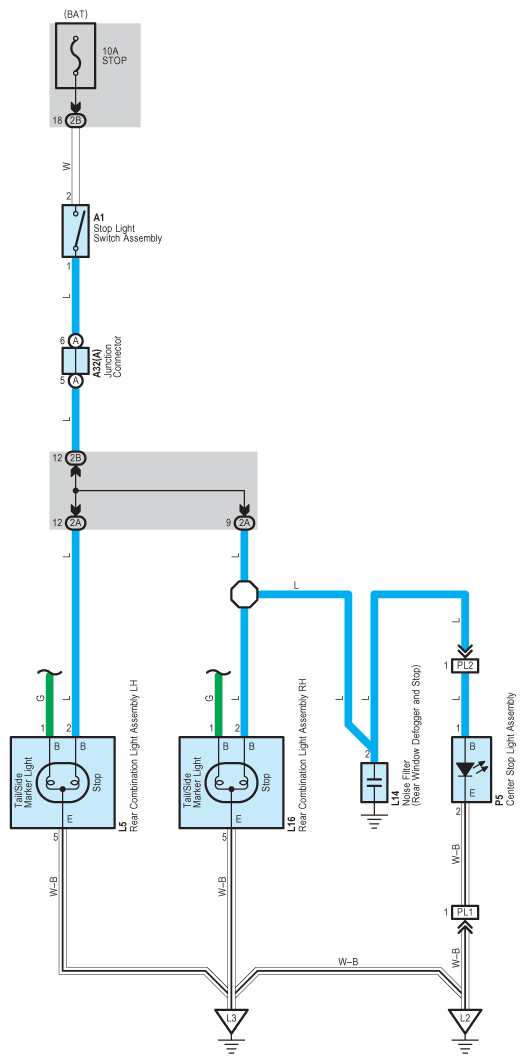

Fig 1: Stop Light Wiring Diagram
G09105878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
