Accelerator Pedal: Components: Illustration

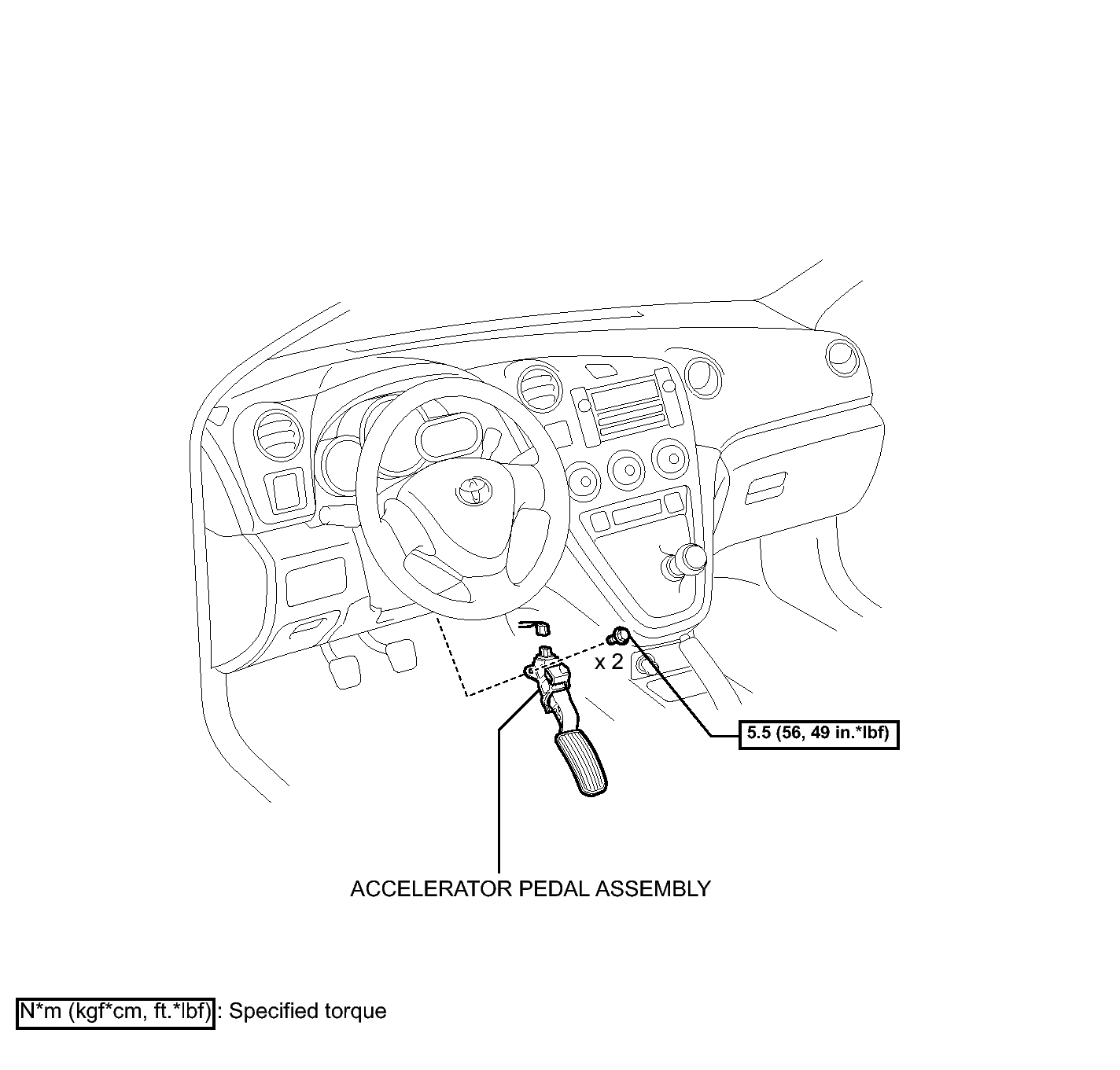

Fig 1: Identifying Accelerator Pedal Replacement Components And Torque Specification

GTY238397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
