Home >> Toyota >> 2013 >> Prius C >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control / Dynamic Control System (Service Information) >> Front Speed Sensor >> Components >> Illustration

Front Speed Sensor: Components: Illustration

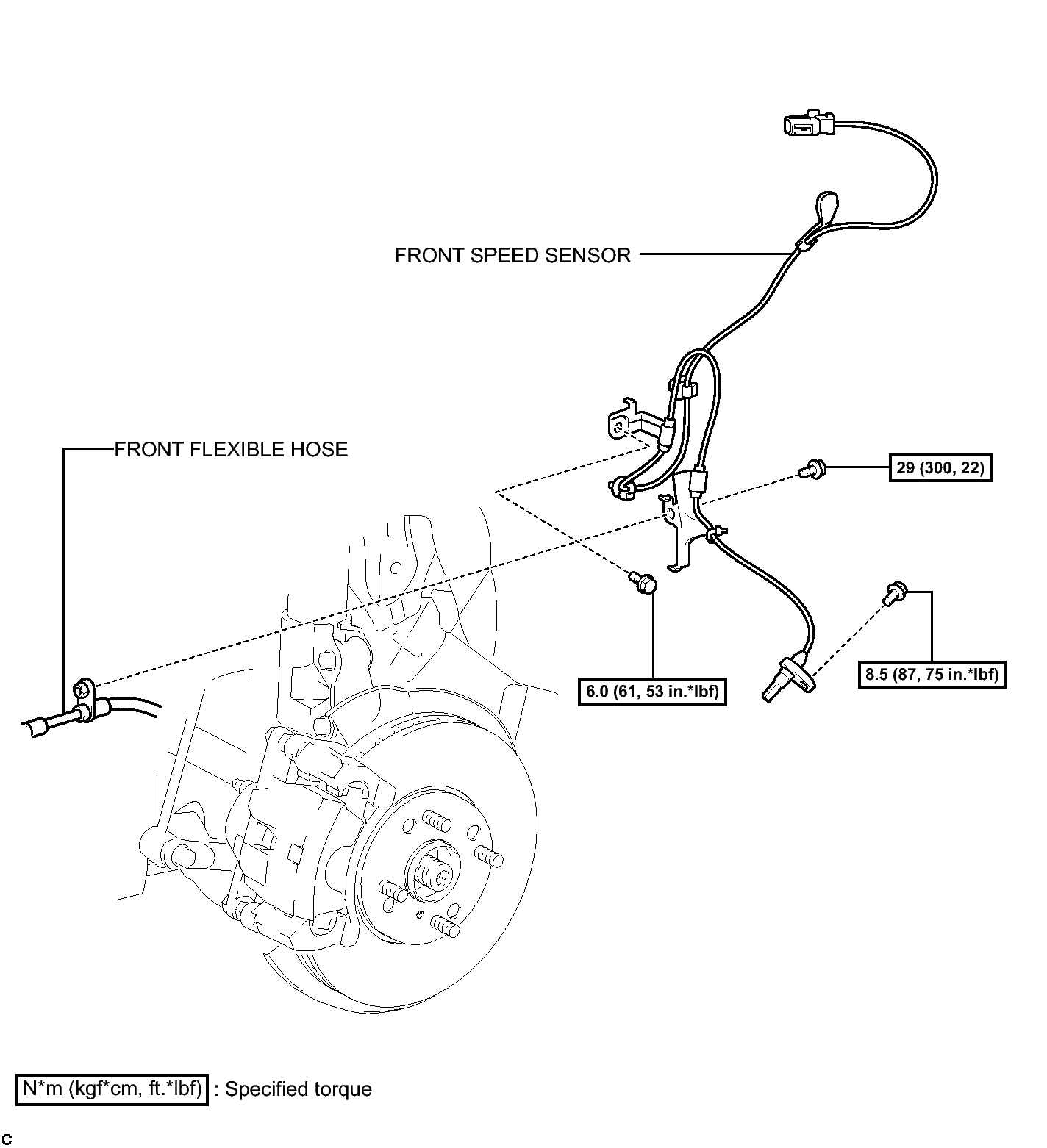

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications

GTY325752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
