OEM System Circuits: Horn: Notes

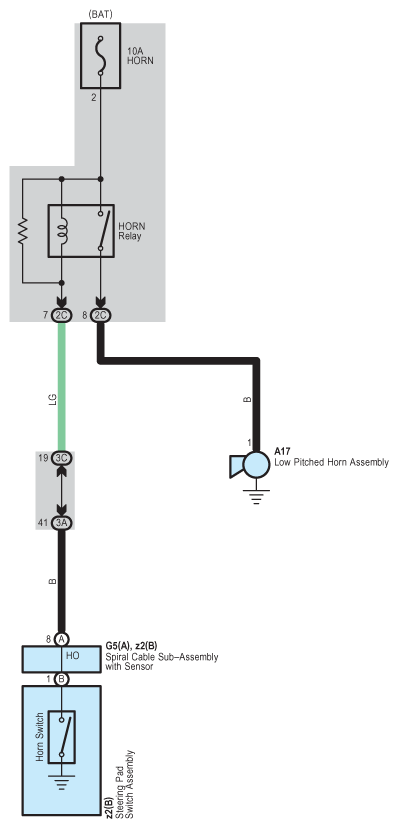

Fig 1: Horn Electrical Wiring Circuit Diagram
G09101161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
