OEM System Circuits: Ignition: Notes

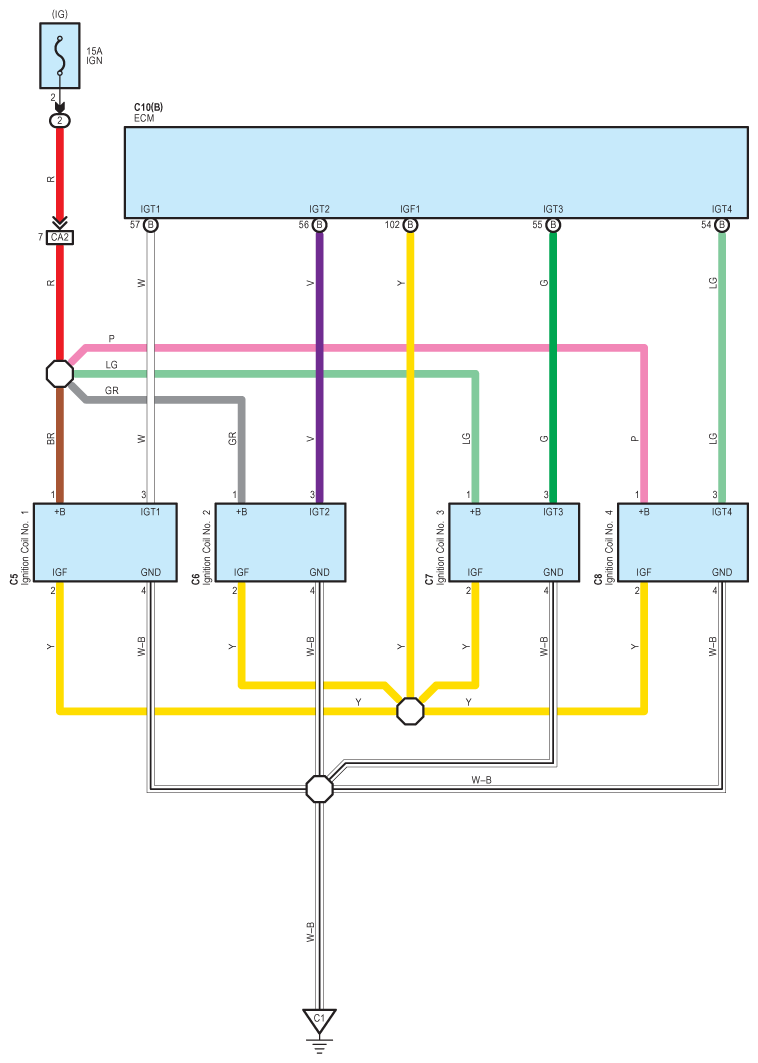

Fig 1: Ignition Wiring Diagram
G09101015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
