Sliding Roof: Notes

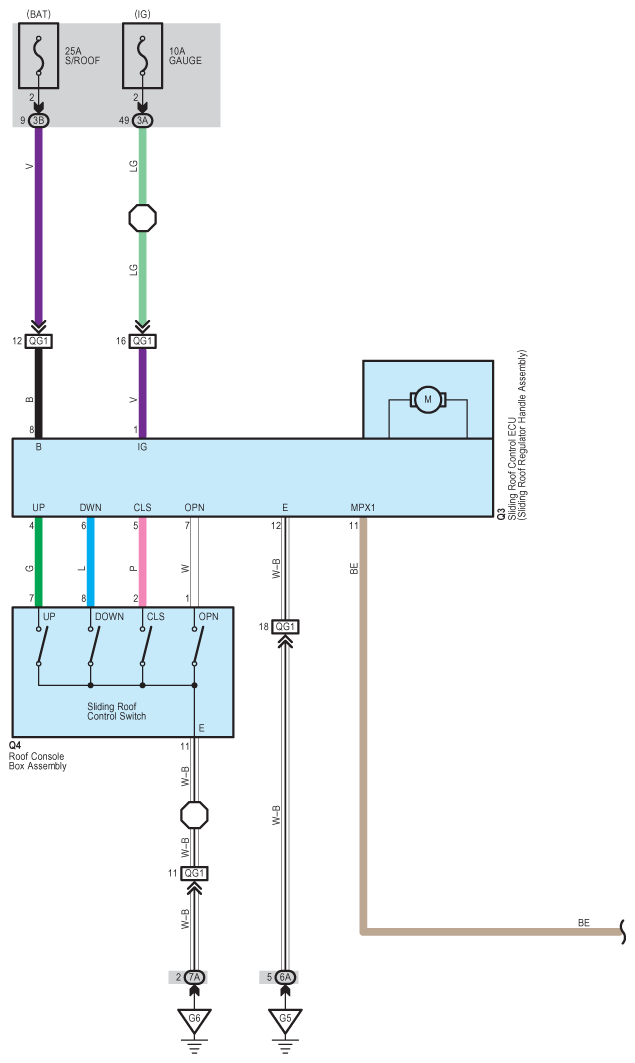

Fig 1: Sliding Roof Wiring Diagram (1 Of 3)
G09101158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

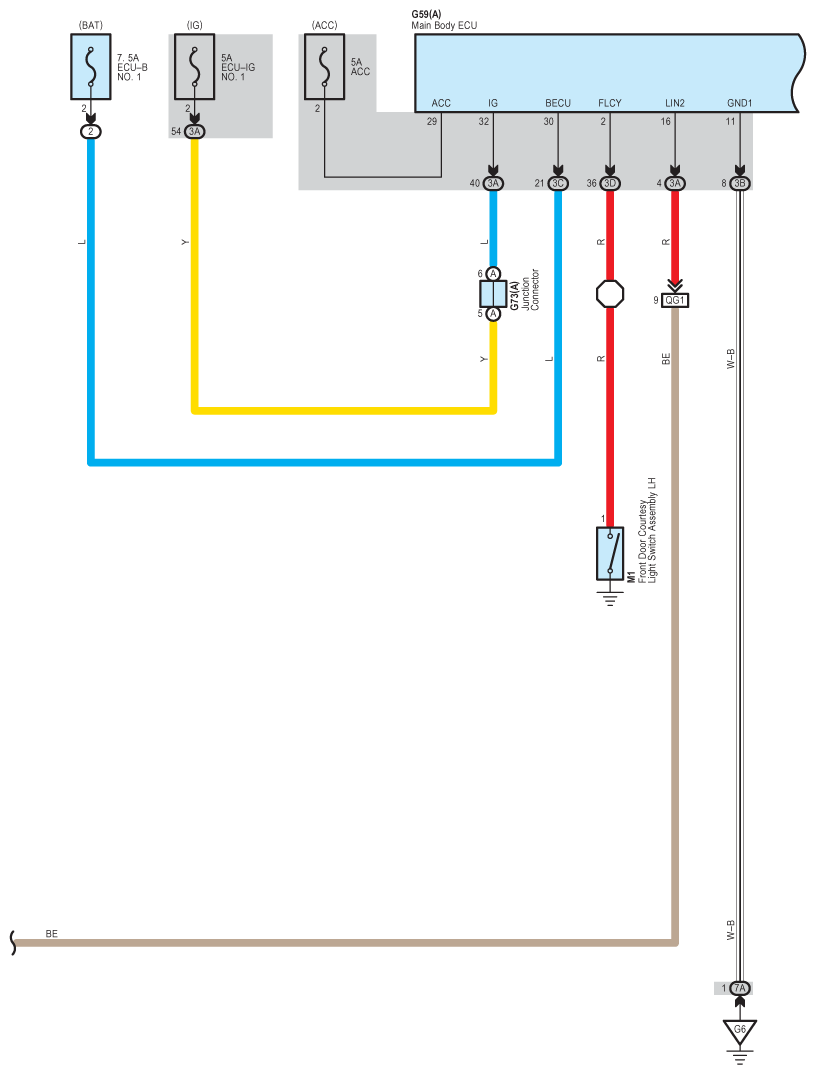

Fig 2: Sliding Roof Wiring Diagram (2 Of 3)
G09101159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

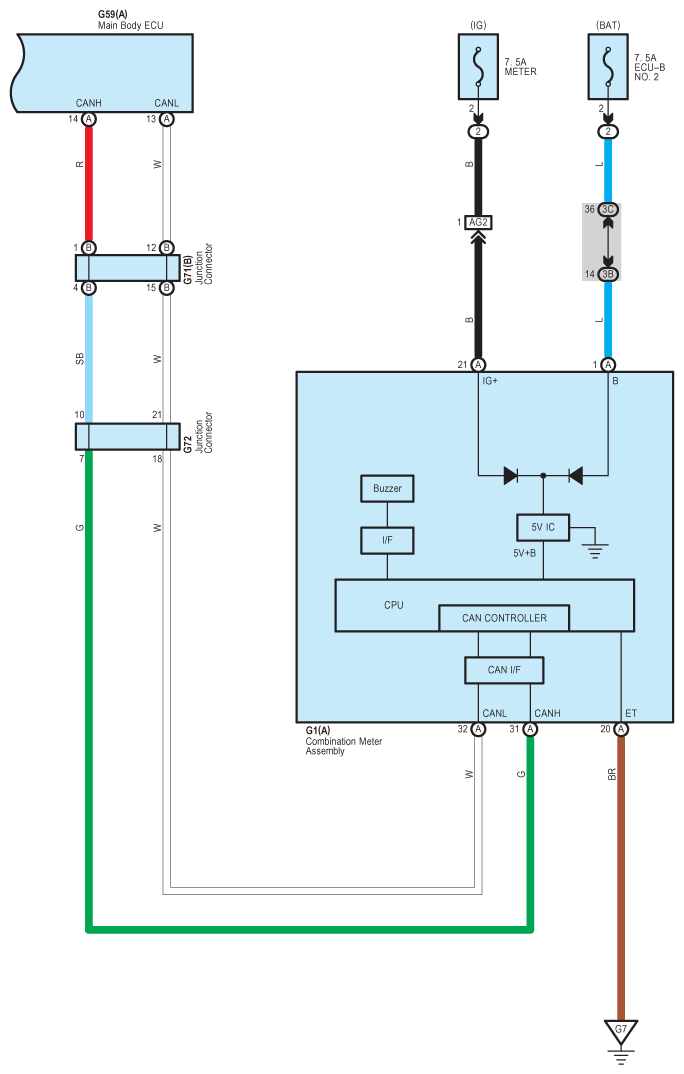

Fig 3: Sliding Roof Wiring Diagram (3 Of 3)
G09101160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
